- Page 1 C2-6104A Video Processor Quick Start Guide V1.00 QSG- C2-6104A-V1.00 May 2019...
-
Page 2: Table Of Contents
Quick start ....................5 The menu ....................6 Regulatory compliance ................13 Contact us ....................14 Thanks for buying this C2-6104A from tvONE™. The C2-6104A features four video processing and scaling engines, with video mixing, keying, fading, and source-labeling capabilities. -
Page 3: About Your C2-6104A

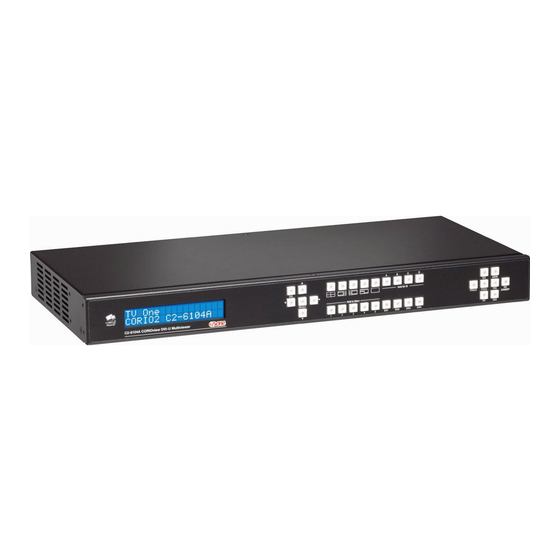

About your C2-6104A The front panel Use to navigate in the menu. SELECT Press SELECT to select options. Press and hold SELECT to save your current settings. Preset buttons. Press a preset button to load a preset window layout. - Page 4 If you don’t select an active window, the main image is a still image from the still image store, with window A as the picture-in-picture. SIZE Press to open > Adjust windows Shrink level Use Shrink level % to resize the window. tvONE...
- Page 5 Shortcuts to specific resolutions Press these buttons together to set the following resolutions: Buttons Output resolution 1 and A 720x480p @59.94 Hz 2 and A 1280x720p @59.94 Hz 3 and A The default resolution 1280x720p @60 Hz QSG- C2-6104A-V1.00...
- Page 6 INPUTS You can connect a range of DVI-I 1, DVI-I 2, DVI-I 3, DVI-I 4 sources with our adapters. Read more at tvONE.com. Connect to a source. The source can be another C2- BACKGROUND/CASCADE 6XXX unit. This input can only be displayed as the background image, window Z.
-
Page 7: Quick Start
2. Connect a display to the output port. The default output resolution is 1280x720p @60 Hz. For best results, make sure your display supports this. 3. Power on your C2-6104A. 4. Press the first preset button. Your sources show on your display. -
Page 8: The Menu
PAL or NTSC Back Y/U/V Allow HDMI output SC/H Phase This option is only available when you set the output resolution to PAL or NTSC Allow HDMI output Allow Errors Audio emb Exit Adjust Window to adjust windows Source tvONE... - Page 9 Details are at the back of this quick start guide. Image smoothing Image flip Show source label Max fade level % Layer priority ABCDZ Exit Adjust Window to adjust keyers Keyer enable Y Key min/max Y Key soft QSG- C2-6104A-V1.00...
- Page 10 1 to 4 size HDCP This option is only available when you select a source from 1 to 5 Display Emul This option is only available when you select a source from 1 to 5 tvONE...
- Page 11 This option is only available when you select a source from 1 to 5 De-Int Noise reduction Still image This option is only available if you select a Still Image Store (SIS) source to adjust Exit Adjust Transition Type transitions Transition Time Exit QSG- C2-6104A-V1.00...
- Page 12 Updating the firmware deletes all your other settings. Before you adjust a resolution, read The adjust resolutions menu in the user guide. Image to adjust Resolutions are saved in slots 1-60. Select a slot to overwrite the saved resolution. tvONE...
- Page 13 SW version SW date In +TL Frequency and total lines of the currently selected input TAC# PPF# Save power on settings LCD Backlight Autoset sense Serial Type For example, RS232 RS232 Baud rate Buzzer Resolutions Still images Power cycles QSG- C2-6104A-V1.00...
- Page 14 Firmware updates Hours in use Temp. C Fan speed Exit tvONE...
-
Page 15: Regulatory Compliance
Caution: This equipment is intended for use in the manner prescribed in the user guide. Any user changes or modifications not expressly approved by tvONE could void the user’s authority to operate the equipment. Connecting this equipment to external devices requires no specially shielded cabling for FCC compliance. -
Page 16: Contact Us
Copyright © 2019 tvONE™. All rights reserved. Registered in the U.S. Patent and Trademark Office. tvONE...
