- Page 1 C3-540 CORIOmaster™ C3-510 CORIOmaster mini™ C3-503 CORIOmaster micro™ CORIOgrapher™ V3.0 and above Quick Start Guide V3.0 Firmware version M410 and above QSG-C3-5xx-V3.0 Dec 2020...
-
Page 3: Table Of Contents
About the buttons of your CORIOmaster micro™ About CORIOgrapher™ Quick start Set up and test audio Contact us Video wall worksheet Get more help You can read more online. To open the online help, select Help in CORIOgrapher, or visit help.tvone.com/r/docs/cm/home/1. -
Page 4: Welcome
HTTP and HTTPS connectivity, RESTful multi-user control, WebSocket event monitoring Horizontal alignment on analog PC inputs Crestron module available CORIOmaster: 4RU frame size CORIOmaster mini: 1RU frame size CORIOmaster micro: 1RU half rack size, up to two video walls tvONE... -
Page 5: Hardware Recommendations
Hardware recommendations At tvONE, we design our products to the highest quality standards. To get the best results from our products, we recommend that you use the best quality connectors, cables, and adapters. Consider the points below when you choose accessories and position equipment. -

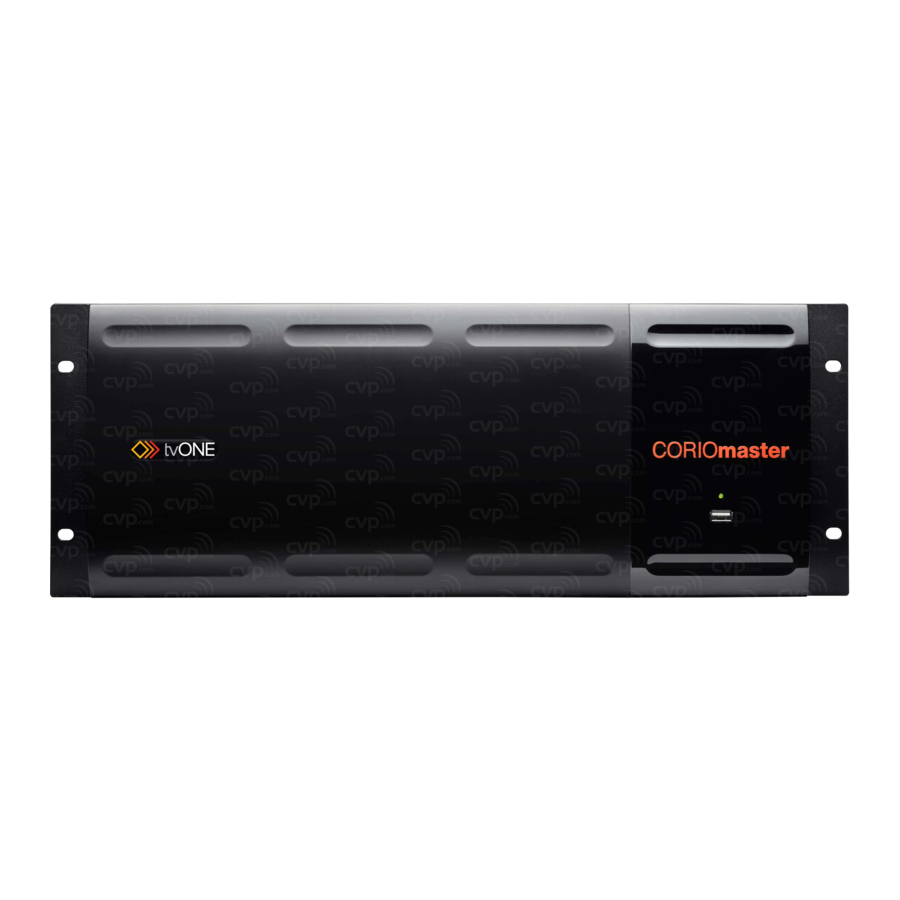

Page 6: About Your Coriomaster
Optional: connect to serial controller CPU module with RS-232 Optional: connect directly to a PC with Ethernet or RS-232 Optional second PSU, Optional: connect to electrical outlet sold separately Sealed slots Not available for use Power supply unit (PSU) Connect to electrical outlet tvONE... -
Page 7: About Your Coriomaster Mini
About your CORIOmaster mini™ This guide uses the name CORIOmaster to mean CORIOmaster™, CORIOmaster mini™, and CORIOmaster micro™ systems, unless specifically stated. CORIOmaster mini rear panel Power supply Connect to electrical outlet unit (PSU) Connect to your network with Ethernet Optional: connect to serial controller with RS- CPU module Optional: connect directly to a PC with Ethernet... -
Page 8: About Your Coriomaster Micro
Connect to an electrical outlet with PSU input Input module Connect to sources (black) Output module Connect to displays (white) Connect to your network with Ethernet Optional: connect to serial controller with RS- CPU module Optional: connect directly to a PC with Ethernet or RS-232 tvONE... -
Page 9: About The Buttons Of Your Coriomaster Micro
CORIOmaster micro mounting accessories You can mount your CORIOmaster micro to a surface, rack, or ONErack system with our mounting accessories, sold separately. Ask your distributor about: RM-503-1RK-MOD ONErack mounting module for CORIOmaster micro RM-503-1RU-DUAL rack mounting kit for one or two CORIOmaster micro units RM-503-SRF surface mounting kit for CORIOmaster micro About the buttons of your CORIOmaster... - Page 10 To select a preset or source, press and release the button corresponding to that preset or source. Changing between preset and source selection mode Press and hold buttons 1 and 5 until they start flashing. The buttons change color. tvONE...
-
Page 11: About Coriographer
About CORIOgrapher™ CORIOgrapher is the software that controls your CORIOmaster™. You can create up to four video installations, with multiple screens and windows, and add transitions and effects for a state-of-the-art dynamic video wall experience. CORIOgrapher system requirements CORIOgrapher: Works with PCs running Windows® 7 and 10 Does not work with touch-screen-only devices, including tablets or phones Works with Microsoft Surface Pros and similar touch screen devices... - Page 12 Dashboard CORIOview and CORIOmaster micro only. Standby puts your device into standby mode. Standby Help opens tvONE help for your product. Help Settings is where you configure your system, network, modules, and more. Settings tvONE...
-
Page 13: Quick Start
CORIOgrapher, select CORIOgrapher and search, or ask a question. Or visit help.tvone.com/r/docs/cm/home/1. 1. Plan your installation. What do you want your installation to look like? What equipment do you need to achieve this? At the back of this guide is a plan that you can fill out. - Page 14 Enter your username and password to log in, and select Read to load your configuration. The first time you log in, make sure the Secure option is cleared. The default username is admin, and the default password is adminpw. tvONE...
- Page 15 If you aren't connected to a CORIOmaster, you can create an offline configuration for your device. The media player of the Streaming media and 4K playback input module is not available when you work in an offline configuration. 5. Optional: enable secure mode. a.
- Page 16 Create a rough arrangement at this stage. When you have tested your video wall you can make your arrangement more accurate. 8. In the editor, add a window and scale it to cover the whole video wall. a. From Assets, open Sources. b. Choose a source and select tvONE...
- Page 17 For best results, choose a source connected to hardware that is easy to play, for example, a DVD player. Free windows can use any source, you can change the source playing in the window, and select the quality you want to use.
- Page 18 HDCP keys Poor quality or damaged cables Source correct, connected, and playing. Image appears in the wrong places. Possible causes: Displays arranged incorrectly in CORIOgrapher Output ports named incorrectly Displays connected incorrectly Source and displays connected and arranged correctly. tvONE...
- Page 19 To test any sources from Streaming media and 4K playback input modules, you need to add something to your play queues first. Read more in the Quick Start Guide that came with your module, or in tvONE Help. Read troubleshooting advice in tvONE help. In CORIOgrapher, select Help and search, or ask a question.
-
Page 20: Set Up And Test Audio
Slot Status, make sure Audio Enabled is selected for the source. If you cannot hear any sources, check the audio settings of the output devices. If your source is a stream with low latency, your CORIOmaster mutes the audio. tvONE... - Page 21 The Streaming media and 4K playback input module only supports the following embedded audio formats: Testing embedded audio outputs 1. From Editor, select Live changes. 2. If you have a CORIOmaster micro, mute the S/PDIF output. From Audio, select Mute Audio.
- Page 22 The Streaming media and 4K playback input module only supports the following embedded audio formats: Testing the S/PDIF output of a CORIOmaster micro 1. From Editor, select Displays & Windows. 2. Mute all the displays. Select to mute a display, and to unmute a display. tvONE...
- Page 23 If your source is a stream with low latency, CORIOmaster mutes the audio. The Streaming media and 4K playback input module only supports the following embedded audio formats: Read more about audio in tvONE Help. In CORIOgrapher, select Help search, or ask a question. Or visit help.tvone.com/r/docs/cm/home/1. QSG-C3-5xx-V3.0...
-
Page 24: Contact Us
Copyright © 2020 tvONE™. All rights reserved. -
Page 25: Video Wall Worksheet
Video wall worksheet What is my video wall layout? In the space above, draw a picture showing what kind of wall you have in mind. Show both the displays you have in mind as well as the video windows that you would like to show. What am I trying to accomplish with this video wall? How many displays or outputs are needed? How many monitors are needed? - Page 26 How many LED walls are needed? Is edge blending required? What is the blending overlap size? What are the sizes of the displays? What are the bezel sizes for the monitors? What are the native resolutions of the displays? tvONE...
- Page 27 How many source signals or inputs are required? What are the source signal types? What are the source resolutions? What are the frame rates of the inputs? Will the signal feeds be available at all times that the video wall is operating? Is there any switching or processing before the signal enters the video wall processor? How many windows will be required for the video wall? Include all windows...
- Page 28 Are presets (video switching, source transitions, window movement) required for the video wall? What type of control system will operate the wall, if any? tvONE...
- Page 29 In the spaces below, draw your preset destinations with window and transition attributes noted. QSG-C3-5xx-V3.0...
- Page 30 tvONE...
