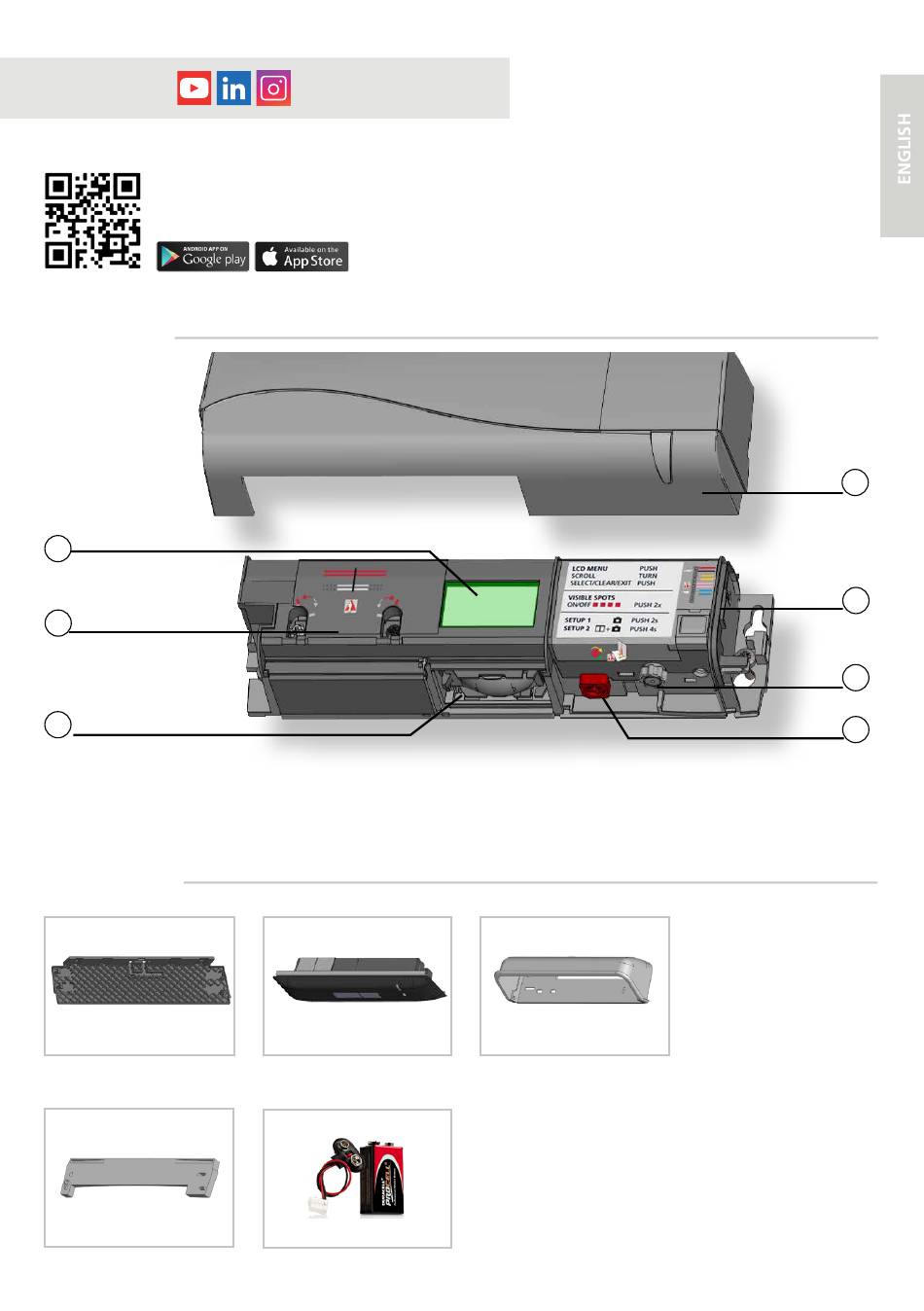

DESCRIPTION
1
2
3
ACCESSORIES
BA: Bracket accessory
CDA: Curved door accessory
1.
LCD
2.
IR-curtain width adjustment
3.
IR-lenses
CA: Ceiling accessory
9 V battery
IXIO-SO1 I
PRESENCE SENSOR
FOR AUTOMATIC INDUSTRIAL DOORS
User's Guide for software version 0600 and higher
(refer to tracking label on product)
4.
cover
5.
main connector
6.
main adjustment knob
7.
IR-curtain angle adjustment knob
RA: Rain accessory
4
5
6
7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IXIO-SO1 I and is the answer not in the manual?

Questions and answers

Related Manuals for BEA IXIO-SO1 I

Summary of Contents for BEA IXIO-SO1 I

  • Page 1 JOIN OUR IXIO-SO1 I COMMUNITY! PRESENCE SENSOR FOR AUTOMATIC INDUSTRIAL DOORS Download the BEA DECODER app for a quick overview of settings User’s Guide for software version 0600 and higher (refer to tracking label on product) DESCRIPTION cover IR-curtain width adjustment...

  • Page 2: Navigating In Menus

    HOW TO USE THE LCD? DISPLAY DURING NORMAL FUNCTIONING To adjust contrast, push and turn Negative display = active output Opening Presence the grey button simultaneously. impulse During normal function only. FACTORY VALUE VS. SAVED VALUE displayed value = saved value displayed value = factory value NAVIGATING IN MENUS Select your language before...

  • Page 3: Mounting And Wiring

    IXIO-SO1 I: INSTALLATION GUIDE MOUNTING & WIRING DOOR CONTROLLER POWER SUPPLY BLACK YELLOW OPENING YELLOW PINK PINK PRESENCE BLUE BLUE NOT USED * Depending on OUTPUT CONFIGURATION settings Mount the sensor securely. INFRARED PRESENCE FIELD DOOR CLOSER CLOSER max. 9 cm...
  • Page 4 SETTINGS Choose one of the following presettings or adjust the sensor manually (see p.5): STANDARD : standard in- and outdoor installations CRITICAL ENVIRONMENT : critical installations due to surroundings or weather SHOPPING STREET : installations in narrow streets with pedestrian traffic SETUP STEP OUT OF THE INFRARED FIELD! SETUP 1 (QUICK)

  • Page 5: Overview Of Settings

    OVERVIEW OF SETTINGS BASIC Back More factory values for IR immunity and IR number shopping critical increased immunity PRESETTINGS standard street env. increased immunity, 1 curtain ≥ 2,8 m < 2.8 m IR: IMMUNITY normal high higher highest normal high Sensors mounted close to each other should IR: FREQUENCY have a different frequency.

  • Page 6: Troubleshooting

    TROUBLESHOOTING The sensor signals ORANGE LED flashes 1 x. Replace sensor. an internal fault. The power supply is too Check power supply ORANGE LED flashes 2 x. (in the diagnostics menu of the LCD). low or too high. Check wiring. Decrease the angle of the IR-curtains.

  • Page 7: Installation

    LED-SIGNAL Presence detection LED flashes LED flashes LED flashes LED flashes LED is off red-green quickly x times INSTALLATION The sensor should be Do not cover the sensor. Avoid moving objects Avoid highly fixed firmly to avoid reflective objects in and light sources in extreme vibrations.

  • Page 8: Technical Specifications

    All values are measured in specific conditions and with a temperature of 25°C. BEA SA | LIEGE Science Park | Allée des Noisetiers, 5 - 4031 ANGLEUR [BELGIUM] | T +32 4 361 65 65 | F +32 4 361 28 58 | info-eu@beasensors.com | www.beasensors.com BEA hereby declares that this product is in conformity with the European directives : 2014/30/EU (EMC) and 2011/65/EU (RoHS).
