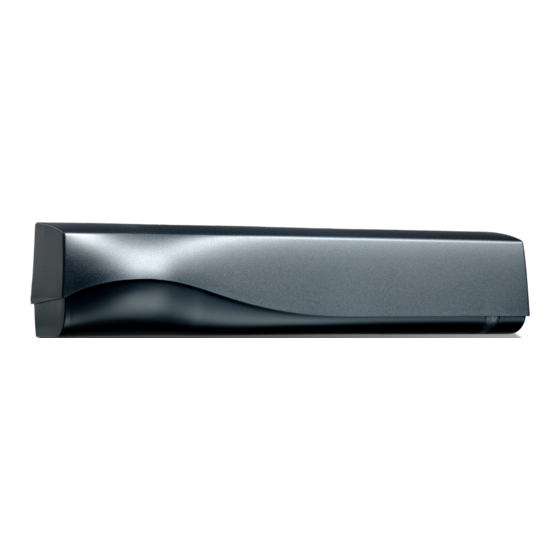

  • Page 3 IXIO-ST Safety sensor for automatic sliding doors (according to EN 16005 and DIN 18650) User’s Guide for product version 0100 and higher See product label for serial number DESCRIPTION cover AIR-curtain width adjustment main connector AIR-lenses main adjustment knob AIR-curtain angle adjustment knob ACCESSORIES BA: Bracket Accessory RA: Rain Accessory...
  • Page 4: Mounting And Wiring

    MOUNTING & WIRING GREEN 12-24 V POWER SUPPLY BROWN AC-DC YELLOW OPENING INPUT WHITE PINK GREY SAFETY INPUT TEST BLUE OUTPUT TIP! * Output status when sensor is operational ** For compliance with EN 16005 and DIN 18650, Wiring is compatible with the IRIS. connection to door controller test output is required.
  • Page 5: Quick Setup

    SETTINGS Adjust the sensor by LCD or remote control (see p. 4 and 5) or choose one of the presettings: STANDARD: inside installations CRITICAL ENVIRONMENT: critical or outside installations SHOPPING STREET: installations in narrow streets with pedestrian traffic SETUP ASSISTED SETUP = QUICK SETUP = OPEN+CLOSE IMPORTANT!
  • Page 6 HOW TO USE THE LCD? DISPLAY DURING NORMAL FUNCTIONING To adjust contrast, push and turn Negative display = active output Opening Safety the grey button simultaneously. impulse During normal function only. FACTORY VALUE VS. SAVED VALUE displayed value = factory value displayed value = saved value NAVIGATING IN MENUS Select your language before entering...
  • Page 7: Overview Of Settings

    OVERVIEW OF SETTINGS Back More factory values shopping critical increased immunity PRESETTINGS standard street env. increased immunitiy + 1 curtain high normal normal high For conformity to EN 16005 and DIN 18650 at a mounting height AIR: IMMUNITY* of 2.8 m or more, values 2 and 3 are not allowed. <...
  • Page 8: Troubleshooting

    TROUBLESHOOTING The sensor signals The ORANGE LED Cut and restore power supply. an internal fault. flashes 1 x. If orange LED flashes again, replace sensor. Check power supply The ORANGE LED The power supply is too (in the diagnostics menu of the LCD). flashes 2 x.
  • Page 9: Installation

    INSTALLATION Avoid extreme Do not cover the sensor. Avoid moving objects Avoid highly vibrations. and light sources in reflective objects in the infrared field. the detection field. MAINTENANCE It is recommended to clean Do not use aggressive the optical parts at least once products to clean a year or more if required due the optical parts.
  • Page 10: Technical Specifications

    All values measured in specific conditions. BEA SA | LIEGE Science Park | ALLÉE DES NOISETIERS 5 - 4031 ANGLEUR [BELGIUM] | T +32 4 361 65 65 | F +32 4 361 28 58 | INFO@BEA.BE | WWW.BEA.BE BEA hereby declares that the IXIO-ST is in conformity with the basic requirements and the other relevant provisions of the directives 2004/108/EC and 2006/42/EC.
