BEA IXIO Series Quick Manual

BEA IXIO Series Quick Manual

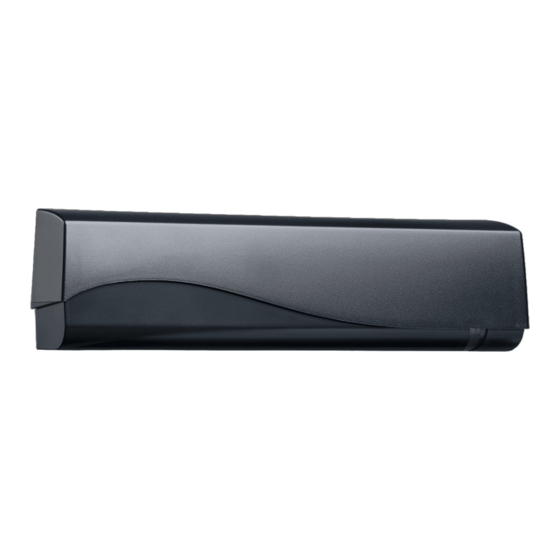

Activation and safety sensors for automatic sliding doors

Advertisement

Quick Links

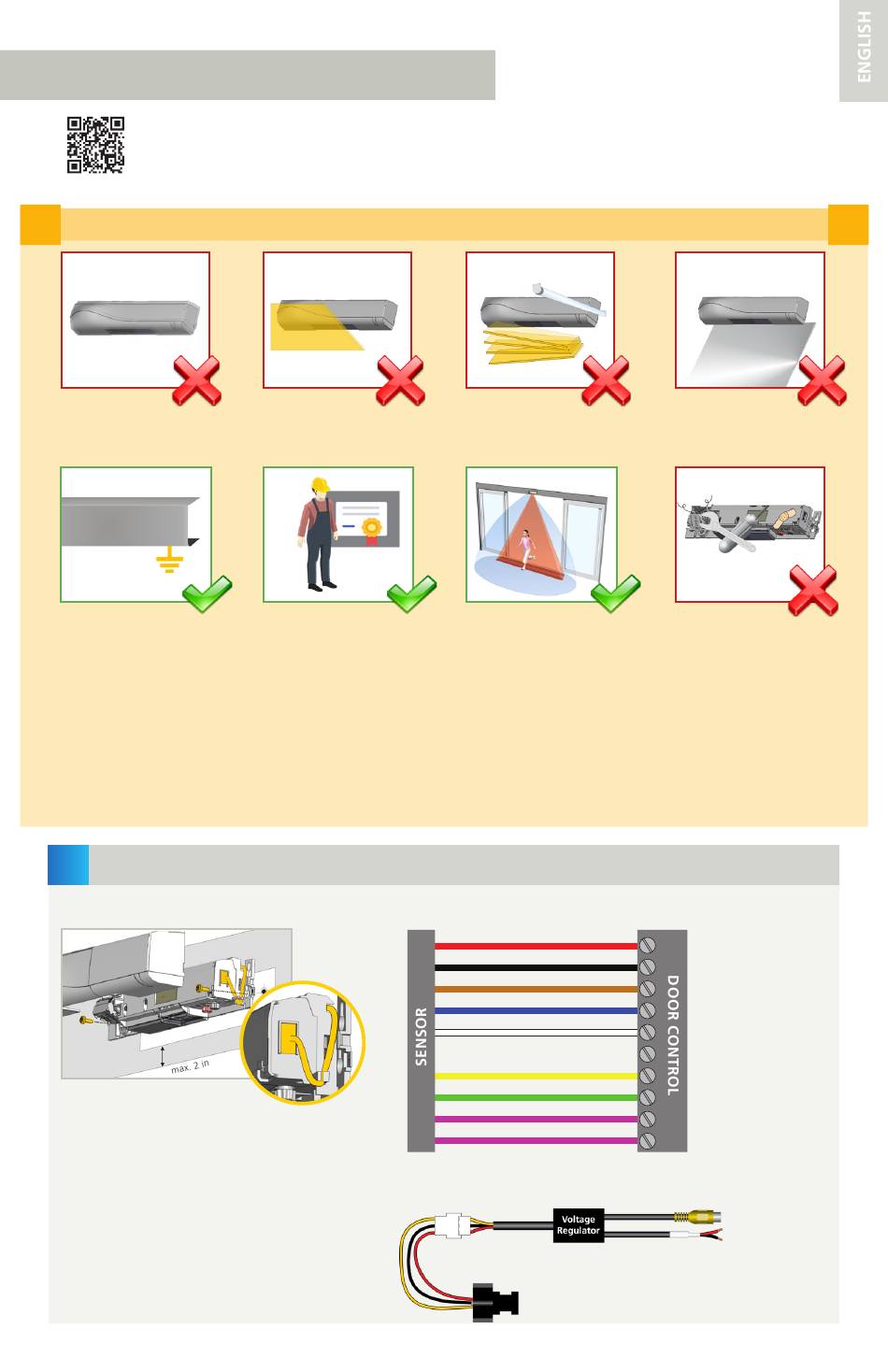

QUICK GUIDE
Refer to the User's Guide
for full instructions.
!
READ BEFORE BEGINNING INSTALLATION & SETUP
The sensor should be
mounted securely to
avoid extreme vibrations.
The door control unit
and the header cover
profile must be correctly
grounded.
This device can be expected to comply with Part 15 of the FCC Rules, provided it is assembled in
exact accordance with the instructions provided with this kit. Operation is subject to the following
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
1
MOUNTING & WIRING
Refer to Application Note 76.0035 if an IXIO Spacer is required for the given application.
Sensor connectivity (power and relays) must utilize only
the supplied harness.
Sensor power must be supplied from a Class 2 supply
source limited to 15 W.
Sensor is intended to be monitored for proper
operation by the door operator or system.
Harness shall be routed separated from any Mains or
non-Class 2 voltage cable for correct operation or shall
be rated for the Mains voltage, and suitable protection
and routing means shall be used according to National
and Local Codes to prevent damage to the harness
and/or IXIO sensor.
75.5961.05 IXIO FAMILY QG 20230410
Do not cover the sensor.
Only trained and
qualified personnel
are recommended for
installation and setup of the
sensor.
CAMERA HARNESS FOR DT1 V
IXIO FAMILY
Avoid moving objects
and light sources in the
detection field.
Following installation,
always test for proper
operation (according to
ANSI 156.10) before leaving
the premises.
RED
POWER SUPPLY
BLACK
POWER SUPPLY
BROWN
SAFETY INPUT
BLUE
SAFETY INPUT
WHITE (COM)
OPENING INPUT
YELLOW (N.C)
OPENING INPUT
GREEN (N.O.)
OPENING INPUT
PURPLE
TEST OUTPUT*
PURPLE
TEST OUTPUT*
Activation and safety sensors
for automatic sliding doors
Avoid highly reflective
objects in the infrared
field.
The warranty is invalid if
unauthorized repairs are
made or attempted by
unauthorized personnel.
POWER
12 – 24 VAC/VDC
12 – 30 VDC
2.5 W (max)
TEST
low: < 1 V
high: > 10 V (30 V max.)
response time: typ. < 5 ms
RCA VIDEO OUT ♀
POWER
(12 – 24 VAC/VDC)
!
Page 1 of 4
