BEA IXIO-DO1 I User Manual

Opening & safety sensor for automatic industrial doors
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Download the BEA DECODER app
for a quick overview
of settings

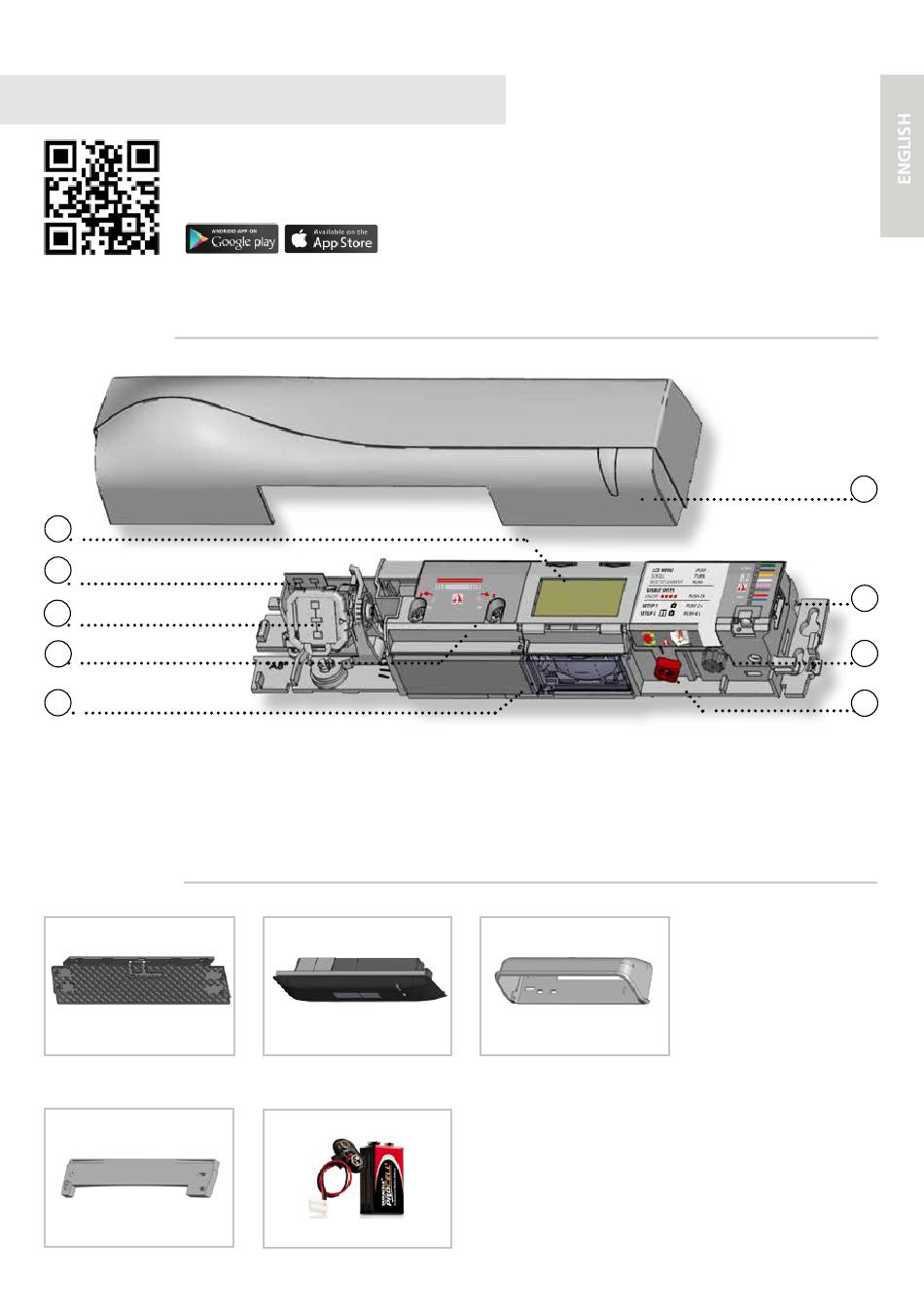

DESCRIPTION
1
2
3
4
5
ACCESSORIES
BA: Bracket accessory
CDA: Curved door accessory
1.
LCD
2.
radar antenna (narrow field)
3.
radar antenna (wide field)
4.
IR-curtain width adjustment
5.
IR-lenses
CA: Ceiling accessory
9 V battery
IXIO-DO1 I
Opening & safety sensor
for automatic industrial doors
User's Guide for product version 0403 and higher
See product label for serial number
6.
cover
7.
main connector
8.
main adjustment knob
9.
IR-curtain angle adjustment knob
RA: Rain accessory
6
7
8
9

Advertisement

Table of Contents
loading

Related Manuals for BEA IXIO-DO1 I

Summary of Contents for BEA IXIO-DO1 I

  • Page 1 IXIO-DO1 I Opening & safety sensor Download the BEA DECODER app for a quick overview for automatic industrial doors of settings User’s Guide for product version 0403 and higher See product label for serial number DESCRIPTION cover radar antenna (narrow field)

  • Page 2: Navigating In Menus

    HOW TO USE THE LCD? DISPLAY DURING NORMAL FUNCTIONING To adjust contrast, push and turn Negative display = active output Opening Safety the grey button simultaneously. impulse During normal function only. FACTORY VALUE VS. SAVED VALUE displayed value = saved value displayed value = factory value NAVIGATING IN MENUS Select your language before...

  • Page 3: Mounting And Wiring

    IXIO-DO1 I: INSTALLATION GUIDE MOUNTING & WIRING GREEN 12-24 V POWER SUPPLY BROWN AC-DC YELLOW OPENING INPUT WHITE PINK GREY SAFETY INPUT NOT USED BLUE * Output status when sensor is operational Fixation is compatible with the ACTIV8. RADAR OPENING IMPULSE FIELD...
  • Page 4 INFRARED SAFETY FIELD DOOR CLOSER max. 9 cm AWAY If necessary, adjust the IR-curtain Activate the visible* spots to verify angle (from -7° to 4°, default 0°). the position of the IR-curtain. * Visibility depends on external conditions. When spots are not visible, use the Spotfinder to locate the curtains. Additional adjustments are possible by...

  • Page 5: Overview Of Settings

    OVERVIEW OF SETTINGS Back More factory values for radar immunity, IR immunity, IR number and redirection shopping critical increased immunities, 1 curtain PRESETTINGS standard street env. increased immunities, redirection = motion and presence RAD: FIELDSIZE small > > > > >...

  • Page 6: Troubleshooting

    TROUBLESHOOTING The sensor signals ORANGE LED flashes 1 x. Replace sensor. an internal fault. The power supply is too Check power supply ORANGE LED flashes 2 x. (in the diagnostics menu of the LCD). low or too high. Check wiring. Decrease the angle of the IR-curtains.

  • Page 7: Installation

    LED-SIGNAL Presence Motion detection detection LED flashes LED flashes LED flashes LED flashes LED is off red-green quickly x times INSTALLATION The sensor should be Do not cover the sensor. Avoid moving objects Avoid highly fixed firmly to avoid reflective objects in and light sources in extreme vibrations.

  • Page 8: Technical Specifications

    All values are measured in specific conditions and with a temperature of 25°C. BEA SA | LIEGE Science Park | ALLÉE DES NOISETIERS 5 - 4031 ANGLEUR [BELGIUM] | T +32 4 361 65 65 | F +32 4 361 28 58 | INFO@BEA.BE | WWW.BEA-SENSORS.COM BEA hereby declares that the IXIO-DO1 I is in conformity with the basic requirements and the other relevant provisions of the directives 2014/53/EU and 2011/65/EU.
