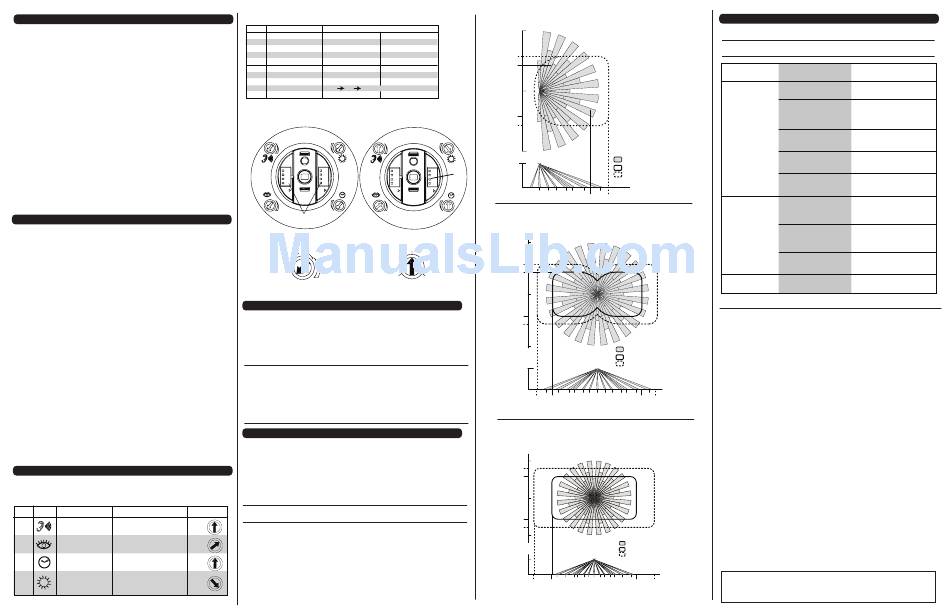

OPERATION
The descriptions below refer to a system which has been configured to turn the lights
on when a room or area is occupied, and turn them off when the room or area is
vacated.
• Dual-Tech Mode. This is the default mode of operation for the sensor. Passive
infrared technology (PIR) turns lights on in this mode; however, motion detection by
either technology (PIR or ultrasonic) will keep the lights on. If neither technology
detects motion, the lights turn off after the delayed-off time.
• Single-Tech Mode. Only one technology is active in this mode. The technology is
selected by the dip switches. Motion detection by the selected technology - PIR or
ultrasonic - will turn on the lights as well as keep them on. When motion is not
detected, the lights will turn off after the delayed-off time.
• Delayed-Off Time. The sensor is designed to turn the lights off if no motion is
detected after a specified time. This length of time is called the delayed-off time and
is set using the timer (black) knob on the sensor. The adapting patterns will modify
the delayed-off time to fit the parameters of each installation based on environmen-
tal conditions and occupancy patterns.
• Walk-through Mode. The walk-through feature is useful when a room is momen-
tarily occupied. With this feature, the sensor will turn the lights off shortly after the
person leaves the room.
The walk-through feature works as follows: When a person enters the room, the
lights will turn on. If the person leaves the room before the walk-through time-out of
2.5 minutes, the sensor will turn the lights off. If the person stays in the room for
longer than 2.5 minutes, the sensor will proceed to the Occupied mode.
• LED Operation. There are two LED indicators that will flash when motion is
detected. The LED flash can be disabled using the LED disable switch setting.
Green flashes indicate motion detection by ultrasonic technology. Red flashes
indicate motion detection by infrared technology.
ADAPTIVE FUNCTIONS
The sensor continually analyzes the parameters of the motion detection signal and
adjusts its internal operation to maximize detection of motion while minimizing the
effects of noise (electrical noise, air currents, temperature changes, etc.).
Operation
When the lights turn on, the sensor initially begins the Walk-through mode. Once the
room is occupied for longer than 2.5 minutes, the sensor ends the Walk-through mode
and begins the Occupied mode. When the sensor is first installed, the delayed-off time
for the Occupied mode is based on the time adjustment settings. While the sensor is in
use, the delayed-off time will change, based on how the sensor adapts to the room
conditions. Whenever the sensor subsequently turns on, the value of the delayed-off
time will be the adapted value (refer to Occupancy Pattern Learning For Delayed Off
Time).
The adapted settings can be reset using the DIP switch.
Occupancy Pattern Learning For Delayed Off Time
The sensor will automatically change the delayed off time in response to the occupancy
and environmental conditions of the space where it is installed. The sensor analyzes the
motion signal properties and will minimize the delayed off time duration when there is
frequent motion detection, and lengthen the delayed off time duration when there is
weak and infrequent motion detection.
In the case of a false-off condition (lights turn off when the room is occupied), the
delayed off time duration will immediately be lengthened to prevent further false turn offs.
Occupancy Pattern Learning for Ultrasonic Technology
The sensor learns the occupancy patterns of a space during the course of a day, for a
seven day period. At any given time, the sensor will look at the collected data and adjust
its ultrasonic sensitivity. The sensor will adjust the sensitivity to make it less likely to turn
on during a period of non-occupancy and more likely to turn on during a period of
occupancy. This adapting feature is not applicable when the sensor is using PIR
functions only.
ADJUSTMENT KNOB AND SWITCH SETTINGS
The two tables (below and in the next column) and the "Minimum and Default Settings"
illustration define the settings of the adjustment knobs and the DIP switches.
Adjustment Knob Settings
KNOB
COLOR SYMBOL FUNCTION KNOB SETTING
.
Range setting
Sets the ultrasonic range Full CCW = min. (OFF)
Green 50%
Full CW = max.
Range setting
Sets the infrared range Full CCW = min. (OFF)
Red 75%
Full CW = max.
Full CCW = min. (30 sec.)
Black Delayed- Off Time
Full CW = max. (30 min.)
(10 min)
Full CCW – Lights stay OFF
Ambient Light Override Full CW – Lights always turn ON
Blue 100%
(Gray wire only) (NO ambient light override)
Range– 100-3000 LUX
DIP Switch Settings
SWITCH SWITCH FUNCTIONS SWITCH SETTINGS
Bank A OFF
A1 Single/Dual-Tech Mode Dual-Tech
*
A2 PIR/Ultrasonic Mode PIR
A3 Manual Mode Auto Adapting Enabled
A4 Walk-Through Disable Walk-Through Enabled
Bank B
B1 Override to ON Auto Mode
Override to OFF Auto Mode
B2
B3 Test Mode OFF ON OFF
B4 LEDs Disable LEDs Enabled
*
This setting is only used if the Single Technology Option (Switch A1) is selected.
Minimum and Default Settings
A B
1 1
ON ON
DIP Switches
Minimum Setting
MIN MAX
Adjust Knob Rotation Direction Delayed Off Time Selection (Black Knob)
TEST MODE
Set the delayed-off time to six seconds for performing a walk test. While the sensor is
in Test mode, the LEDs will flash amber once a second.
1. ENSURE POWER IS ON.
2. Remove front cover.
3. Locate Dip Switch 3 in Bank B (B3). B3 will be in the OFF position from the factory.
4. To start Test mode, move switch to ON and back to OFF. The Test mode has now
been initiated with a six second time-out. (Refer to the DIP Switch Settings table.)
NOTE: If B3 is already in the ON position, then Test mode can be entered by just moving it
to the OFF position.
NOTE: The timer will remain in the six second Test mode for 15 minutes, then automatically
exit Test mode and reset to the delayed-off time setting as defined by the black timer knob.
NOTE: To manually take the timer out of the six second Test mode, simply toggle the switch
B3 from OFF to ON and back to OFF.
PHOTOCELL (AMBIENT LIGHT OVERRIDE) ADJUSTMENT
In order to use the ambient light override functionality of the sensor, the sensor must be
wired to the GLS-SIM (or other compatible interface) using the gray wire instead of the blue
wire. This feature allows the user to conserve energy by keeping the controlled lights off
when not necessary. The sensor does this by measuring the amount of ambient light in the
installed area and keeping the controlled lights off if there is enough ambient light
available. To use this feature, the photocell adjustment (blue) knob must be adjusted from
the default position. Once this adjustment is made, the controlled lights will only turn on if
the ambient light present is less than the setting.
To set the Photocell level (used with the gray wire connection):
DEFAULT NOTE: This setting must be performed when the natural light is low enough to require
SETTING
artificial light.
1. Remove the cover from the sensor.
2. Make note of the position of the red and green knobs. Rotate the red and green
knobs fully CCW and enter the sensor's Test mode as described above.
3. Rotate the blue knob fully CCW.
4. Wait for the lights to turn OFF.
50%
5. Rotate the red knob fully CW.
6. Slowly rotate the blue knob clockwise until the lights turn ON. This is the correct
setting.
7. Return the red and green knobs to their original positions
8. Replace the cover. Photocell level setting is complete.
Field-of-View Ranges - GLS-ODT-C-500
TOP VIEW
20
ON
Single Tech
Ultrasonic
Auto Adapting Disabled
11.5
Walk-Through Disabled
8.5
Lights Forced ON
Lights Forced OFF
= Enter/Exit Test Mode
0
LEDs Disabled
8.5
11.5
20
A B
SIDE VIEW
8
1 1
B3
0
ON ON
0 3 5.6
Field-of-View Ranges - GLS-ODT-C-1000
Factory Default Setting
20
10 min
5 min 20 min
11.5
8.5
30 sec 30 min
0
8.5
11.5
20
8
0
20 15
2 3 17
Field-of-View Ranges - GLS-ODT-C-2000
20
16
11.5
0
11.5
16
20
8
0 2
32 2 2 5 .
TROUBLESHOOTING
The following table provides corrective action for possible trouble situations. If further
assistance is required, please contact a Crestron customer service representative.
NOTE: Operation is ultimately determined by the control system program, and that must
be considered when troubleshooting.
TROUBLE
Lights do not turn ON.
Major Motion, IR
Minor Motion, Ultrasonic
Major Motion, Ultrasonic
9 11 15 20
17 23
Lights stay ON.
TOP VIEW
Lights remain ON too
long.
Return and Warranty Policies
Merchandise Returns / Repair Service
Major Motion, IR
Minor Motion, Ultrasonic
SIDE VIEW Major Motion, Ultrasonic
11 9 5.6 3 0 3 5.6 9 11 15 20
1 7 23
