Crestron GLS-LOL
(Watt Stopper P/N LS-290C)
Crestron Green Light
Operations & Installation Guide
Further Inquiries
If you cannot locate specific information or have questions after reviewing this guide, please take advantage of
Crestron's award winning customer service team by calling Crestron at 1-888-CRESTRON [1-888-273-7876]. For
assistance in your region, please refer to the Crestron Web site (www.crestron.com) for a listing of Crestron
worldwide offices.
You can also log onto the online help section of the Crestron Web site (www.crestron.com/onlinehelp) to ask
questions about Crestron products. First-time users will need to establish a user account to fully benefit from all
available features.
Future Updates
As Crestron improves functions, adds new features and extends the capabilities of the GLS-LOL units, additional
information may be made available as manual updates. These updates are solely electronic and serve as
intermediary supplements prior to the release of a complete technical documentation revision.
Check the Crestron Web site periodically for manual update availability and its relevance. Updates are identified as
an "Addendum" in the Download column.
WARNING: To avoid fire, shock, or death; turn off power at circuit breaker or fuse and test that power is off before
wiring!
CAUTION: Insufficient power can lead to unpredictable results or damage to the equipment. Please use the
Crestron Power Calculator to help calculate how much power is needed for the system
(www.crestron.com/calculators).
NOTES: Observe the following:
•
To be installed and/or used in accordance with appropriate electrical codes and regulations.
•
If you are unsure about any part of these instructions, consult a qualified electrician.
•
Sensors must be mounted on a vibration free surface. at least 6 feet (1.8 m) away from air vents.
Crestron Electronics, Inc.
15 Volvo Drive Rockleigh, NJ 07647
Tel: 888.CRESTRON
Fax: 201.767.7576
www.crestron.com
This product is Listed to applicable
UL Standards and requirements by
Underwriters Laboratories Inc.
FCC Compliance Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.
SETUP
Network Wiring
®
When wiring the Cresnet
network, consider the following:
•
Use Crestron Certified Wire.
• Use Crestron power supplies for Crestron equipment.
•
Provide sufficient power to the system.
Preparing and Connecting Wires
Strip the ends of the wires approximately 1/2 inch (13 mm). Use care to avoid nicking the
conductors. Twist together the ends of the wires that share a connection and tin the
twisted connection. Apply solder only to the ends of the twisted wires. Avoid tinning too
far up the wires or the end becomes brittle. The label on the rear of the dimmer contains
a gauge for wire stripping.
Light Level Testing
Before installing the photocell, verify the daylight levels on a sunny day at the proposed
location of the photocell. With the lights switched off, use a light meter to read the daylight
level. Orient the light meter in the same direction the photocell will view. The light levels
under sunny conditions must be at least 35 fc. If the light levels are less, you should select
another location or reorient the photocell
®
Photocell, Open Loop
Operations & Installation Guide - DOC. 6774D
Specifications subject to
change without notice.
.
DESCRIPTION

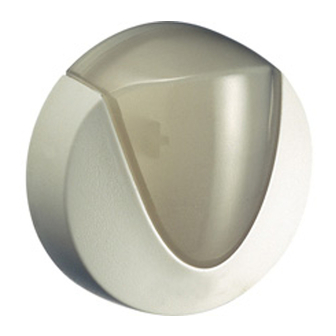

The GLS-LOL is a low voltage photocell which senses light levels and sends this data to
an interface device such as the GLS-SIM (sold seperately) connected to the Crestron
control system.
Specifications
Specifications for the GLS-LOL are listed in the following table.
SPECIFICATION
UL and cUL Listed
Power Requirements
Current Consumption
Cresnet Power Usage
Output
Signal Range:
Light Level Range:
Recommended Mounting Location
Field of View Coverage
* Cresnet communications require GLS-SIM Sensor Integration Module (sold separately). Power may
be taken from Cresnet bus regardless of interface method.
Photocell Placement
The photocell is designed for mounting in a dry location that is exposed to daylight. The
photocell should not be exposed to direct illumination from an electric light source. The
following illustration shows the GLS-LOL field of view.
GLS-LOL Field of View and Mounting
Ceiling tile or drywall
60º field of view
30º
Peak Sensitivity
Where windows are the primary source of daylight, the photocell typically mounts on the
ceiling between the window and the first row of fixtures. (Refer to the following illustration.)
The photocell points toward the window.
GLS-LOL Placement
(2023057)
08.11
For skylight applications, the photocell mounts in the lightwell of the skylight and should be
oriented toward the incoming daylight. Typically, the photocell is aimed toward the skylight.
The light level range adjustment jumper may need to be changed to 60-6000 fc for skylight
applications.
INSTALLATION
Wiring and Testing
NOTE:
Use CRESNET-P/-NP cables only. Maximum distance is 250 feet (76 m).
1. To access the GLS-LOL wiring terminals, insert a small, flat blade screwdriver into a slot
on the housing and separate the base from the lens assembly.
2. Review the "Mounting" section on the next page to determine how the cable to the
controller will enter the photocell housing. Modify either the lens housing or the base as
instructed in step 2A or 2B.
3. Connect wiring to the control system as shown in the illustrations on the following page.
(If flush mounting, feed the cable through the base before terminating.)
4. Make sure the footcandle range jumper is in the correct position for the expected light
level. (Refer to "Range Adjustment" on the following page.)
5. Attach the base to the lens assembly.
A. Align the arrow and sun icon inside the base with the lens.
B. Use gentle pressure to snap the parts together.
6. Turn on the control sytem. Verify the photocell wiring by reading the control system
display. As you cover and uncover the photocell, the reading should change. The
control system reading shows the minimum value of the programmed range if the light
level is below the range, or if the photocell is not properly connected.
DETAILS
Class 2
4 mA @ 24 VDC
1 Watt*
0 - 10 VDC
Selectable, 3 to 300 footcandles (fc),
30 to 3000 fc, 60 to 6000 fc
Directly above work space
60° Cone
2.0 in.
Cable to GLS-SIM or other
(51 mm)
compatible Crestron interface
device.
1.2 in.
45º
(31 mm)
GLS-LOL
30º
GLS-LOL
45°
Peak
Light Fixture
Sensitivity
Window
®
