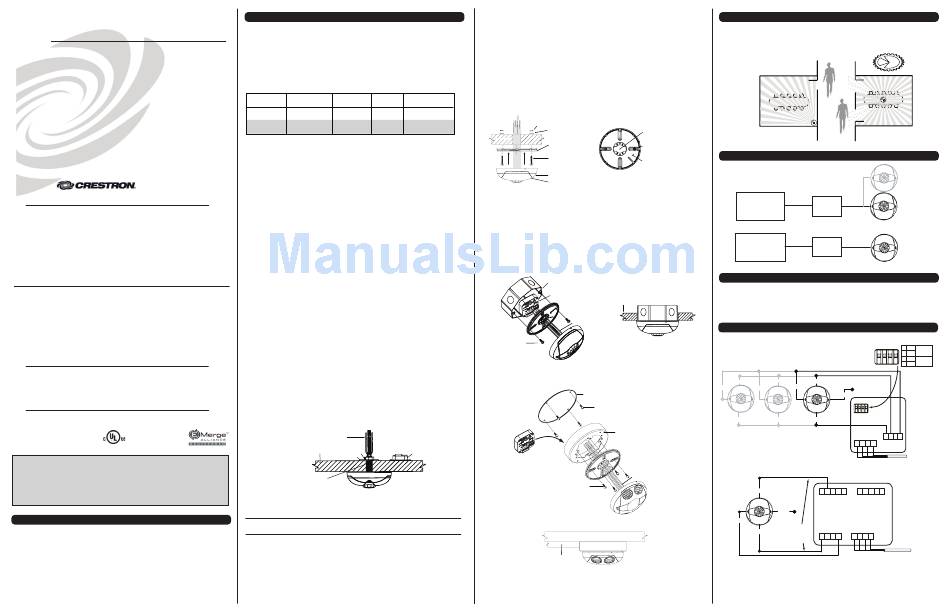

Crestron GLS-OIR-C-450/1500 Operations & Installation Manual

Crestron GLS-OIR-C-450/1500
Infrared Ceiling Mounted
Occupancy Sensor
Operations & Installation Guide
Further Inquiries
If you cannot locate specific information or have questions after reviewing this guide, please take advantage of
Crestron's award winning customer service team by calling Crestron at 1-888-CRESTRON [1-888-273-7876]. For
assistance in your region, please refer to the Crestron Web site (www.crestron.com) for a listing of Crestron
worldwide offices.
You can also log onto the online help section of the Crestron Web site (www.crestron.com/onlinehelp) to ask
questions about Crestron products. First-time users will need to establish a user account to fully benefit from all
available features.
Future Updates
As Crestron improves functions, adds new features and extends the capabilities of the GLS-OIR units, additional
information may be made available as manual updates. These updates are solely electronic and serve as
intermediary supplements prior to the release of a complete technical documentation revision. Check the Crestron
Web site periodically for manual update availability and its relevance. Updates are identified as an "Addendum" in
the Download column.
WARNINGS, CAUTIONS & NOTES
WARNING: To avoid fire, shock, or death; turn off power at circuit breaker or fuse and test that power is off before
wiring!
CAUTION: Insufficient power can lead to unpredictable results or damage to the equipment. Please use the
Crestron Power Calculator to help calculate how much power is needed for the system
(www.crestron.com/calculators).
NOTES: Observe the following points.
• To be installed and/or used in accordance with appropriate electrical codes and regulations.
• If you are unsure about any part of these instructions, consult a qualified electrician.
• Sensors must be mounted on a vibration free surface.
• All sensors must be mounted at least 6 feet (1.8 m) away from air vents.
• Do not mount sensors closer than 10 feet (3 m) from each other.
• Do not touch the inner surface of the lens. Clean outer surface with a damp cloth only.
Crestron Electronics, Inc. Operations & Installation Guide - DOC. 6770C
15 Volvo Drive Rockleigh, NJ 07647
Tel: 888.CRESTRON
Fax: 201.767.7576 Specifications subject to
www.crestron.com change without notice.
This product is Listed to applicable
UL Standards and requirements by
Underwriters Laboratories Inc.
FCC Compliance Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may
cause undesired operation.
SETUP
Network Wiring
When wiring the Cresnet ® network, consider the following:
• Use Crestron Certified Wire.
• Use Crestron power supplies for Crestron equipment.
• Provide sufficient power to the system.
Preparing and Connecting Wires
Strip the ends of the wires approximately 1/2 inch (13 mm). Use care to avoid nicking the
conductors. Twist together the ends of the wires that share a connection and tin the
twisted connection. Apply solder only to the ends of the twisted wires. Avoid tinning too
far up the wires or the end becomes brittle. The label on the rear of the dimmer contains
a gauge for wire stripping.
DESCRIPTION
The Occupancy Sensor is a low-voltage infrared sensor that works with the
other compatible interface) to automatically control lighting. The exact behavior of the sensor
can be configured via software, but the sensor is typically used to turn lights on when a room
or area is occupied, and to shut them off when the room or area is vacated. The sensor
continually analyzes and adjusts to changing conditions. The sensor uses the latest
microprocessor-based technology which permits it to continually adjust and optimize its
performance. Infrared motion detection gives higher false triggering immunity that yields a
sensor with excellent performance.
Model/Feature Basics
Current
Model No. Description
Consumption Coverage
450 sq. ft
GLS-OIR-C-450 High Density 20mA
(42 sq. m)
1500 sq. ft.
GLS-OIR-C-1500 Extended Range 20mA
(140 sq. m)
INSTALLATION INSTRUCTIONS
These instructions include three typical installation options (A, B, and C). Choose one that
best suits your needs. Other methods may be possible but they are not described here.
Parts Supplied
Sensor (1) Threaded Rod (1) and Hex nut (1)
#8-32 x 1/2 inch screw (2) Half Mask (1)
#8-32 x 1-1/2 inch screw (2) 360º Perforated Mask (1)
#8x32 Washer and Nut (2) Plastic Washer (1)
Tools/Equipment Required (not supplied)
Slotted/Phillips Screwdriver Electrical Tape
Pliers Pencil
Diagonal Cutters
Option A. Drop Ceiling Installation Using Supplied Threaded Rod
1. Select the location for mounting the sensor and proper masking for your
application. (Refer to Mounting/Masking Location Diagram).
2. Use the supplied threaded rod or other means to make a hole (1/2 to 1 inch [13 to
26 mm]) in the ceiling tile just large enough to pass the shaft of the threaded rod
through.
3. Insert the sensor wires through the flared end of the threaded rod. Position the
threaded rod to the base of the sensor.
4. Insert the flared end of the threaded rod into the opening in the bottom of the
sensor and twist to lock into place.
5. Push the wires into the hole in the ceiling tile and insert the threaded rod until the
sensor is flush with the tile.
6. Insert wires through the hole in the included washer, then place the washer over
the rod and secure in position using the included hex nut.
7. Connect low voltage wires from the GLS-SIM or other Crestron
the wiring diagram. Twist strands of each lead tightly and, with circuit conductors,
push firmly into appropriate wire connector. Screw connectors on clockwise making
sure that no bare conductor shows below the wire connectors. Secure each
(2023017)
connector with electrical tape.
10.11
8. Rotate the sensor to the desired orientation. Note that the sensor base and
backcover are keyed. To lock the device in place, ensure that the arrows are not
aligned.
9. Restore power at circuit breaker or fuse. INSTALLATION IS COMPLETE.
Mounting to Drop Ceiling Using Threaded Rod
Low-Voltage Wires
Drop Ceiling
1" thick maximum Nut
Washer
Threaded Rod
NOTE: Wires routed through
the Threaded Rod
Option B. Drop Ceiling Installation Using Screws
NOTE: You may use the mounting screws, nuts and washers included, or screws in
combination with commercially available wall anchors.
1. Select the location for mounting of the sensor and proper masking for your application.
(Refer to Mounting/Masking Location Diagram.)
2. Make a hole in the ceiling tile large enough to pass the wire connections and wire nuts
through (approximately 1 inch [26 mm] diameter).
3. Remove the back cover of the sensor. Hold the back cover and body of the sensor and
rotate until the two arrows line up, and pull them apart.
4. Install back cover of the ceiling sensor to the wallboard or drop ceiling using the
included screws, nuts and washers, or screws in combination with commercially
available wall anchors.
Option B. Drop Ceiling Installation Using Screws (Cont'd)
GLS-SIM (or 5. Connect low voltage wires from the GLS-SIM or other Crestron device as shown in the
wiring diagram. Twist strands of each lead tightly and, with circuit conductors, push
firmly into appropriate wire connector. Screw connectors on clockwise making sure
that no bare conductor shows below the wire connectors. Secure each connector with
electrical tape.
6. Push wire connections through the center hole of the back cover and into the ceiling.
7. Secure the sensor body to the back cover by aligning the arrows. Lock it by turning
the sensor such that the arrows do not line up.
8. Rotate the sensor to the desired orientation.
9. Restore power at the circuit breaker or fuse. INSTALLATION IS COMPLETE.
Suggested
Mounting to Drop Ceiling Using Screws
Mounting Location
Mount in corner/
Low-Voltage Wires
over doorway
Nut (2 places)
Mount in center
of room/area
Washer (2 places)
Wallboard
Sensor Back
Ceiling
Cover
Mounting Screws
(2 places)
Keylock Arrow
Sensor Base
Sensor Front Cover
Option C. Back Box or Surface Mount Raceway Installation
1. Select the location for mounting of the sensor and proper masking for
your application (Refer to Mounting/Masking Location Diagram).
2. Refer to the suggested mounting option illustrations below.
Mounting to Octagon Back Box Installed Flush to Drop Ceiling
Octagon Back Box
4" x 1 1/2" deep
GLS-SIM (Optional)
Low-Voltage
Wires
#8-32 Screws
(2 places)
® device as shown in
Mounting to Round Fixture with Raceway for Wallboard Ceiling Installation
Wire Mold Back Cover
GLS-SIM (Optional)
GLS-SIM
(Optional)
Mounting Screws
(4 places)
Wallboard Ceiling
Wire Mold Raceway
(use applicable fittings)
MOUNTING/MASKING LOCATION DIAGRAM
The supplied masks mount in the sensor front cover. The half mask is supplied
pre-mounted to demonstrate the mounting method. The perforated mask has twelve
30º removable segments that allow you to mask particular areas to prevent undesire-
able triggers from affecteng the sensor operation. The following illustrations provide
typical application examples.
Back Cover open center to
Masking is not required in a corner
route Low-Voltage Wires
mounting application. The sensor
can not see hallway traffic.
Mounting Screw
TYPICAL APPLICATION DIAGRAMS
Back Cover internal
surface shown
Back Cover shown mounted
on ceiling with screws
Crestron
2-Series Control
Processor or
CLS-C6
Crestron
2-Series Control
Processor
SPECIAL PROGRAMMING
To ensure correct processing of the sensor's output from all interface devices (other than
the GLS-SIM), the SIMPL program for the control processor must disable the pull-up
resistor built in to the Versiport input connector. This is accomplished by setting the
Drop Ceiling
"pu-disable" digital input signal to a "1." The Versiport output can also be inverted using
logic such as a NOT symbol to generate a logic "high" when the room is occupied.
WIRING DIAGRAMS
Connecting Sensors to the GLS-SIM
Blue*
*
Blue
Black Black
Back Cover Screws
(4 places) Sensor
#3
Red
( optional )
Wire Mold Round Fixture
(for raceway mount)
*To incorporate the internal photocell, connect gray
wire to GLS-SIM and cap off blue wire from sensor.
Connecting Sensors to the DIN-IO8 or Equivalent
Low-Voltage Wires
Blue 2
Black
Sensor
#1
Red
1 The following Crestron devices may be used to
integrate the sensors into a Cresnet system by
following the schematic shown here:
DIN-IO8 DIN-AP2 PAC2
AV2 CP2E MP2E
Any Crestron product with Versiports
Mask
By masking two sections,
you can block hallway traffic
Up to Three
in
Parallel
Cresnet ®
GLS-SIM
GLS-OIR-C-450/1500
Cresnet ®
DIN-IO8
GLS-OIR-C-450/1500
DIP Switch Settings
All wires from sensor to GLS-SIM
If using
1 ON
ON
must be 24 AWG minimum.
2 input 1
ON
(If GLS-SIM is not located adjacent
3 ON If using
to the sensor, use CRESNET-P or
1 2 3 4 input 2
4 ON
CRESNET-NP wire.)
*
Blue
(cap off)
Black
Gray*
ON
Sensor
Sensor
1 2 3 4
#2
#1
Red Red
( optional ) GLS-SIM
––– NET––– –SENSOR–
24 Y Z G
24 1 2 G
To Control
System
Use CRESNET-P or
CRESNET-NP wire only
1
Blue or
White
G 1 2 3 4 G 1 2 3 4
––– I/O –––
Gray 2
DIN-IO8
(cap off)
CRESNET-P or ––– NET –––
CRESNET-NP wire 24 Y Z G 24 Y Z G
recommended,
250 feet (76 m) max.
Red
To Control
System
Use CRESNET-P or
Black
CRESNET-NP Wire Only
NOTE: The same Crestron power supply MUST be used to
power both the sensors and the interface device (e.g., DIN-IO8).
Otherwise, there is a risk of damage to the interface device.
PRO2
2 To incorporate the internal photocell, connect the gray wire to
CNXIO16
the DIN-IO8 (or other interface device) and cap off the blue wire
from the sensor.
