Crestron Dual-Technology Wall Mounted Occupancy Sensor GLS-ODT-W-1200 Operations & Installation Manual

Crestron GLS-ODT-W-1200
Dual-Technology Wall Mounted
Occupancy Sensor
Operations & Installation Guide
Further Inquiries
If you cannot locate specific information or have questions after reviewing this guide, please take advantage of
Crestron's award winning customer service team by calling Crestron at 1-888-CRESTRON [1-888-273-7876]. For
assistance in your region, please refer to the Crestron Web site (www.crestron.com) for a listing of Crestron
worldwide offices.
You can also log onto the online help section of the Crestron Web site (www.crestron.com/onlinehelp) to ask
questions about Crestron products. First-time users will need to establish a user account to fully benefit from all
available features.
Future Updates
As Crestron improves functions, adds new features and extends the capabilities of the GLS-ODT-W-1200,
additional information may be made available as manual updates. These updates are solely electronic and serve
as intermediary supplements prior to the release of a complete technical documentation revision. Check the
Crestron Web site periodically for manual update availability and its relevance. Updates are identified as an
"Addendum" in the Download column.
WARNINGS, CAUTIONS & NOTES
WARNING: To avoid fire, shock, or death; turn off power at circuit breaker or fuse and test that power is off before
wiring!
CAUTION: Insufficient power can lead to unpredictable results or damage to the equipment. Please use the
Crestron Power Calculator to help calculate how much power is needed for the system
(www.crestron.com/calculators).
NOTES: Observe the following points.
• To be installed and/or used in accordance with appropriate electrical codes and regulations.
• If you are unsure about any part of these instructions, consult a qualified electrician.
• Sensors must be mounted on a vibration free surface.
• All sensors must be mounted at least 6 feet (1.8 m) away from air vents.
• Do not mount sensors closer than 10 feet (3 m) from each other.
• Do not touch the inner surface of the lens. Clean outer surface with a damp cloth only.
Crestron Electronics, Inc. Operations & Installation Guide - DOC. 6771C
15 Volvo Drive Rockleigh, NJ 07647
Tel: 888.CRESTRON
Fax: 201.767.7576 Specifications subject to
www.crestron.com change without notice.
This product is Listed to applicable
UL Standards and requirements by
Underwriters Laboratories Inc.
FCC Compliance Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may
cause undesired operation.
SETUP
Network Wiring
®
When wiring the Cresnet network, consider the following:
• Use Crestron Certified Wire.
• Use Crestron power supplies for Crestron equipment.
• Provide sufficient power to the system.
Preparing and Connecting Wires
Strip the ends of the wires approximately 1/2 inch (13 mm). Use care to avoid nicking the
conductors. Twist together the ends of the wires that share a connection and tin the
twisted connection. Apply solder only to the ends of the twisted wires. Avoid tinning too
far up the wires or the end becomes brittle. The label on the rear of the dimmer contains
a gauge for wire stripping.
DESCRIPTION

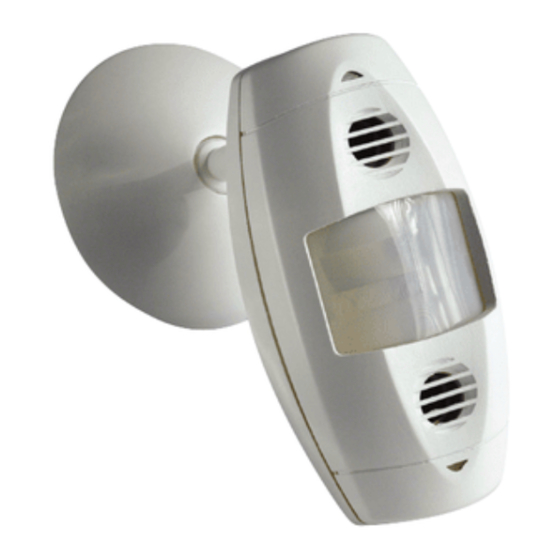

The Occupancy Sensor is a low-voltage infrared and ultrasonic sensor that works with the
GLS-SIM (or other compatible interface) to automatically control lighting. The exact behavior
of the sensor can be configured via software, but the sensor is typically used to turn lights on
when a room or area is occupied, and to shut them off when the room or area is vacated.
The sensor continually analyzes and adjusts to changing conditions. The sensor uses the
latest microprocessor-based technology which permits it to continually adjust and optimize its
performance. The combination of ultrasonic (doppler shift) motion detection, which gives
maximum sensitivity, and infrared motion detection, which gives higher false triggering
immunity, yields a sensor with excellent performance.
Model/Features
Current Operating
Model No. Description Consumption
Frequency
GLS-ODT-W-1200 1-Way Dual-Technology 30mA 32KHz
INSTALLATION INSTRUCTIONS
These instructions include three typical installation options (A, B and C). Choose one that
best suits your needs. Other methods may be possible but they are not described here.
Parts Supplied
Sensor (1)
#8-32 x 1/2" screw (2)
#8-32 x 1-1/2" screw (2)
#8x32 Washer and Nut (2)
Tools/Equipment Required (not supplied)
Slotted/Phillips Screwdriver Electrical Tape
Pliers Pencil
Diagonal Cutters
Option A. Wallboard or Drop Ceiling Installation Using Screws
NOTE: You may use the mounting screws, nuts and washers included, or screws in
combination with commercially available wall anchors.
1. Select the location for mounting of the sensor for your application. (Refer to Mounting
Location Diagram).
2. Make a hole in the wallboard or ceiling tile large enough to pass the wire connections
and wire nuts through (approximately 1" [26 mm] diameter).
3. Drill holes for monting screws using mounting bracket as a guide.
4. Install the mounting bracket of the wall sensor to the wallboard or ceiling using the
included screws, nuts and washers.
5. Pass wires through the base cover/neck assembly. (Refer to the suggested mounting
option illustrations below.)
6. Connect low voltage wires from the GLS-SIM or other Crestron
wiring diagram. Twist strands of each lead tightly and, with circuit conductors, push firmly
into appropriate wire connector. Screw connectors on clockwise making sure that no
bare conductor shows below the wire connectors. Secure each connector with electrical
tape.
7. Push wire connections through the center hole of the back cover and into the wall or
ceiling.
8. Snap neck and base cover onto mounting bracket in the desired orientation.
9. Push wires through the hole and begin to fasten the plastic nut around the back of the
sensor body. Move the sensor body to the desired orientation and then continue to
(2023018)
tighten the nut around the sensor body.
10.11
10. Restore power at the circuit breaker or fuse. INSTALLATION IS COMPLETE.
Mounting to Wallboard Using Screws
Mounting Screws
(2 places)
Plastic Nut
Low-Voltage
Wires
Sensor
Mounting to Drop Ceiling Using
Screws, Nuts, and Washers
Wallboard Base Cover/
Neck Assembly
Screw, Nut and
Washer
(2 places)
Mounting Screws
(2 places)
Drop Ceiling
Sensor
Mounting Base
(top view)
Option B. Wallboard or Drop Ceiling Installation Using Back Box
1. Select the location for mounting of the sensor for your application.
(Refer to Mounting Location Diagram).
2. Refer to the suggested mounting option illustrations below.
Mounting to Octagon Back Box Installed Flush to Wallboard
Octagon Box
4" 1 1/2" deep
Mounting Screws
(2 places)
Suggested
Coverage Mounting Location
1200 sq. ft Mount in corner/
over doorway
(111.48 sq. m)
GLS-SIM
(Optional)
Mounting to Octagon Back Box Installed Flush to Drop Ceiling
Octagon Box
4" 1 1/2" deep
GLS-SIM
(Optional)
® device as shown in the
Option C. Surface Mount Raceway Installation
Mounting to Round Fixture with Raceway for Wallboard Ceiling Installation
Wire Mold
Mounting Screws for Wire Mold Fixture
Round Fixture
(2 places)
Wire Mold
Back Cover
Low-Voltage
Wires
GLS-SIM
(Optional)
GLS-SIM
(Optional)
Mounting
Base
Base Cover
Plastic Nut
Wallboard
MOUNTING LOCATION DIAGRAM
The following illustration provides a typical application example.
Wallboard
TYPICAL APPLICATION DIAGRAMS
Crestron
2-Series Control
Processor or
CLS-C6
4" Octagon
Wallboard Ceiling
Raised Cover
Mounting Base
Crestron
2-Series Control
Processor
4" Octagon
Raised Cover
SPECIAL PROGRAMMING
To ensure correct processing of the sensor's output from all interface devices (other than
the GLS-SIM), the SIMPL program for the control processor must disable the pull-up
resistor built in to the Versiport input connector. This is accomplished by setting the
"pull-up disable" digital input signal to a "1." The Versiport output can also be inverted
using logic such as a NOT symbol to generate a logic "high" when the room is occupied.
WIRING DIAGRAMS
Connecting Sensors to the GLS-SIM
Black
Red
* To incorporate the internal photocell, connect
gray wire to GLS -SIM and cap off blue wire
from sensor.
Connecting Sensors to the DIN-IO8 or Equivalent
Wire Mold
Raceway
Black
1 The following Crestron devices may be used to
integrate the sensors into a Cresnet system by
following the schematic shown here:
DIN-IO8
AV2
Any Crestron product with Versiports
GLS-ODT-W-1200
Up to Three
in
Parallel
Cresnet ®
GLS-SIM GLS-ODT-W-1200
Cresnet ®
DIN-IO8 GLS-ODT-W-1200
DIP Switch Settings
1 ON If using
All wires from sensor to GLS-SIM ON
input 1
2
ON
must be 24 AWG minimum.
3 ON If using
(If GLS-SIM is not located adjacent
4 ON input 2
1 2 3 4
to the sensor, use CRESNET-P or
CRESNET-NP wire.)
* *
Blue Blue* Blue
Black
Black
(cap off)
Gray*
Sensor
#1
ON
Sensor Sensor
Sensor
#3 #2 #1
1 2 3 4
( optional ) ( optional )
GLS-SIM
Red Red
––– NET––– –SENSOR–
24 Y Z G
24 1 2 G
To Control
Use CRESNET-P or
CRESNET-NP wire only
1
2
Blue
G 1 2 3 4 G 1 2 3 4
––– I/O –––
2
Gray (cap off)
DIN-IO8
Sensor
––– NET –––
#1
24 Y Z G
Red 24 Y Z G
To Control
System
Use CRESNET-P or
CRESNET-NP wire only
NOTE: The same Crestron power supply MUST be used to
power both the sensors and the interface device (e.g., DIN-IO8).
Otherwise, there is a risk of damage to the interface device.
DIN-AP2 PAC2 PRO2
2 To incorporate the internal photocell, connect the gray wire to
CP2E MP2E CNXIO16
the DIN-IO8 (or other interface device) and cap off the blue wire
from the sensor.
System
