FMU130
Quick Manual
ADVANCED 3G TERMINAL WITH
v1.0
FLEXIBLE INPUTS
CONFIGURATION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FMU130 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Teltonika FMU130

  • Page 1 FMU130 Quick Manual ADVANCED 3G TERMINAL WITH v1.0 FLEXIBLE INPUTS CONFIGURATION...
  • Page 2: Table Of Contents

    How to install USB drivers (Windows) ..........7 Configuration (Windows) ..............7 Quick SMS configuration ..............9 Mounting recommendations ............. 10 LED indications ................11 Characteristics................11 Basic characteristics ............... 11 Electrical characteristics ..............13 Safety information ..............14 Certification and Approvals ............15 FMU130 | Wiki...
  • Page 3: Know Your Device

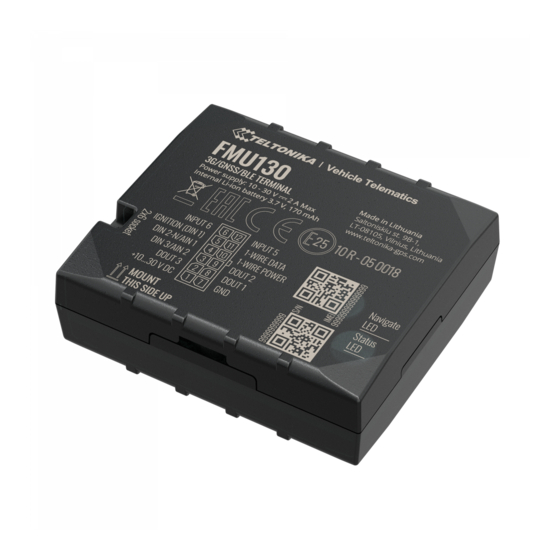

    Know your device Figure 1 FMU130 device view FMU130 | Wiki...
  • Page 4: Pinout

    Pinout Table 1 FMU130 2x6 socket pinout Pin number Pin name Description VCC (+) Power supply (+10-30 V DC). Digital output, channel 3. Open DOUT 3 collector output. Max. 3,3 A DC. Analog input, channel 2. Input range: 0- DIN3/AIN2 30 V DC / Digital input, channel 3.
  • Page 5: Wiring Scheme

    Wiring scheme Figure 3 FMU130 Wiring scheme Automotive relay FMU130 | Wiki...
  • Page 6: Set Up Your Device

    Set up your device How to insert Micro-SIM card and connect the battery 1. Gently remove FMU130 cover using plastic pry tool from both sides. 2. Insert SIM card as shown with PIN request disabled or read Wiki how to enter it later in Teltonika Configurator.
  • Page 7: Pc Connection (Windows)

    Setup will continue installing the driver and eventually the confirmation window will appear. Click Finish to complete the setup. 1. Power-up FMU130 with DC voltage (10 – 30 V) power supply using supplied power cable. LED’s should start blinking, see Configuration (Windows) “LED indications”.
  • Page 8 Most important configurator section is GPRS – where all your server and GPRS settings can be configured and Data Acquisition – where data acquiring parameters can be configured. More details about FMU130 configuration using Configurator can be found in our Wiki. Figure 10 Configurator Status window FMU130 | Wiki...
  • Page 9: Quick Sms Configuration

    • server every 120 seconds 2005 – Port • After successful SMS configuration, FMU130 device will • 2006 – Data sending protocol synchronize time and update records to configured server. (0 – TCP, 1 – UDP) Time intervals and default I/O elements can be changed by using Teltonika Configurator parameters.
  • Page 10: Mounting Recommendations

    Depending on the car model, this may happen in 5 to 30 minutes period. ▬ When the module is connected, measure the voltage again to make sure it did not decrease. ▬ It is recommended to connect to the main power cable in the fuse box. FMU130 | Wiki...
  • Page 11: Led Indications

    Device is not working or Device is in UG96: B5/B8/B3/B2 boot mode UC15-E: B8/B1 UC15-A: B5/B2 3G bands UC15-T: B5/B1 UG96: B6/B5/B8/B2/B1 UC15: HSDPA: Max. 3.6Mbps (DL) Data transfer UMTS: Max. 384Kbps (DL)/Max.384Kbps (UL) GPRS: Max. 85.6Kbps (DL)/Max. 85.6Kbps (UL) FMU130 | Wiki...
  • Page 12 Physical specification Fuel monitoring CONTROL, OBDII dongle Dimensions 65 x 56,6 x 20,6 mm (L x W x H) Digital Input 1, Accelerometer, External Power Ignition detection Weight 55 g Voltage, Engine RPM (CAN Adapters, OBDII dongle) FMU130 | Wiki...
  • Page 13: Electrical Characteristics

    Input Voltage threshold (DIN1) Analog Input Input voltage (Recommended Operating Conditions), Range 1 Input resistance, Range 1 kΩ Measurement error on 12V, Range 1 Additional error on 12 V, Range 1 Measurement error on 30 V, Range 1 0.33 FMU130 | Wiki...
  • Page 14: Safety Information

    EN 60950-1 standard. Battery should not be disposed of with general The device FMU130 is not designed as a navigational device for boats. household waste. Bring damaged or worn-out batteries to your local recycling center or dispose Do not disassemble the device.
  • Page 15: Certification And Approvals

    • • FMU130 E-Mark FMU130 RoHS • FMU130 Declaration of device operation temperature • This sign on the package means that it is necessary to read the User‘s Manual before your start using the device. Full User‘s Manual version can be found in our Wiki.
  • Page 16: Warranty

    More information can be found at teltonika.lt/warranty-repair • Replaced with a new product • Replaced with an equivalent repaired product fulfilling the same functionality • TELTONIKA can also repair products that are out of warranty at an agreed cost. FMU130 | Wiki...
