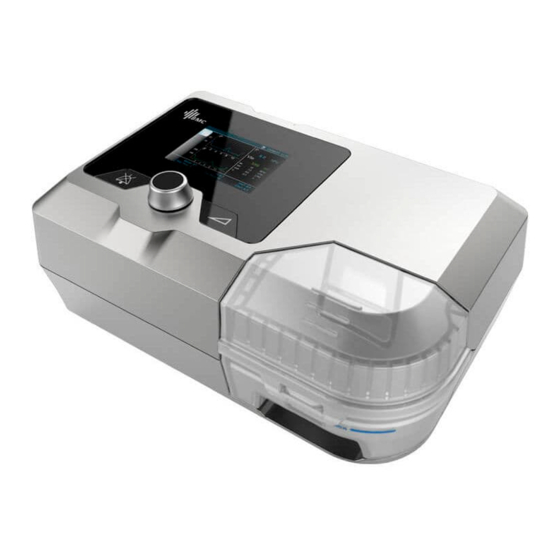

- Page 1 User Manual Respiratory Insufficiency Ventilator and Accessories BPAP System G2S BPAP Series...
-
Page 2: Table Of Contents
G2S BPAP Series User Manual V2.1 Table of Contents 1. Symbols ········································································································· 1 1.1 Control Buttons ····················································································· 1 1.2 Device Symbols ····················································································· 1 2. Warning, Caution and Important Tip ···································································· 2 3. Intended Use ·································································································· 3 4. Contraindications ····························································································· 4 5. - Page 3 G2S BPAP Series User Manual V2.1 14.1.2 Bringing up the Initial Setup Interface ········································· 24 14.1.3 Accessing the Setup Interface ···················································· 24 14.1.4 Selecting Options ···································································· 24 14.1.5 Adjusting Options ···································································· 25 14.1.6 Confirming Adjustments ···························································· 25 14.1.7 Turning Pages ········································································· 25 14.1.8 Exiting the Patient Menu ···························································...
-
Page 4: Symbols
G2S BPAP Series User Manual V2.1 1. Symbols 1.1 Control Buttons Ramp Button Mute Button Knob 1.2 Device Symbols Follow Instructions for Use Operating Instructions Type BF Applied Part (mask and SpO probe) Class II (Double Insulated) For indoor use only... -
Page 5: Warning, Caution And Important Tip
G2S BPAP Series User Manual V2.1 Product is intended for use by a single patient only Lot number Non-Ionizing Radiation SD Card Air Inlet Air Outlet WEEE Marking Logo of BMC Medical Co., Ltd. 2. Warning, Caution and Important Tip WARNING! Indicate the possibility of injury to the user or operator. -
Page 6: Intended Use
G2S BPAP Series User Manual V2.1 3. Intended Use BPAP System (G2S BPAP Series) is a Bi-level PAP (Bi-level Positive Airway Pressure) device, which is intended to provide non-invasive ventilation for patients with obstructive Sleep Apnea (OSA) and Respiratory Insufficiency. These devices are intended for adult patient by prescription in the home or hospital/institutional environment. -
Page 7: Contraindications
G2S BPAP Series User Manual V2.1 4. Contraindications If you have any of the following conditions, tell your doctor before using this device: • Insufficient respiratory drive to endure brief interruptions in non-invasive ventilation therapy • Acute sinusitis or otitis media •... - Page 8 G2S BPAP Series User Manual V2.1 Heated Humidifier Humidifier Settings: Off, 1 to 5 (95˚F to 154.4˚F / 35°C to 68°C) Humidifier Output: No less than 10 mg H Environmental Conditions: Maximum airflow, 35°C, 15% relative humidity Maximum Delivered Gas Temperature: ≤ 43°C...
- Page 9 G2S BPAP Series User Manual V2.1 Sound Pressure Level < 30 dB, when the device is working at the pressure of 10 hPa. Sound Power Level < 38 dB, when the device is working at the pressure of 10 hPa.
-
Page 10: Available Therapies
G2S BPAP Series User Manual V2.1 Tube Length: 6 ft. (1.8 m) The Form and the Dimensions of the Patient Connection Port The 22 mm conical air outlet complies with ISO 5356-1. Power of heating components 38 W 6. Available Therapies... -
Page 11: Glossary
G2S BPAP Series User Manual V2.1 7. Glossary Apnea A condition marked by the cessation of spontaneous breathing. AutoCPAP Adjust CPAP pressure automatically to improve patient comfort based on monitoring of apnea and snoring events. Auto Off When this feature is enabled, the device automatically discontinues therapy whenever the mask is removed. - Page 12 G2S BPAP Series User Manual V2.1 Res Rate Respiratory Rate. Number of breaths per minute. Reslex A therapy feature that is enabled by your home care provider to provide pressure relief during exhalation. Standby State The state of the device when power is applied but the airflow is turned off.
-
Page 13: Model
G2S BPAP Series User Manual V2.1 8. Model Product Contents Maximum Work Model Work Mode Optional Pressure Main Device Accessory (hPa) Main device G2S B20S CPAP, S (2.4-inch TFT) Main device G2S B20A CPAP, S, AutoS (2.4-inch TFT) Main device... -
Page 14: Package Contents
• This device should only be used with the mask and accessories manufactured or recommended by BMC or with those recommended by your prescribing physician. The use of inappropriate masks and accessories may affect the performance of the device and impair the effectiveness of therapy. -
Page 15: System Features
Kit lead near the patient’s neck, as it may wrap around the patient’s head or neck during sleep. • Do not connect any equipment to the device unless recommended by BMC or your health care provider. • Please contact BMC to obtain an SD card if needed. -
Page 16: First Time Setup
G2S BPAP Series User Manual V2.1 CAUTION! • The pictures in this manual are only for reference, if they are different from the material object, the latter shall prevail. 11. First Time Setup 11.1 Placing the Device Place the device on a firm, flat surface. -
Page 17: Connecting To Power
G2S BPAP Series User Manual V2.1 (2) Install the filter cap containing the air filter to the device, as shown in Fig. 11-2. Fig. 11-2 CAUTIONS! • The air filter must be in place when the device is operating. • Installing the air filter and filter cap, device must be unplugged. -
Page 18: Connecting To Power Cord Locker
G2S BPAP Series User Manual V2.1 IMPORTANT TIPS! • After interruption and restoration of the power supply, the device will restore its pre-interruption working status automatically. • To remove AC power, disconnect the power cord from the power outlet. 11.4 Connecting to Power Cord Locker (1) Assemble the power cord locker to the device directed by the positioning groove. -
Page 19: Using Oxygen With The Device
- It is recommended to use the accompanying tube and mask provided by BMC. - Do not wear the mask for more than a few minutes while the device is not operating. -
Page 20: Inserting The Sd Card (Only For The Device That Equipped With Sd Card)
G2S BPAP Series User Manual V2.1 device. Explanation of Warning: When the device is turned off, but the oxygen flow still exists, oxygen may accumulate within the device's enclosure and pose a fire hazard. Turning off the oxygen before turning off the device will prevent oxygen accumulation in the device and reduce the risk of fire. -
Page 21: Using The Optional Kits
• Be sure to follow your physician’s instructions on adjusting the settings! To order any accessories not included with this device, contact your equipment supplier. • DO NOT connect any ancillary equipment to this device unless recommended by BMC or your physician. If you suffer from chest discomfort, shortness of breath, stomach bloating, or severe headache when using the device, contract your physician or qualified medical personnel immediately. -
Page 22: Routine Use
G2S BPAP Series User Manual V2.1 12. Routine Use 12.1 Connecting the Tube Connect the power cord, power adapter, and tube properly according to the instructions in the First Time Setup (Chapter 11). Connect the mask and headgear according to the user manual for the mask. -
Page 23: Heated Humidifier
G2S BPAP Series User Manual V2.1 CAUTIONS! • Do not position the device where it is difficult to operate the disconnection device. • To isolate the device from the supply mains, disconnect the plug. 13. Heated Humidifier The humidifier is available from your home care provider. The humidifier may reduce nasal dryness and irritation by adding moisture (and heat if applicable) to the airflow. -
Page 24: Inserting The Water Chamber
G2S BPAP Series User Manual V2.1 Fig. 13-3 WARNING! • Change water before every use and do not surpass the MAX fill line. CAUTIONS! • Empty the water chamber when the heated humidifier is not in use. • Distilled water is recommended. -
Page 25: Emptying The Water Chamber
G2S BPAP Series User Manual V2.1 13.2 Emptying the Water Chamber (1) Removing the water chamber according to instructions in 13.1.1. (2) Emptying the water chamber: Open the cap, as shown below, and pour any remaining water out of the water chamber. -
Page 26: Navigating The Patient Menu
G2S BPAP Series User Manual V2.1 WARNING! • Do not touch the heater plate of the device when it is working, otherwise you may get burned. Turn off the heat when the heated humidifier is not in use. 14. Navigating the Patient Menu 14.1 Steps to Navigate the Patient Menu... -
Page 27: Bringing Up The Initial Setup Interface
G2S BPAP Series User Manual V2.1 Fig. 14-4 Note: The above interface only applies to G2S B25T, G2S B25VT, G2S B30T, G2S B30VT, G2S B30AT and G2S LAB. 14.1.2 Bringing up the Initial Setup Interface From the Main Interface shown in Fig. 14-1 or Fig. 14-2 or Fig. 14-3 or Fig. 14-4, press and hold the Ramp Button for three seconds. -
Page 28: Adjusting Options
G2S BPAP Series User Manual V2.1 certain option, press the Knob , and the option is then displayed in yellow, meaning that the option can now be adjusted, as shown by the Humidifier option in Fig. 14-7. Fig. 14-7 14.1.5 Adjusting Options Adjust the option by turning the Knob . -
Page 29: Exiting The Patient Menu
G2S BPAP Series User Manual V2.1 Fig. 14-10 Note: are page turning symbols. 14.1.8 Exiting the Patient Menu (1) Returning to the Initial Setup Interface Move the cursor to the Back option by turning the Knob , as shown in Fig. 14-11. -
Page 30: Options Of The Patient Menu And Corresponding Descriptions
G2S BPAP Series User Manual V2.1 14.2 Options of the Patient Menu and Corresponding Descriptions Option Range Description There are five humidity levels available. As the numbering Off / 1 ～ 5 Humidifier increases, the humidity rises accordingly. “Off” means the... -
Page 31: Alarm
G2S BPAP Series User Manual V2.1 15. Alarm This chapter describes device alarms and the responses operators make to different alarms. After running, disconnect the device from the power supply by unplugging the power cord, an audible alert sounds like “beep beep beep, beep-beep, beep beep beep, beep-beep”, which means the alarming system of the device works normally. -
Page 32: Alarming Silence
G2S BPAP Series User Manual V2.1 In accordance with the requirements of the relevant standards, the volume of the audible alarm signal meets the requirements, and the sound pressure range of the measured auditory alarm signal is described as follows:... - Page 33 G2S BPAP Series User Manual V2.1 When the airflow is on, an audible alert will sound if the airway pressure exceeds the warning threshold; the screen will display “High Pressure!!!”. Note: The thresholds for different models: Off, 5 ～ 21 hPa applies to G2S B20T, in 0.5 hPa increments, the default...
- Page 34 G2S BPAP Series User Manual V2.1 When SpO Kit is applied, an audible alert will sound when the value of SpO is lower than the warning threshold; the screen will display “Low SpO !!!”. Function Setting range: Off, 70% ～ 100%, in...
-
Page 35: Reposition Of Alarming
G2S BPAP Series User Manual V2.1 The screen will display “SD Card Full!” Technology SD Card Full! if the SD card has reached its maximum Priority Alarm capacity. Technology The screen will display “Reinsert SD Reinsert SD card! card!” if the SD card fails to work. -
Page 36: Cleaning The Mask And Headgear
G2S BPAP Series User Manual V2.1 • Do not maintain the device in using. CAUTIONS! • Overheating of the materials could lead to early fatigue of these materials. • Do not use solutions containing chlorinated lime, chlorine, or aromatic to clean the device and its accessories. -
Page 37: Cleaning The Enclosure
G2S BPAP Series User Manual V2.1 CAUTIONS! • Clean the water chamber only after the water in it cools. Make sure that no water enters the device. • After cleaning, rinse the water chamber throughly in clean water to make sure that no soap residue is left;... -
Page 38: Traveling With The Device
• Sterilization of this device and its components other than recommended is not permitted. 17. Traveling with the Device (1) Use the BMC carrying case to carry the device and accessories along with you. Do not put them in your checked baggage. -
Page 39: Transferring The Device To Another Patient
20. Technical Support Please contact BMC directly if you need the circuit diagram of the device and the list of components for certain purposes such as maintenance or connection to other equipment. BMC will provide the circuit diagram and / or other technical documents in whole or in part according to your needs. -
Page 40: Troubleshooting
G2S BPAP Series User Manual V2.1 22. Troubleshooting The table below lists common problems you may have with the device and possible solutions to those problems. If none of the corrective actions solve the problem, contact your home care provider. - Page 41 G2S BPAP Series User Manual V2.1 Problem Possible Cause Solution (s) Contact your physician equipment supplier. The patient is allergic to the Facial reddening Use a latex-free mask. materials of the mask Place a lining between the skin and mask Turn the humidity setting down, or raise the room temperature.
-
Page 42: Common Problems In The Device And Corresponding Solutions
G2S BPAP Series User Manual V2.1 22.2 Common Problems in the Device and Corresponding Solutions Problem Possible Cause Solution (s) Take a few deep breaths with the The Auto On / Off feature is mask on, and the device will start... -
Page 43: Emc Requirements
G2S BPAP Series User Manual V2.1 23. EMC Requirements The cables must be provided by BMC. The information of each cable is as follows: (1) Power Cord: 1800 mm ± 30 mm, unshielded. Guidance and manufacturer's declaration - electromagnetic emissions The device is intended for use in the electromagnetic environment specified below. - Page 44 G2S BPAP Series User Manual V2.1 Guidance and manufacturer's declaration - electromagnetic immunity The device is intended for use in the electromagnetic environment specified below. The user of the device should make sure that it is used in such an environment.
- Page 45 G2S BPAP Series User Manual V2.1 Recommended separation distances between portable and mobile RF communications equipment and the device The device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the device can help prevent...
-
Page 46: Limited Warranty
(1) year for main device and three (3) months for all accessories from the date of sale by BMC Medical Co., Ltd. to the dealer. If the product fails to perform in accordance with the product specifications, BMC Medical Co., Ltd. will repair or replace, at its option, the defective material or part. - Page 47 390992...
