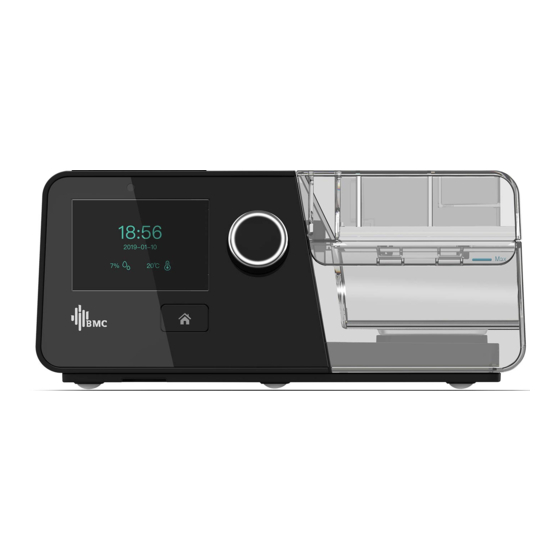

BMC G3 A20 User Manual
Auto cpap / cpap system
Hide thumbs
Also See for G3 A20:
- Quick operation manual (2 pages) ,
- User manual (54 pages) ,
- Quick operation manual (3 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for BMC G3 A20
Summary of Contents for BMC G3 A20
- Page 1 User Manual Auto CPAP / CPAP System G3 A20 / G3 C20 0123...
-
Page 2: Table Of Contents
Auto CPAP / CPAP System User Manual V1.0 Table of Contents 1. Symbols ·································································································· 1 1.1 Control Buttons ················································································ 1 1.2 Device Symbols ················································································ 1 2. Warning, Caution and Important Tip ······························································· 3 3. Intended Use ···························································································· 3 4. Contraindications ······················································································· 4 5. - Page 3 Auto CPAP / CPAP System User Manual V1.0 16.1.4 Selecting Options ································································· 32 16.1.5 Adjusting Options ································································ 32 16.1.6 Confirming Adjustments ························································ 33 16.1.7 Turning Pages ····································································· 33 16.1.8 Exiting the Patient Menu ························································ 33 16.2 Options of the Patient Menu and Corresponding Descriptions ····················· 34 17.
-
Page 4: Symbols
Auto CPAP / CPAP System User Manual V1.0 1. Symbols 1.1 Control Buttons Home Button Start / Stop Button Knob 1.2 Device Symbols Follow Instructions for Use Operating Instructions Type BF Applied Part (mask) Class II (Double Insulated) AC Power DC Power IP22 ≥12.5 mm Diameter, Dripping (15ºtilted) - Page 5 Auto CPAP / CPAP System User Manual V1.0 Maximum water level European CE Declaration of Conformity Lot number Non-Ionizing Radiation SD Card WEEE Marking Logo of BMC Medical Co., Ltd. Air Inlet Air Outlet 2 / 51...
-
Page 6: Warning, Caution And Important Tip
Warnings, Cautions, and Important Tips appear throughout this manual as they apply. 3. Intended Use The G3 A20 / G3 C20 system is a CPAP (Continuous Positive Airway Pressure) device designed for the treatment of adult Obstructive Sleep Apnea (OSA) only, either in the hospital or at home. -
Page 7: Contraindications
Auto CPAP / CPAP System User Manual V1.0 IMPORTANT! • Read and understand the entire user manual before operating this system. If you have any questions concerning the use of this system, contact your home care provider or health care professional. 4. -
Page 8: Specifications
Auto CPAP / CPAP System User Manual V1.0 5. Specifications Device Size Dimensions (L x W x H): 265 mm × 145 mm × 114 mm Weight: 1.7 kg Water capacity: To maximum fill line 360 mL Product Use, Transport and Storage Operation Transport and Storage Temperature: 5°C to 35°C (41˚F to 95˚F) - Page 9 Auto CPAP / CPAP System User Manual V1.0 Type of Protection Against Electric Shock Class II Equipment Degree of Protection Against Electric Shock Type BF Applied Part Degree of Protection Against Ingress of Water IP22 Pressure Range 4 to 20 hPa (in 0.5 hPa increments), ≤30 hPa under single fault conditions. Static Pressure Stability ±...
-
Page 10: Available Therapies
Auto CPAP / CPAP System User Manual V1.0 Maximal Optical Output Power Less than 1.5 mw maximum average. Air Tubing Air tubing Length Inner diameter Tubing 6 ft.(1.83m) 19mm Heater Tubing 6 ft.(1.83m) 19mm The Form and the Dimensions of the Patient Connection Port The 22 mm conical air outlet complies with ISO 5356-1. - Page 11 Auto CPAP / CPAP System User Manual V1.0 SmartA With this feature, the device adjusts Ramp P and Min APAP according to the patient's respiratory event during a certain time. CPAP Continuous Positive Airway Pressure. iCode A feature that is intended to give access to compliance and therapy management information. The ―iCode‖...
-
Page 12: Model
Maximum Model Product Work Work Optional Accessory Contents Mode Pressure (hPa) Device CPAP, Tubing(optional), SpO G3 A20 (3.5-inch LCD) AutoCPAP (optional), Mask(optional), WiFi kit (optional), Cellular Module (optional), Device G3 C20 CPAP Heated Tubing (optional) (3.5-inch LCD) 9 / 51... -
Page 13: Package Contents
• This device should only be used with the mask and accessories manufactured or recommended by BMC or with those recommended by your prescribing physician. The use of inappropriate masks and accessories may affect the performance of the device and impair the effectiveness of therapy. -
Page 14: System Features
• Do not pile up the long tubing at the head of the bed, as it may wrap around the head or neck of the patient during sleep. • Do not connect any equipment to the device unless recommended by BMC or your health care provider. - Page 15 Auto CPAP / CPAP System User Manual V1.0 Heated Tubing Port Kit Port Air Outlet DC Inlet Filter Cap (Air Inlet) Fig. 10-2 Name Function Air Outlet Deliver pressurized air; connects to the tubing Kit Port Connected to SpO Kit (Not for connection to un-recommended devices) (optional) Heated Tubing Port...
-
Page 16: First Time Setup
Auto CPAP / CPAP System User Manual V1.0 11. First Time Setup 11.1 Placing the Device Place the device on a firm, flat surface. WARNINGS! • If the device has been dropped or mishandled, if the enclosure is broken, or if water has entered the enclosure, disconnect the power cord and discontinue use. -
Page 17: Connecting To Power
Auto CPAP / CPAP System User Manual V1.0 Fig. 11-2 (3) Change the air filter and filter cap to the PM2.5 filter, as shown in Fig. 11-3. PM2.5 Filter Fig. 11-3 CAUTION! • The air filter or the PM2.5 filter must be in place when the device is operating. 11.3 Connecting to Power (1) Insert the plug of the power adapter into the DC Inlet on the back of the device;... -
Page 18: Assembling The Tubing / Heated Tubing And Mask
Auto CPAP / CPAP System User Manual V1.0 Consumption‖) may damage the device or cause device failure. • Connect to appropriate power for proper operation of the device. • Inspect the power cord often for any signs of damage. Replace a damaged cord immediately. - Page 19 • In order to minimize the risk of CO rebreathing, the patient should observe the following instructions: - Use the accompanying tubing and mask provided by BMC. - Do not wear the mask for more than a few minutes while the device is not operating. 16 / 51...
-
Page 20: Using Oxygen With The Device
DO NOT smoke in the area near G3 A20 / G3 C20 or the oxygen container. • Sources of oxygen should be located more than 1 m from the device. -
Page 21: Starting Treatment
• Be sure to follow your physician’s instructions on adjusting the settings! To order any accessories not included with this device, contact your equipment supplier. • DO NOT connect any ancillary equipment to this device unless recommended by BMC or your physician. If you suffer from chest discomfort, shortness of breath, stomach bloating, or severe headache when using the device, contract your physician or qualified medical personnel immediately. -
Page 22: Using The Ramp Feature
Auto CPAP / CPAP System User Manual V1.0 CAUTION! • Observe the water level of the water chamber before using the humidifier. Make sure there is sufficient water in the water chamber, and avoid heating the device with an empty water chamber. -
Page 23: Turning The Device Off
Auto CPAP / CPAP System User Manual V1.0 12.7 Turning the Device Off Take off the mask and headgear, press the Start / Stop Button , and the device will stop delivering air. Disconnect the power cord from the power outlet to power off the device. -
Page 24: Returning The Water Chamber
Auto CPAP / CPAP System User Manual V1.0 Fig. 13-3 (2) Open the cap, and fill the water chamber with approximately 360 ml of water, as shown in Fig. 13-4. Make sure that the water does not exceed the maximum water level line. Fig. -
Page 25: Emptying The Water Chamber
Auto CPAP / CPAP System User Manual V1.0 Fig. 13-6 WARNING! • For safety purposes, the device must be placed on a flat surface at a level lower than the patient's head on a bed, so that the condensation flows back to the water chamber rather than remain in the tubing causing rainout. -
Page 26: Using The Spo 2 Kit
Auto CPAP / CPAP System User Manual V1.0 Fig. 13-8 CAUTIONS! • Generally speaking, the humidity inside the mask is low when the water temperature is low. • The greater the difference between the temperature inside the air tubing and room temperature is, the more easily condensation occurs inside the tubing. -
Page 27: Removing The Spo
Auto CPAP / CPAP System User Manual V1.0 Kit Port Fig. 14-2 (2) After the device is powered on, start the device, the screen of the device then displays the Main Interface shown in Fig. 14-3. The patient's blood oxygen saturation and pulse rate can be clearly seen during the course of therapy. -
Page 28: Connecting To Gprs Or Wifi Network
Auto CPAP / CPAP System User Manual V1.0 Attach its sensor to the patient's index finger or any other finger. The sampling rate of the SpO signal is about 50 Hz, and the update rate of the frame is 1 Hz. The value of SpO and PR is calculated by the average of the former eight pulse waveforms. - Page 29 Auto CPAP / CPAP System User Manual V1.0 Fig. 15-1 (2) The device starts searching for GPRS signals in a few seconds. Once a GPRS signal is found, the module will automatically connect to it, and a GPRS icon will appear in the status bar at the top of the device screen.
-
Page 30: Connecting To Wifi Network
Auto CPAP / CPAP System User Manual V1.0 15.2 Connecting to WiFi Network (1) Turn on the device. The device screen displays the Main Screen shown in Fig. 15-1. Turn the Knob until the cursor is on the icon , and the screen displays the Initial Setup Interface shown in Fig. - Page 31 Auto CPAP / CPAP System User Manual V1.0 Fig. 15-6 (3) The ―WiFi‖ setup interface displays a certain number of available WiFi networks in a random order, as shown in Fig. 15-7. If a page turning symbol appears below the WiFi network list, it indicates that when the cursor is on the last WiFi network on that page, the user can turn the Knob to the right to see the remaining WiFi networks, as shown in...
- Page 32 Auto CPAP / CPAP System User Manual V1.0 Fig. 15-9 (4) After the desired WiFi network is found, press the Knob , turn the Knob select this WiFi network. Press the Knob to access the WiFi password input interface. The password is at least 8 characters in length, and can contain uppercase and lowercase English letters and digits 0 ～...
-
Page 33: Navigating The Patient Menu
Auto CPAP / CPAP System User Manual V1.0 Fig. 15-12 Fig. 15-13 To switch from one successfully connected WiFi network to another, select the desired new network and enter the correct password to connect to it. If the desired WiFi network is a public network that does not require a password, turn the Knob directly after accessing the password input interface until the cursor stays on the Confirmation Key... -
Page 34: Bringing Up The Initial Setup Interface
Auto CPAP / CPAP System User Manual V1.0 bar at the top of the screen, as shown in Fig. 16-2. Fig. 16-2 The first icon on the upper part of the screen indicates the Preheat Function Icon, the second icon indicates the Accessorie, and the third icon indicates Mask Setup Icon,... -
Page 35: Selecting Options
Auto CPAP / CPAP System User Manual V1.0 16.1.3 Selecting Options As you turn the Knob clockwise, the cursor moves downwards from one option to another. When the cursor is on a certain option, press the Knob , and the color of the option is changed, meaning that the option can now be adjusted, as shown by the Humidifier option in Fig. -
Page 36: Confirming Adjustments
Auto CPAP / CPAP System User Manual V1.0 16.1.5 Confirming Adjustments Confirm your adjustment to an option by pressing the Knob . The option is then displayed in white, as shown in Fig. 16-7. Fig. 16-7 16.1.6 Turning Pages When the cursor is onWork screen saver, the last option shown in Fig. 16-7, the remaining options will appear on a new page if you continue to turn the Knob clockwise, as shown in Fig. -
Page 37: Options Of The Patient Menu And Corresponding Descriptions
Auto CPAP / CPAP System User Manual V1.0 16.2 Options of the Patient Menu and Corresponding Descriptions Option Range Description There are five humidity levels available. As the Off, Auto, Humidifier numbering increases, the humidity rises accordingly. 1 ～ 5 ―Off‖... - Page 38 ―Nasal,‖ but the patient can choose other suitable Other masks as well. When selecting masks other than the above three types of BMC masks, the patient can identify the masks as other. Test whether the mask is worn correctly,the screen...
-
Page 39: Alert
Auto CPAP / CPAP System User Manual V1.0 17. Alert Alert Message Description An audible alert will sound in 6 s if the device is accidentally disconnected from power when it is delivering air. Note: Power Failure!!! (1) The alert will not sound if power failure occurs when the device is in standby state. -
Page 40: Cleaning And Disinfection
Auto CPAP / CPAP System User Manual V1.0 18. Cleaning and Disinfection WARNINGS! • Regular cleaning of the device and its accessories is very important for the prevention of respiratory infections. • To avoid electric shock, always unplug the device before cleaning. •... -
Page 41: Cleaning The Water Chamber
Auto CPAP / CPAP System User Manual V1.0 18.3 Cleaning the Water Chamber (1) Opening the Water Chamber: Open the cap of the water chamber, as shown in Fig. 16-1. Fig. 18-1 (2) Cleaning the Water Chamber: You may also clean the water chamber with a soft cloth which does not scratch the water chamber (dip the soft cloth in liquid soap if necessary), rinse it thoroughly, and then wipe it dry with a soft cloth. -
Page 42: Cleaning The Enclosure
Auto CPAP / CPAP System User Manual V1.0 (2) Cleaning the Transfer Box: Rinse the transfer box throughly in clean water. You may also clean the transfer box with a soft cloth which does not scratch it (dip the soft cloth in liquid soap if necessary), rinse it thoroughly, and then wipe it dry with a soft cloth. -
Page 43: Disinfection
Auto CPAP / CPAP System User Manual V1.0 (2) Install the filter cap containing the air filter to the device, as shown in Fig. 18-5. Fig. 18-5 (3) Change the air filter and filter cap to the PM2.5 filter, as shown in Fig. 18-6. PM2.5 Filter Fig. -
Page 44: Traveling With The Device
• If the device is used when the atmospheric pressure is out of the stated range (See Section 5), the accuracy of the leakage alert will be affected. (1) Use the BMC carrying case to carry the device and accessories along with you. Do not put them in your checked baggage. -
Page 45: Transferring The Device To Another Patient
22. Technical Support Please contact BMC directly if you need the circuit diagram of the device and the list of components for certain purposes such as maintenance or connection to other equipment. BMC will provide the circuit diagram and / or other technical documents in whole or in part according to your needs. -
Page 46: Troubleshooting
Auto CPAP / CPAP System User Manual V1.0 24. Troubleshooting The table below lists common problems you may have with the device and possible solutions to those problems. If none of the corrective actions solve the problem, contact your home care provider. - Page 47 Auto CPAP / CPAP System User Manual V1.0 Contact your physician equipment supplier. The patient is allergic to the Use a mask which is not made with materials of the mask natural rubber latex. Place a lining between the skin and mask Turn the humidity setting down, or raise the room temperature.
-
Page 48: Common Problems In The Device And Corresponding Solutions
Auto CPAP / CPAP System User Manual V1.0 24.2 Common Problems in the Device and Corresponding Solutions Problem Possible Cause Solution(s) Take a few deep breaths with the The Auto On / Off feature is mask on, and the device will start enabled automatically Ensure that the power cord, power... -
Page 49: Emc Requirements
Auto CPAP / CPAP System User Manual V1.0 25. EMC Requirements Guidance and manufacturer's declaration - electromagnetic emissions The device is intended for use in the electromagnetic environment specified below. The user of the device should ensure that it is used in such an environment. Electromagnetic Environment - Emissions Test Compliance... - Page 50 Auto CPAP / CPAP System User Manual V1.0 Guidance and manufacturer's declaration - electromagnetic immunity The device is intended for use in the electromagnetic environment specified below. The user of the device should make sure that it is used in such an environment. 60601 Compliance Electromagnetic...
- Page 51 Auto CPAP / CPAP System User Manual V1.0 Guidance and manufacturer's declaration - electromagnetic immunity The device is intended for use in the electromagnetic environment specified below. The user of the device should make sure that it is used in such an environment. Immunity 60601 Compliance...
- Page 52 Auto CPAP / CPAP System User Manual V1.0 Recommended separation distances between portable and mobile RF communications equipment and the device The device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the device can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the device as recommended below, according to the maximum output power of the communications equipment.
- Page 53 Auto CPAP / CPAP System User Manual V1.0 Recommended separation distances between wireless communications equipment The device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the device can help prevent electromagnetic interference by maintaining a minimum distance between RF wireless communications equipment and the device as recommended below, according to the maximum output power of the communications equipment.
-
Page 54: Limited Warranty
(1) year for main unit and three (3) months for all accessories from the date of sale by BMC Medical Co., Ltd. to the dealer. If the product fails to perform in accordance with the product specifications, BMC Medical Co., Ltd. will repair or replace, at its option, the defective material or part. - Page 55 391169...
