Summary of Contents for SIGMATEK BL 011
- Page 1 BL 011 S-DIAS Dummy Module Instruction Manual Date of creation: 12.08.2017 Version date: 26.07.2023 Article number: 20-015-011-E...
- Page 2 (print, photocopy, microfilm or in any other process) without the express permission. We reserve the right to make changes in the content without notice. The SIGMATEK GmbH & Co KG is not responsible for technical or printing errors in the handbook and assumes no responsibility for damages that occur...

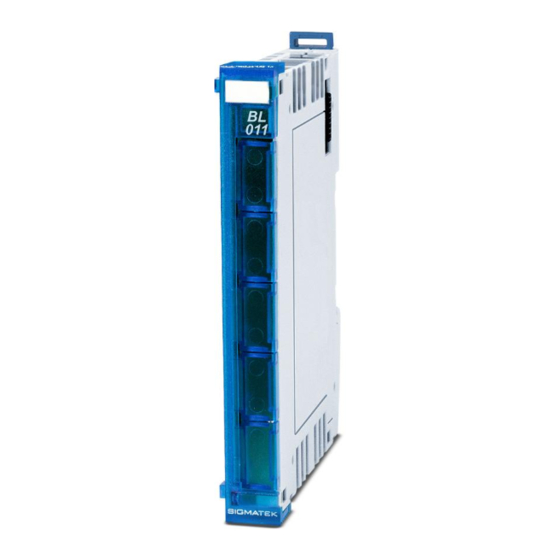

- Page 3 S-DIAS DUMMY MODULE BL 011 S-DIAS Dummy Module BL 011 The S-DIAS BL 011 dummy module can be used as a placeholder for a later system expansion. The dummy module is an active module on the S-DIAS bus. 26.07.2023 Page 1...
-
Page 4: Table Of Contents
BL 011 S-DIAS DUMMY MODULE Contents Introduction ................4 Target Group/Purpose of this Operating Manual ...... 4 Important Reference Documentation ......... 4 Contents of Delivery ..............4 Basic Safety Directives ............5 Symbols Used ................5 Disclaimer ..................7 General Safety Directives ............8 Software/Training ................. - Page 5 S-DIAS DUMMY MODULE BL 011 Label Field ................... 17 Wiring ..................18 Note ....................18 Assembly/Installation ............19 Check Contents of Delivery ............19 Mounting ..................20 10 Hardware Class BL011 ............22 10.1 Interfaces ..................23 10.1.1 Clients ....................23 10.1.2...
-
Page 6: Introduction
General knowledge of automation technology is required. Further help and training information, as well as the appropriate accessories can be found on our website www.sigmatek-automation.com. Our support team is happily available to answer your questions. Please see our website for our hotline number and business hours. -
Page 7: Basic Safety Directives
S-DIAS DUMMY MODULE BL 011 Basic Safety Directives Symbols Used The following symbols are used in the operator documentation for warning and danger messages, as well as informational notes: DANGER Danger indicates that death or serious injury will occur, if the specified measures are not taken. - Page 8 BL 011 S-DIAS DUMMY MODULE INFORMATION Information Provides important information on the product, handling or relevant sections of the documentation, which require attention. Page 6 26.07.2023...
-
Page 9: Disclaimer
It does not guarantee properties under the warranty. Please thoroughly read the corresponding documents and this operating manual before handling a product. SIGMATEK GmbH & Co KG is not liable for damages caused through, non-compliance with these instructions or applicable regulations. -
Page 10: General Safety Directives
BL 011 S-DIAS DUMMY MODULE General Safety Directives The Safety Directives in the other sections of this operating manual must be observed. These instructions are visually emphasized by symbols. INFORMATION According to EU Directives, the operating manual is a component of a product. -
Page 11: Software/Training
S-DIAS DUMMY MODULE BL 011 CAUTION Handle the device with care and do not drop or let fall. Prevent foreign bodies and fluids from entering the device. The device must not be opened! Manipulez l’appareil avec précaution et ne le laissez pas tomber. -
Page 12: Standards And Directives
The product was constructed in compliance with the following European Union directives and tested for conformity. 3.1.1 EU Conformity Declaration EU Declaration of Conformity The product BL 011 conforms to the following European directives: • 2014/35/EU Low-voltage Directive • 2014/30/EU Electromagnetic Compatibility (EMC Directive) •... -
Page 13: Type Plate
S-DIAS DUMMY MODULE BL 011 Type Plate HW: Hardware version SW: Software version 26.07.2023 Page 11... -
Page 14: Technical Data
BL 011 S-DIAS DUMMY MODULE Technical Data Electrical Requirements Voltage supply from the S-DIAS +5 V Current consumption on the typically 35 mA maximum 40 mA S-DIAS bus (+5 V supply) Page 12 26.07.2023... - Page 15 S-DIAS DUMMY MODULE BL 011 26.07.2023 Page 13...
-
Page 16: Miscellaneous
BL 011 S-DIAS DUMMY MODULE Miscellaneous Article number 20-015-011 Standard UL 508 (E247993) Approbations UL, cUL, CE Environmental Conditions Storage temperature -20 ... +85 °C Environmental temperature 0 ... +60 °C Humidity 0-95 %, non-condensing Installation altitude above sea 0-2000 m without derating level >... -
Page 17: Mechanical Dimensions
S-DIAS DUMMY MODULE BL 011 Mechanical Dimensions 26.07.2023 Page 15... -
Page 18: Connector Layout
BL 011 S-DIAS DUMMY MODULE Connector Layout Status LEDs Module Status green module active no supply available BLINKING (5 Hz) no communication User yellow can be set from the application (e.g. the module LED can be set to blinking through the... -
Page 19: Label Field
S-DIAS DUMMY MODULE BL 011 Label Field Manufacturer Weidmüller Type MF 10/5 CABUR MC NE WS Weidmüller article number 1854510000 Compatible printer Weidmüller Type Printjet Advanced 230V Weidmüller article number 1324380000 26.07.2023 Page 17... -
Page 20: Wiring
BL 011 S-DIAS DUMMY MODULE Wiring Note The DIN rail must have an adequate mass connection. INFORMATION The ground bus should be connected to the control cabinet when possible! The S-DIAS module cannot be connected/disconnected while voltage is applied! Page 18... -
Page 21: Assembly/Installation
S-DIAS DUMMY MODULE BL 011 Assembly/Installation Check Contents of Delivery Ensure that the contents of the delivery are complete and intact. See chapter 1.3 Contents of Delivery. INFORMATION On receipt and before initial use, check the device for damage. If the device is damaged, contact our customer service and do not install the device in your system. -
Page 22: Mounting
BL 011 S-DIAS DUMMY MODULE Mounting The S-DIAS modules are designed for installation into the control cabinet. To mount the modules a DIN-rail is required. The DIN rail must establish a conductive connection with the back wall of the control cabinet. The individual S-DIAS modules are mounted on the DIN rail as a block and secured with latches. - Page 23 S-DIAS DUMMY MODULE BL 011 Recommended minimum distances of the S-DIAS modules to the surrounding components or control cabinet wall: a, b, c … distances in mm (inches) 26.07.2023 Page 21...
-
Page 24: Hardware Class Bl011
BL 011 S-DIAS DUMMY MODULE 10 Hardware Class BL011 Hardware Class BL011 for the S-DIAS BL011 dummy module This hardware class is used to control the BL011 hardware module. The S-DIAS dummy module is a placeholder in the hard and software for modules that are later installed. The dummy module can be actively integrated and has a status and user LED. -
Page 25: Interfaces
S-DIAS DUMMY MODULE BL 011 10.1 Interfaces 10.1.1 Clients The client must be connected to an S-DIAS port, an "SdiasOut"_[x]” server. SdiasIn Place The physical location of the hardware module is entered in this client. Up to 64 modules, 0 to 63, can be assigned. -
Page 26: Transport/Storage
BL 011 S-DIAS DUMMY MODULE 11 Transport/Storage INFORMATION This device contains sensitive electronics. During transport and storage, high mechanical stress must therefore be avoided. For storage and transport, the same values for humidity and vibration as for operation must be maintained! Temperature and humidity fluctuations may occur during transport. -
Page 27: Maintenance
S-DIAS DUMMY MODULE BL 011 13 Maintenance INFORMATION During maintenance as well as servicing, observe the safety instructions from chapter 2 Basic Safety Directives. 13.1 Service This product was constructed for low-maintenance operation. 13.2 Repair INFORMATION In the event of a defect/repair, send the device with a detailed error description to the address listed at the beginning of this document. - Page 28 BL 011 S-DIAS DUMMY MODULE Documentation Changes Change date Affected Chapter Note page(s) 21.01.2016 1.2 Miscellaneous Standard changed 25.01.2016 1.1 Electrical Requirements 28.04.2016 5 Mounting Graphics distances 06.09.2016 2 Mechanical Dimensions Graphic changed 17.08.2017 1.3 Environmental Conditions Pollution Degree added 18.10.2017...
