R-NIS3100 Switch GHardware Installation and Reference Guide
LED
3. Top Panel
Figure 1-9

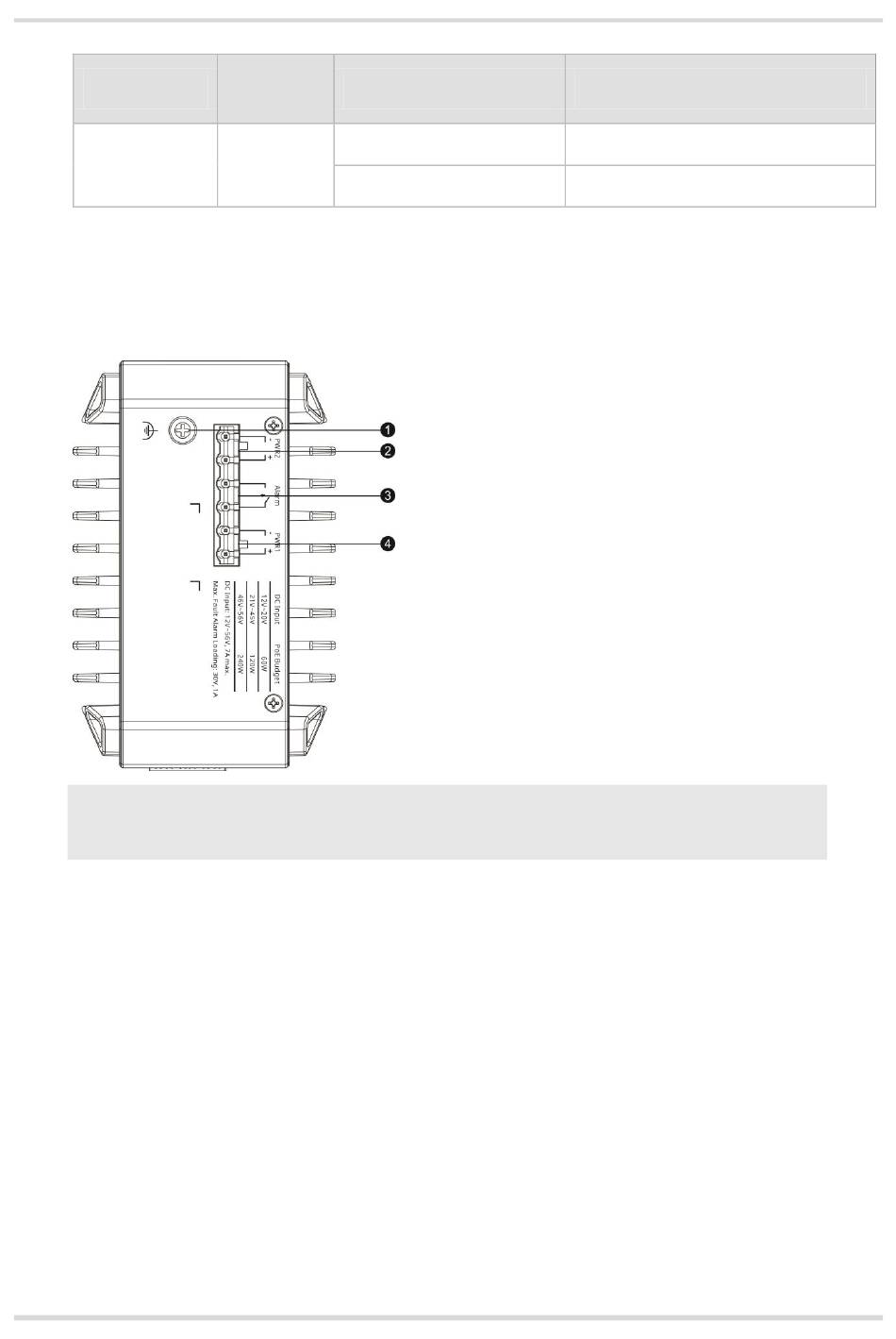

Top Panel of RG-NIS3100-8GT2SFP-HP
1. Grounding stud
3. Alarm port
4. Rear Panel
The switch supports two installation modes: DIN rail mounting and wall mounting.
Silkscreen
Status
Label
Off
P2
Solid on
Description
PWR2 power supply is off.
PWR2 power supply is on.
2. DC power connector PWR2
4. DC power connector PWR1
12
Product Overview
