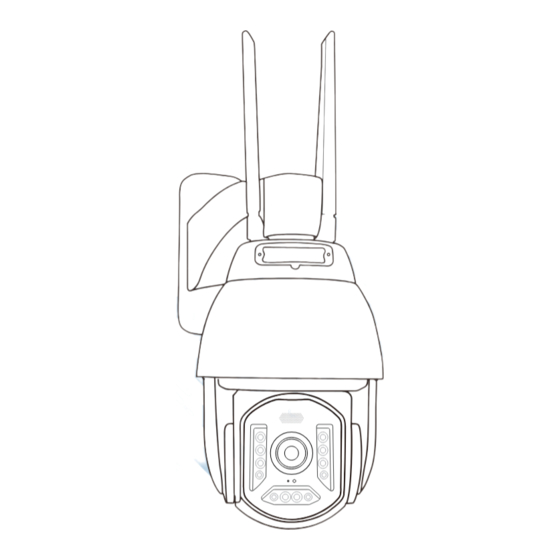

- Page 1 4G/LTE Wireless PTZ Camera 601-D25X 4G/WiFi V2 Builtin 4G Wifi Router Dual LAN port 2023/08 User Manual V2.0 Visit http://4gV2.sunba.net to access the step by step YouTube video tutorials for setting up Sunba IP PTZ camera.
-
Page 2: Product Overview
Product Overview Model 603-D25X 4G V2 (Buil�n 4G Wifi Router/Dual LAN port) Image Sensor 1/2.8” Progressive Scan CMOS 5MP@15fps/1080P@25fps Resolu�on Memory Card Slot Support Micro SD storage, up to 256GB (Class 10 or above) Focal Length 25x Op�cal Zoom, 5.2mm-130mm Viewing Angle 59.5°-2.6°... -
Page 3: Tf Card Installation
It is important to examine the male/female end between the antenna and the receptive port on the camera before installation. If your antenna is damaged out of box, please contact support@sunba.net for replacement. female NOTE:Be careful with the female and male ends of the port and male the antennas. - Page 4 Warning: The load end for MANY battery charge controllers doesn't regulate voltages and is for wide voltage equipments. Sunba cameras require, however, fixed voltage. In this case, you need to get a voltage regulator for the load end if the battery doesn’t have built-in regulators.
- Page 5 5. Connect the camera to the pole NOTE: RJ45 network cable from the camera can provide Scan to get Installation Video Tutorial: Support: support@sunba.net Internet to another device, and you can connect to other network cameras or other network devices.
-
Page 6: Smartphone Control
D ow n l oa d o n the App Store t h e Google Play iCSee video tutorial smartphone.sunba.net First register a cloud account Click the "+" icon to add device. NOTE: If you use XMEye APP You will not have the cloud storage option. - Page 7 Select 4G Camera and then manually scan the camera QR code to add device. SUNBA TECH. P2P: 5935d7d9 00XXXXXX Please ignore the camera's prompt sound and proceed directly to the next step, scanning the QR code on the silver label on the side of...
- Page 8 Control pan, tilt and zoom, watch live view and set/delete/call presets from this page. Press to speak. (device must support speaker) Turn on/off microphone. Record a video and save the clip to your smartphone. Take a snapshot and save the image to your smapphone.
- Page 9 It helps to upload the captured alarm recordings to the cloud. The 603-D25X 4G V1 version belongs to the SUNBA Performance Series, and it needs to be set through the Performance Series APP and client software; the V2 version belongs to the SUNBA Lite Series, this Manual only applies to the V2 version.
- Page 10 Click to view cloud playback. The cloud alarm recording can be used only when the cloud storage function is activated, and the alarm is turned on. Click to select the date of recordings. Note: The motion detection alarm is turned on by default. After the alarm is turned off, the cloud platform cannot store recordings.
-
Page 11: Desktop Setup
VMS for PC: admin/admin VMS for Mac: admin/(blank) Step 2: Note P2P Code = Cloud ID = Serial Number Tips: Go to Sunba website FAQ page and type keyword “mobile”to gain the setup page for popular smartphone app such as XMEye, TinyCam Pro, IP Cam Viewer. - Page 12 10. 4G/LTE Router Panel Management Please search for the available wifi hotspot in your network and find the one starting with IM-LINK. And then connect to it with password 1234567890 Once connected, please login to the 4G/LTE management panel via its IP address. The default IP of the 4G module is http://192.168.8.1 but it is always recommended to check via Network and Sharing Center->Change Adapter Setting for verification.
- Page 13 To adjust the WiFi coverage, please go to Advanced Settings-Power-save to set the level. The larger the Wi-Fi coverage, the more battery the camera consumes. 11. Important Troubleshooting Steps If the camera is not online, please refer to the following 3 steps to troubleshoot. Step 1.
-
Page 14: Frequent Asked Questions
12.Frequent Asked Questions Frequently Asked Questions (read me before placing an order) How can I power my Sunba 4G PTZ? The camera has only a DC12V port and accepts any input power of DC12V 4A. You can use regulated battery with solar panel or with DC12V cable running and plugged to AC outlet. - Page 15 How do I know if the camera’s frequency range would work for my point of installation? It is recommended to check map Why does my camera receive no or minimal 4G signal? Please first check if your SIM card carrier supports any of the above frequency supported by the camera. Next, each band station supports different frequency range and it is possible that your closet band station doesn’t provide a frequency signal that is supported by the camera.
- Page 16 Bouygues Free France Orange B7/B20 B7/B20 B3/B20 Germany Telekom B3/B7/B20 Vodafone B7/B20 Meteor B3/B20 Ireland Vodafone B3/B20 B3/B7/B20 Italy Vodafone B3/B7 B3/B7/B20 European version Tele2 B7/B20 LTE- FDD: B1/B3/B7/B8/B20/B28; Europe Netherlands T- Mobile B3/B7/B8 LTE- TDD: B38/B40/B41; Vodafone B3/B7/B20 WCDMA: B1/B8 Aero2 B3/B20 Poland...
