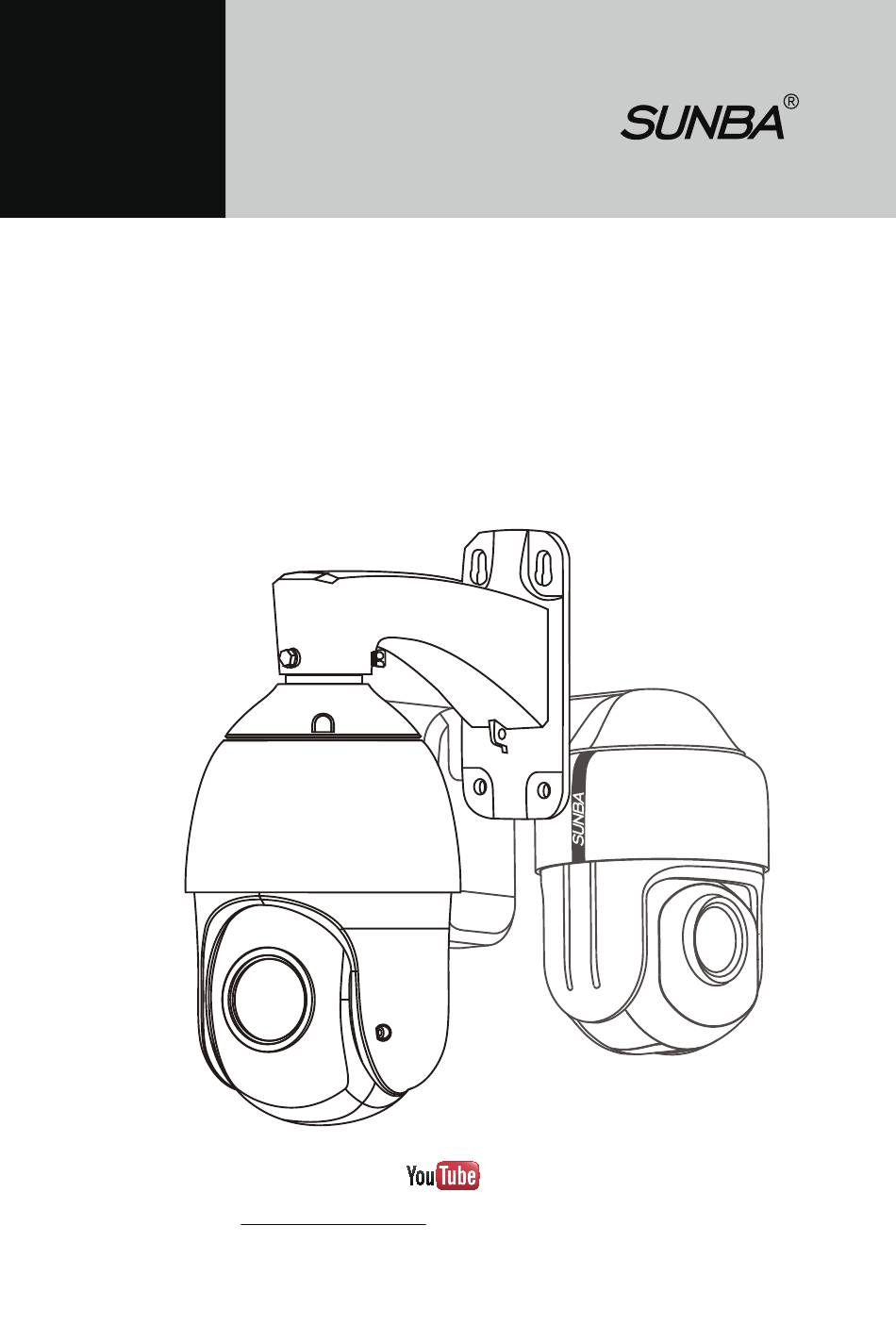

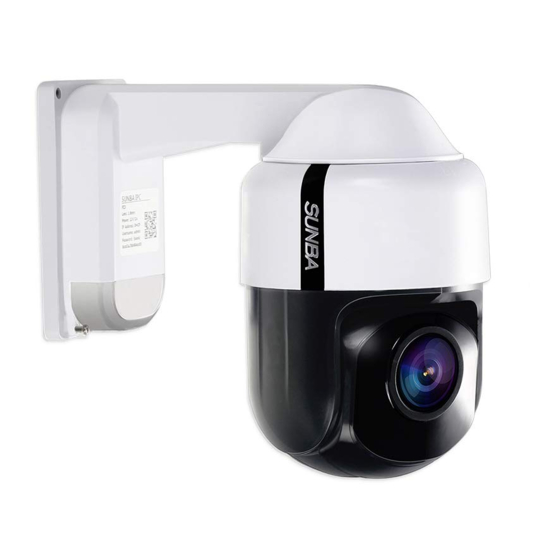

- Page 1 2018/11 Version 4.0 Dedicated PTZ Camera Professional SUNBA PTZ Camera ® Analog Series User Manual Version 4.0 Visit http://analog.sunba.net to access the step by step YouTube video tutorials for setting up Sunba Analog PTZ camera.
-
Page 2: Camera Compatibility
1.Camera Compatibility Analog cameras require a decoder to display images on a monitor. Sunba Analog PTZ camera requires Pelco D protocol and RS485 standard to support PTZ. A decoder can be a DVR or a video capture card. Some TV (with built-in decoder) also supports CVBS signal. -
Page 3: Camera Installation
Common RS485 Control Type A: Digital Video Recorder (DVR) with RS485 Port Type B: 3D Pan Tilt Zoom Joystick (usually used with DVR without RS485 port or with CCTV monitor) Keyboard This enables your camera to pan tilt zoom. Incompatible DVR will result in problems such as B/W display, no video or the loss of PTZ control. - Page 4 Cameras. For example, if you have previously wired a xed lens bullet camera and you remove the old camera and adopt old wires directly on Sunba PTZ dome camera, this is likely NOT working given two units have different power requirements.
- Page 5 Stage2:Permanent Installation With DVR DC12V Power Video PTZ Control Blue side goes to polar A on the RS485 port of the DVR Orange side goes to polar B on the RS485 port of the DVR Twisted Pair Cable With CCTV Monitor and 3D Pan Tilt Zoom Joystick DC12V Power CCTV Monitor...
- Page 6 3.Mount Installation for 305-A4X Step 1. Select Mount Ceiling (Indoor) Wall Bracket (Indoor & Outdoor) Loosen Tighten - 05 -...
- Page 7 (usually only AWG24) that can cause underpower. 3)Install the camera next to an electrical cable which will cause interference and degrade video quality. 4)Dissemble the camera without notifying Sunba support team. This may void the warranty. 5.Address Setting for PTZ This chapter is NOT applicable if your device is AHD and you are using BNC coaxial connection for PTZ.
- Page 8 Camera3 Camera4 All 4 cameras have different addresses. They are easily recognizable! The default address of Sunba PTZ camera is 1. So if you buy 2 PTZ cameras without changing the address on the 2nd unit, then….. Address1 Address1 Camera1...
- Page 9 How to modify the PTZ address of the camera? Please set the camera’s address before using this dome. No same address (or ID) is allowed for more than one PTZ camera. By default, the address of PTZ camera is 1. Step 1: Go to the OSD Menu of the camera by calling preset 95+CALL (refer to the manual of your DVR if you want to learn how to use/call preset).
- Page 10 6. Preset and Patrol PTZ Preset Position Sunba dome cameras can set preset PTZ positions for which cameras can memorize and travel directly by calling the preset. Preset Positions are represented by numbers. You need to “add” a preset and then “call” it.
- Page 11 Every PTZ supported DVR has a built-in PTZ control panel on the screen. With Sunba’s DVR, for example, enter 95 in the preset box on the control panel and hit "start”to call preset 95, which opens the OSD menu of the camera.
- Page 12 Park Act following instruction from Chapter 6. The preset list is up-to-date at the time of release. It may have slight change with the actual one you receive. If there is any question, feel free to contact Sunba. - 11 -...
-
Page 13: Camera Osd Menu
7.Camera OSD Menu Model: 305-A4X, 301-3X,301-AHD3X, 604-22X, When you open the OSD menu with preset 95+CALL, use the up and down keys to move the cursor, left key to go back to the previous menu, right key to select and con rm. Preset 95 + call will appear the following menu: MAIN MENU PAGE 2 MAIN MENU PAGE 1... -
Page 14: Frame Speed
3.PARK TIME The waiting time (or idle time) before the camera executes its PARK ACTION (see below). The default is 15 seconds. 4.FRAME SPEED The rate the dome scans continuously between two preset points. Valid value 1~31. Please read the “The Full Preset List” to learn how to set left and right scan boundary. -
Page 15: Troubleshooting
(both needs to be PAL or NTSC); this may happen after a reset. Defective power adapter; test with another adapter to con rm and ask Sunba to send a replacement Red lights on but no power Reason & Solution adapter. - Page 16 9.Warranty Claim Step Contact Sunba support team with the following information. This is not necessary if you want to send the camera to Sunba repairing center as our technician will fully check the camera. It is necessary, however, if you are requesting parts from Sunba for replacement.
- Page 17 In this case, please kindly provide us with your tracking number so that we can match the return package and the refund will be manually processed within 24 hours. Please watch your email noti cations. For any questions, don't hesitate to reach support@sunba.net SUNBA® Technology...
