Summary of Contents for SUNBA 604-22X
-

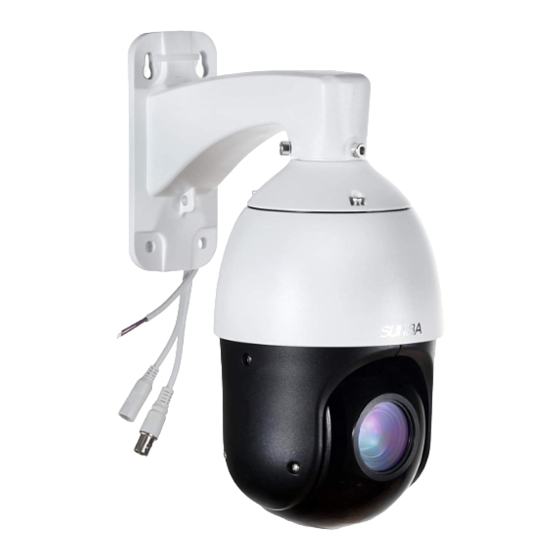

Page 1: Ptz Camera
2017/04 Version 3.0 Dedicated PTZ Camera Professional SUNBA PTZ Camera ® Analog Series User Manual ( Analog-HD / CVBS ) Version 3.0 The following content is guaranteed to be up-to-date at the time of release. For latest information, please refer to www.sunbatech.com... -
Page 2: Camera Compatibility
IR LED. 1.Camera Compatibility Analog cameras require a decoder to display images on a monitor. Sunba Analog PTZ camera requires Pelco D protocol to support PTZ. A decoder can be a DVR or a video capture card. Some TV (with built-in decoder) also supports CVBS signal. -
Page 3: Camera Installation
Compatibility Chart CVBS 960H DVR AHD1080P AHD 720P DVR CVBS (AHD-M) AHD1080P AHD 1080P DVR CVBS (AHD-H) AHD1080P Incompatible DVR will result in problems such as B/W display, no video or the loss of PTZ control. 2.Camera Installation Stage1:Before Mounting Outside RS485 DC12V Use Default 12DVC Power Adapter! No Power Extension in Testing Phase! - Page 4 Cameras. For example, if you have previously wired a xed lens bullet camera and you remove the old camera and adopt old wires directly on Sunba PTZ dome camera, this is likely NOT working given two units have different power requirements.
- Page 5 Stage2:Permanent Installation (with DVR) RS485 Connector Type A: DC12V Power Video PTZ Control Twisted Pair Cable RS485 Connector Type B: DC12V Power Video PTZ Control Blue side goes to polar A on the RS485 port of the DVR Orange side goes to polar B on the RS485 port of the DVR Twisted Pair Cable - 04 -...
- Page 6 (usually only AWG24) that can cause underpower. 3)Install the camera next to an electrical cable which will cause interference and degrade video quality. 4)Dissemble the camera without notifying Sunba support team. This may void the warranty. 4.Address Setting for PTZ This chapter is NOT applicable if your device is AHD and you are using BNC coaxial connection for PTZ.
- Page 7 Camera3 Camera4 All 4 cameras have different addresses. They are easily recognizable! The default address of Sunba PTZ camera is 1. So if you buy 2 PTZ cameras without changing the address on the 2nd unit, then….. Address1 Address1 Camera1...
- Page 8 How to modify the PTZ address of the camera? Please set the camera’s address before using this dome. No same address (or ID) is allowed for more than one PTZ camera. By default, the address of PTZ camera is 1. Step 1: Go to the OSD Menu of the camera by calling preset 95+CALL (refer to the manual of your DVR if you want to learn how to use/call preset).
- Page 9 5. Preset and Patrol PTZ Preset Position Sunba dome cameras can set preset PTZ positions for which cameras can memorize and travel directly by calling the preset. Preset Positions are represented by numbers. You need to “add” a preset and then “call” it.
-
Page 10: Special Presets
Every PTZ supported DVR has a built-in PTZ control panel on the screen. With Sunba’s DVR, for example, enter 95 in the preset box on the control panel and hit "start”to call preset 95, which opens the OSD menu of the camera. -
Page 11: The Full Preset List
Park Act following instruction from Chapter 6. The preset list is up-to-date at the time of release. It may have slight change with the actual one you receive. If there is any question, feel free to contact Sunba. - 10 -... -
Page 12: Camera Osd Menu
6.Camera OSD Menu Model: 502S-AHD, 604-AHD, 801-AHD, 805-AHD, 301-3X,301-AHD3X 801-36X, 805-36X, 507-AHD, 604-22X, 604-36X,405-22X,405-AHD20X. When you open the OSD menu with preset 95+CALL, use the up and down keys to move the cursor, left key to go back to the previous menu, right key to select and con rm. -
Page 13: Troubleshooting
For AHD camera users, unless an AHD+DVR combo is purchased, please rst check your DVR compatibility before reading the form below.Incom- -patible DVR can cause problems such as B/W display, blurry image, no video or lack of PTZ function. Feel free to contact Sunba to double check. - 12 -... - Page 14 (both needs to be PAL or NTSC); this may happen after a reset. Defective power adapter; test with another adapter to con rm and ask Sunba to send a replacement Red lights on but no power Reason & Solution adapter.
- Page 15 8.Warranty Claim Step Contact Sunba support team with the following information. This is not necessary if you want to send the camera to Sunba repairing center as our technician will fully check the camera. It is necessary, however, if you are requesting parts from Sunba for replacement.
-
Page 16: Warranty Statement
In this case, please kindly provide us with your tracking number so that we can match the return package and the refund will be manually processed within 24 hours. Please watch your email noti cations. For any questions, don't hesitate to reach support@sunba.net SUNBA® Technology...
