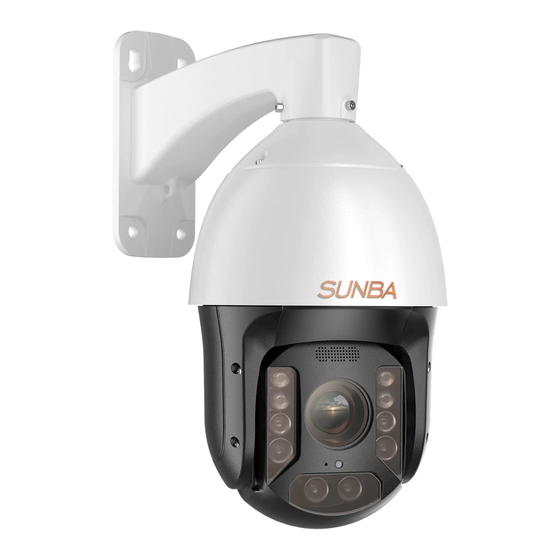

SUNBA P636 V2-Performance Series User Manual
  1. Manuals
  2. Brands
  3. SUNBA Manuals
  4. Security Camera
  5. P636 V2-Performance Series
  6. User manual

SUNBA P636 V2-Performance Series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Network PTZ Camera
Premium Engineering. Durable Outdoor Surveillance.
Ideal for House or Project Site.
Visit http://performance.sunbatech.com to access the step by step
YouTube video tutorials for setting up Sunba IP PTZ camera.
Performance Series-P636 V2
User Guide V1.0
NDAA Compliant
2022/02
Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P636 V2-Performance Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SUNBA P636 V2-Performance Series

Summary of Contents for SUNBA P636 V2-Performance Series

  • Page 1 NDAA Compliant Performance Series-P636 V2 Network PTZ Camera Premium Engineering. Durable Outdoor Surveillance. Ideal for House or Project Site. 2022/02 Version 1.0 Visit http://performance.sunbatech.com to access the step by step YouTube video tutorials for setting up Sunba IP PTZ camera.
  • Page 2 “Audio Monitoring on These Prem- ises.” Sunba provides such warning decal along with every IP camera. It is the responsi- bility of user to clearly post the decal and verify State law to guarantee any deploy- ment compliance.

  • Page 3: Table Of Contents

    MENU 1. Connection and Installtion 1.1 Connection 1.2 Micro SD Card Installation 2. Login and Live View 2.1 Smartphone 2.2 Web Browser 2.3 Guard Station Client Tool (Mac & Windows) 3. Network Setting 3.1 Change IP and fix the IP address of the camera 3.2 Port Configuration 3.3 Email Alert 3.4 FTP Alert...

  • Page 4: Connection And Installtion

    Sunba PTZ camera requires the PoE adapter (switch/injector) to support IEEE 802.3at standard, which is also known as PoE+. 1.2 Micro SD Card Installation Sunba IP camera comes with a built-in micro SD card slot that can store videos and snapshots. Pan Tilt Zoom Camera Remove the 4 screws to take o the camera back cover.

  • Page 5: Login And Live View

    2.Login and Live View 2.1 Smartphone Download Guard Viewer App Sign up a cloud account. Select “international” service Download on D own load on the App Store t h e Google Play to show the sidebar, and go to the Devices option to add device: You can add device by Auto Search in LAN if your smartphone is connected to...

  • Page 6: Guard Station Client Tool (Mac & Windows)

    You can login using the credential above and set a customized password later. You would be prompted to install the web plugin of the camera if you are using Internet Explorer. Alternatively, you are able to manually download the web plugin from Sunba website: https://sunbatech.com/download/ Chrome and Firefox are Plug-in free (in both Mac and Windows system) , but doesn’t currently support...
  • Page 7 Please proceed to the “Device Management” tab to add your IP camera to the client so ware: The IP camera should automatically display under “Online Device” on the lower section. Select the camera, and click “+Add” to add the camera to the upper section. The camera should show “online”...

  • Page 8: Network Setting

    HTTP port, the url for logging into the camera must be http://IP:HTTP Port. For SUNBA Performance Series IPC, HTTP port is equivalent to the ONVIF port. Please note all ports must have unique value to each other. 3.3 Email Alert Click Setup > Network > E-mail.

  • Page 9: Ftp Alert

    Parameter Description When enabled, the e-mail will be encrypted using TLS (Transport Layer Security) TLS/SSL or Secure Socket Layer (SSL) to protect privacy. irst it tries to send through an SSL connection. If the SMTP server supports SSL, the e-mail will be sent through the SSL connection;...

  • Page 10: Video And Image Setting

    Set the IP address and port of the FTP server, username and password to upload images to the FTP server. Set the path for saving snapshots on the FTP server and the file name format. For example, set path as Preset No.\\IP Address\\Date, and set file name as Preset No.-PTZ Latitude-PTZ Longitude-PTZ Zoom.jpg.

  • Page 11: Image Setting

    Group Of Pictures in MPEG video encoding. This parameter specifies the order in which intra-frames (I frame) and inter-frames are arranged. SVC (Scalable Video Coding) can reduce storage without compromising playback quality. U-Code Basic Mode: The actual bit rate is around 3/4 of the set bit rate. Advanced Mode: The actual bit rate is around 1/2 of the set bit rate.
  • Page 12 Custom: The user sets exposure as needed. Indoor 60Hz: Reduce stripes by limiting shutter frequency. Manual: Finetune image quality by setting shutter, gain and iris manually. Low Motion Blur: Control the minimum shutter to reduce motion blur in faces captured in motion. Shutter is used to control the light that comes into the lens.
  • Page 13 Set the length of time before the camera switches between day mode and night Day/Night Switching(s) mode a er the conditions for switching are met. Note: You can set this parameter only when Day/Night Mode is set to Automatic. Enable WDR to distinguish the bright and dark areas in the same image. Note: You can set this parameter only when Exposure Mode is neither Customize nor Manual and when Image Stabilizer is disabled.
  • Page 14 Illumination Set the intensity level of the IR light. The greater the value, the higher the intensity. 0 means that the IR light is turned o . Level Near-illumination Level: You are recommended to set this parameter first for a wide-angle scene.

  • Page 15: Osd Setting

    Parameter Description White Balance Adjust the red or blue o set of the image: Auto/Auto2: The camera adjusts the red and blue o set automatically according to the light condition (the color tends to be blue). If the images are still unnatu- rally red or blue in Auto mode, please try Auto2.

  • Page 16: Rtmp Stream Configuration

    Private Mask On certain occasions, you may need to set a mask area on the camera image to protect privacy. For example, if you are live broadcasting the camera, and have a private zone you don’t want to hide from the audience, you can setup a private mask.

  • Page 17: Account Management

    To delete a stream, click The Audio Compression is AAC by default, and users can modify it through IE browser (with plug-in) or Guard Tool. Chrome browser does not support, but it's also AAC by default. Note: If your stream lags a lot or if the stream fails to connect, you should try lowering the bitrate and frame per second.

  • Page 18: Preset And Patrol

    6.Preset and Patrol 6.1 Preset Presets are sets of locations that the camera can memorize and travel to directly when being called. It is available only in pan, tilt and zoom cameras. Each preset location will correspond to a number from the preset list.

  • Page 19: Setting Home Position

    6.3 Setting Home Position PTZ camera will return to home position if no operation is made within a specified period. You need to add presets or a patrol route first. See Add a preset (Chapter 6.1) and Add a patrol route (Chapter 6.2) for details.

  • Page 20: Remote Access

    Port forwarding enables remote access by mapping tra ic through specific ports to specific device on the LAN (Local Area Network). For Sunba Performance IP cameras, customers need to forward HTTP Port (80) for live viewing and controlling. If customers would want to use RTSP live streaming or use 3rd party so ware that streams over RTSP, then the RTSP port (554) needs to be forwarded as well.
  • Page 21 In the Guard Viewer app, please register an account first, and then prompt to add device, and select scan. You can scan the QR code found on SUNBA the webpage to add the camera. SUNBA PTZ Note: the Register code appeared on the Guard Viewer app might be disguised to protect user privacy.

  • Page 22: Rtsp Live Streaming

    Please refer to your router instruction for detailed steps of setting up a VPN server. 8.Third Party Compatibility All SUNBA Performance Series cameras are ONVIF compliant with specification 17.12 so it should be compatible with any so ware that integrates standard ONVIF protocol. Below are examples with some of the most popular 3rd party so ware.

  • Page 23: Video Motion Detection

    Recording: Record the motion detection clip to the storage card. 10. Smart Event Con guration Sunba IP camera supports various types of intelligent alarms including Perimeter Protection, Object Detection, People Counting and Auto Tracking. Some detections would interfere with each other, and thus cannot be activated simultaneously. Below is the setup of each type of smart detection: Click Setup >...

  • Page 24: Perimeter Protection

    When configuring each smart event, please do not enable the function first. A er all settings are completed, click Save, and then enable it. When re-config it, you will also need to disable the function, then re-config, save and enable it. It's to avoid that the camera will continue to perform the function during the setting process, causing interference to the setting.
  • Page 25 Select Enter Area and then click Please leave it disabled. In the Detection Rule area, click to add a new detection area. Drag the borders of the box to set the intended position and range. You can set the sensitivity and level for the camera to decide whether to trigger an alarm.

  • Page 26: Object Detection

    Intrusion Detection Intrusion detection detects objects that enter a specified area in live video and triggers alarm when such an event is detected. Select Intrusion then click Please leave it disabled. In the Detection Rule area, click to add a new detection area.

  • Page 27: People Counting

    Detection Area: You can set to detect and capture face appeared in the selected area or in the full screen. Set snapshot sensitivity. The greater the value, the higher the sensitivity. Set snapshot mode. In Intelligent Recognition, the camera detects and snapshots the object automatically.

  • Page 28: Auto Tracking

    Select Crowd Density Monitoring and then click Please leave it disabled. Set report interval. Set crowd density alarm. Add a pre-designated view as a home position preset, please refer to Chapter 6.3 for detaills. Click Save and then enable it. Set the alarm-triggered actions and plan as required.
  • Page 29 Select Tracking Object. Select Filter Type. Set Max. Size and Min. Size under Filter Type. Only objects within the size range will betracked; others will be filtered and not tracked. The maximum width or height must be greaterthan the minimum width or height. Tracking settings.

  • Page 30: Forget Password

    Sunba Then please enter the “date” of the device and verify your email to obtain a temporary one-time Sunba Performance Series password. Note you must enter the “date” appears on the IP camera, which is not necessar- ily the same date that you are on. For example,...
  • Page 31 Me > General > Forget Device Password Method C If both of the above methods fail, please send the model, serial number, proof of purchase and date appears on the IP camera to support@sunba.net obtain a temporary access code. - 30 -...
  • Page 32 In this case, please kindly provide us with your tracking number so that we can match the return package and the refund will be manually processed within 24 hours. Please watch your email notifications. For any questions, don't hesitate to reach support@sunba.net SUNBA Technology ®...
