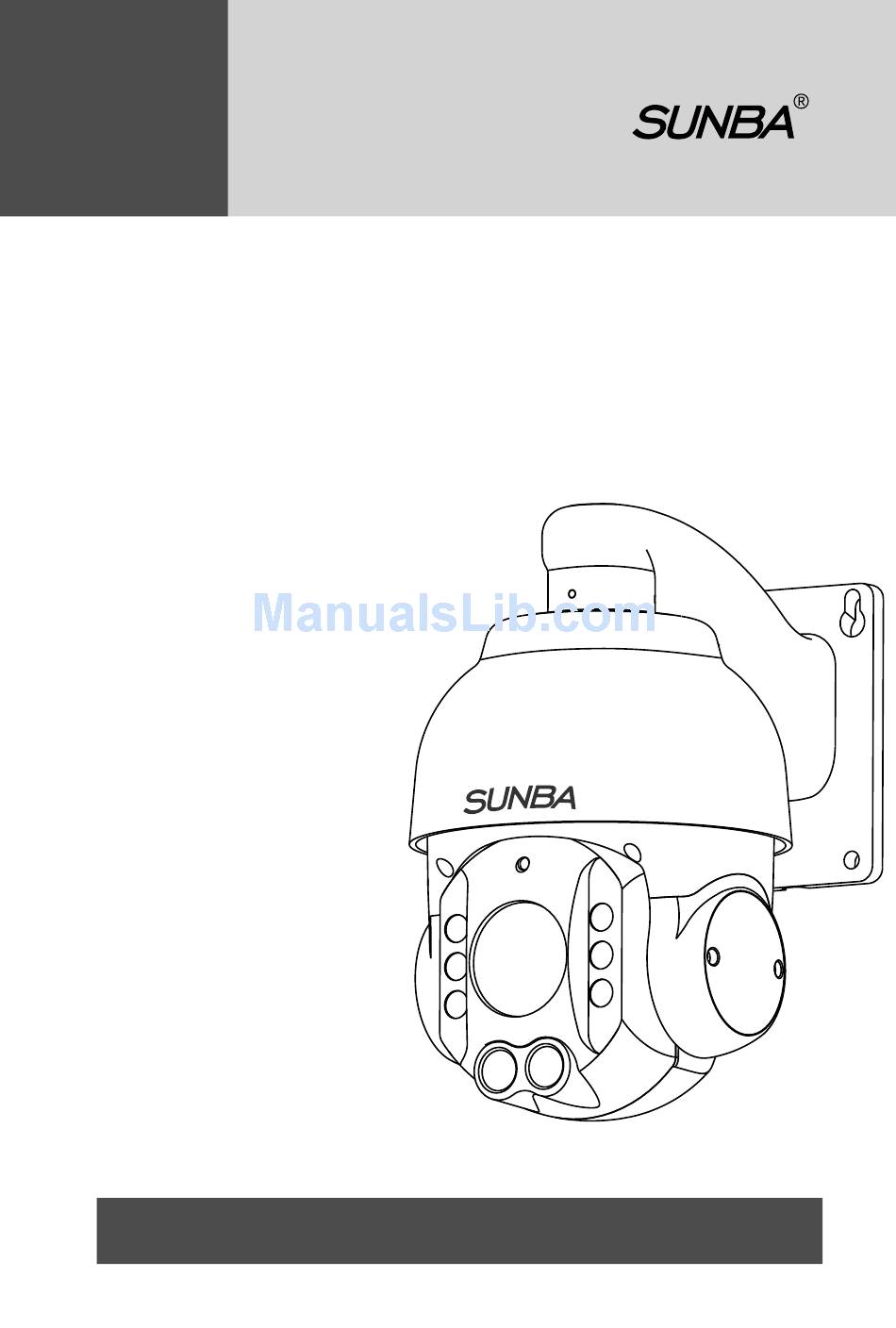

Page 1: User Manual
2016/11 Version 2.0 Dedicated PTZ Camera Professional SUNBA PTZ Camera ® Analog Series User Manual ( Analog-HD / CVBS ) Version 2.0 The following content is guaranteed to be up-to-date at the time of release. For latest information, please refer to http://sunbatech.com... -
Page 2: Camera Compatibility
www.sunbatech.com FCC Warning (U.S.A) The device has been tested in compliance with limits set by Part 15 of Federal Communication Commission (Class B). The operation of the device is thus limited by the following two conditions: 1) it is not permitted to cause harmful interference to any authorized radio communications, and 2) it must accept any interference it receives. -
Page 3: Camera Installation Tips
For example, if you have previously wired a xed lens bullet camera and you remove the old camera and plug it with Sunba PTZ dome camera, this is NOT a bench test given two units have different power requirements. - Page 4 www.sunbatech.com Recommended Power Extension Methods 1) AC cable: Make sure your AC power source is close enough to the camera. The easiest way is to get a premade AC extension cable (no distance limit). Power strip is an example. 2) DC cable: Make sure the wire is AWG18 or thicker (distance dependent). The thicker the cable, the smaller the electrical resistance and the longer it can run without voltage loos.
-
Page 5: Address Setting
(usually only AWG24) and a small distance can cause underpower. 3) Install the camera next to an electrical cabling which will cause interference and degrade video quality. 4) Dissemble the camera without notifying Sunba support team. This may void the warranty. Address Setting WARNING：Failure to set the address bit will cause inability to PTZ. -
Page 6: Camera Ptz Setup
What does XX + CALL Mean? Example for 95+CALL below: Every DVR has a built-in PTZ control panel on the screen. With Sunba’s DVR, for example, enter 95 in the preset box on the control panel and hit "start"... - Page 7 The “Iris + keys” to con rm, “Iris - keys” to exit the menu. The preset list is up-to-date at the time of release. It may have slight change with the actual one you receive. If there is any question, feel free to contact Sunba.
-
Page 8: Camera Osd Menu
Camera OSD Menu Model: 502S-AHD, 604-AHD, 801-AHD, 805-AHD, 801-22X, 805-22X, 801-36X, 805-36X, 507-AHD, 604-22X, 604-36X When you open the OSD menu with preset 95+CALL, use the up and down keys to move the cursor, left key to go back to the previous menu, right key to select and con rm. -
Page 9: Dwell Time
www.sunbatech.com value 1~31. Please read the “Special Preset List” to learn how to set left and right scan boundary. 5.DWELL TIME The time that the dome stays at each preset during patrol. Valid value 5 ~60 s. 6.LED MODE A. AUTO MODE: Turn on and off IR LED automatically according to the value of photoresister. -
Page 10: Troubleshooting
DVR compatibility before reading the form below. Incompatible DVR can cause problems such as B/W display, blurry image, no video or lack of PTZ function. Feel free to contact Sunba for double check. Built-in Self Test When powered up, the speed dome will automatically begin a... - Page 11 Warranty Claim Step Contact Sunba support team with the following information. This is not necessary if you want to send the camera to Sunba repairing center as our technician will fully check the camera. It is necessary, however, if you are requesting parts from Sunba for replacement.
-
Page 12: Warranty Statement
In this case, please kindly provide us with your tracking number so that we can match the return package and the refund will be manually processed within 24 hours. Please watch your email noti cations. For any questions, don't hesitate to reach support@sunba.net SUNBA Technology...
