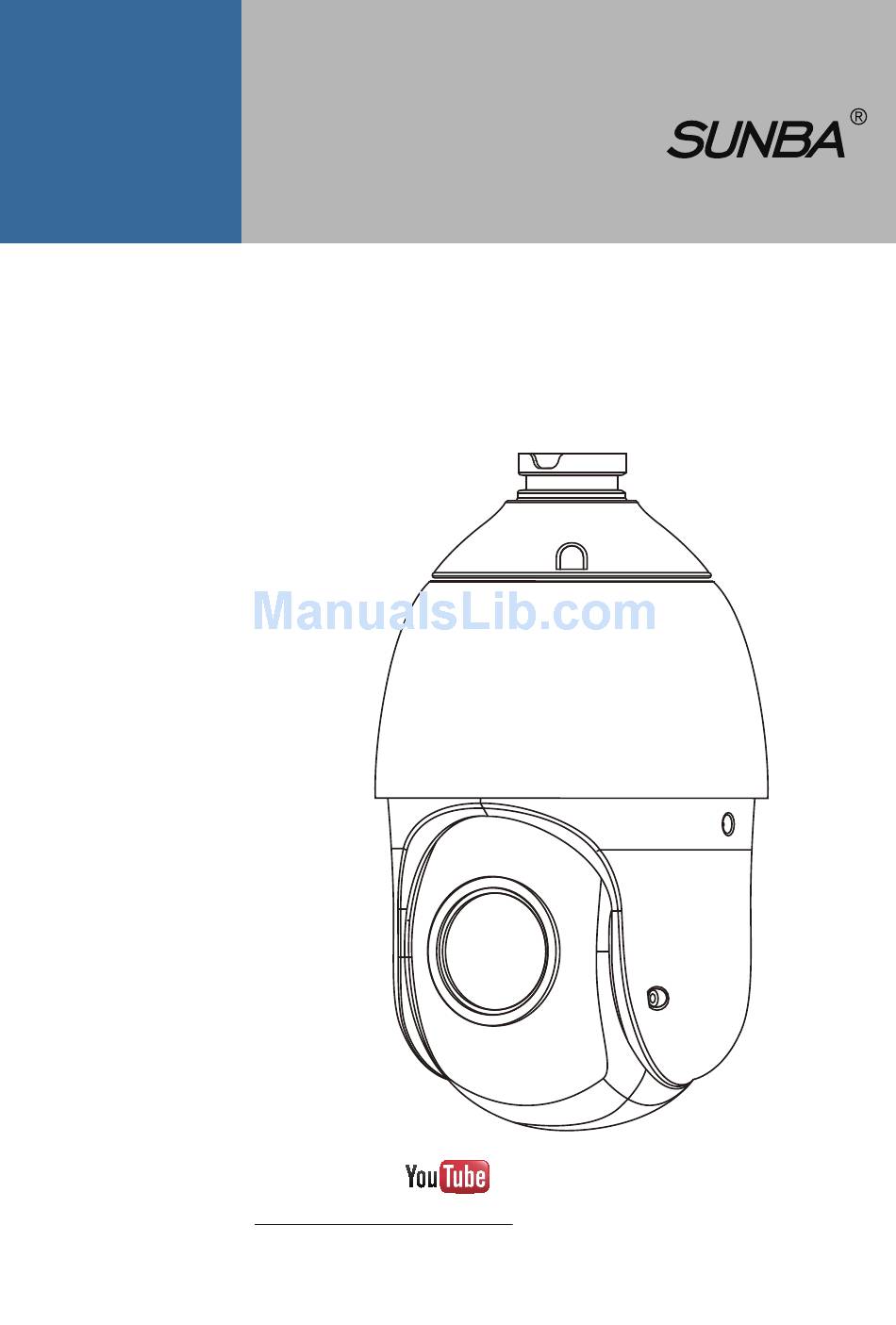

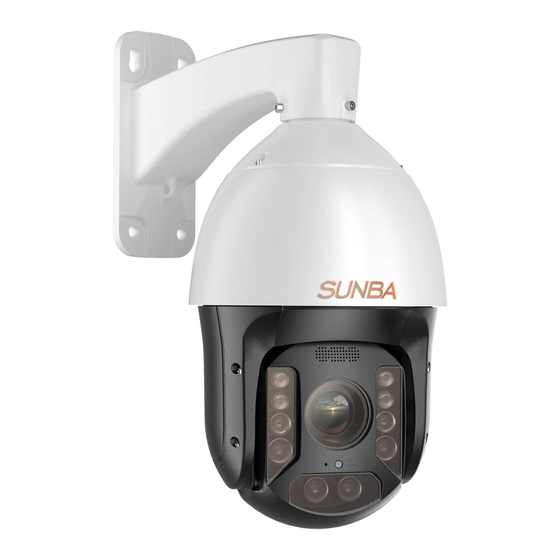

  • Page 1 2017/04 Version 4.0 Dedicated PTZ Camera Professional SUNBA PTZ Camera ® Network Series User Guide V4.0 Please go to http://guide.sunba.net to access the step by step YouTube video tutorials for Sunba IP PTZ camera setup.

  • Page 2: Table Of Contents

    FCC Warning (U.S.A) The device has been tested in compliance with limits set by Part 15 of Federal Communication Commission (Class B). The operation of the device is thus limited by the following two conditions: 1) it is not permitted to cause harmful interference to any authorized radio communications, and 2) it must accept any interference it receives.

  • Page 3: Camera Connection

    1. Camera Connection Phase 1: Bench Test ALWAYS test and setup locally before mounting outside! 192.168.1.10 DC12V 192.168.1.* 192.168.1.* What are you testing in this stage? Non-PoE camera Note PTZ dome cameras have much higher power requirements than bullet cameras, especially for ones with higher zoom-in capacity. Therefore, how the unit is powered can be critical to its functionality.
  • Page 4 Power Good Video and Control Good Tested Day and Night Guess we are ready to mount it outside. support@sunba.net Questions? Ask Phase 2: Mounting Outdoor Good, the camera is working correctly. Now I just need to pick the right extension cable and mount it outside!

  • Page 5: How To Power The Camera

    100V~250V DC 12V Power Adapter Extended AC Line Non-PoE Data in Wiring method: Router ELE (Force Electricity) 2.How to power the camera There is an old saying that PTZ cameras are POWER-ful. So do NOT pull the old setup from your bullet and apply it directly to your new PTZ. 2.1 For Non-PoE Camera (if you extend the power): The camera may not work properly if the power reaches the camera is be- -low 12V due to resistance along the extended DC line (distance depend-...

  • Page 6: Software Package

    -> not enough power -> reboot -> low light environment detected -> infrared on -> not enough power -> reboot …… (cycling) 3.Software Package 1. Visit: http://www.sunba.net/en/download/ 2. Select one of the web-drives. 3. Go to English-> Software and download the speci c software you want.

  • Page 7: Camera Network Con Guration

    4. Camera Network Con guration You must rst change the camera’s IP to match the IP of your router! Step 1: Understand the Goal of IP Con guration No matter what IP Camera Management Software you intend to use later, the rst step is to make sure your router, computer and the IP Camera are on the same subnet.
  • Page 8 Microsoft Windows (c)2015 Microsoft Corporation. All rights reseved. Connection-specific DNS suffix: C:\Users\Administrator>ipconfig Link-local iPv6 address: IPV4 address: Subnet Mask: Default Gateway: 10.0.0.1 Press enter key and locate the “Default Gateway” from the list: PC： Check gateway.sunba.net for video - 07 -...
  • Page 9 Modify IP Search MAC: Please refer to Chapter 3. to download VMS for Mac under English-> Software. 10 . 0 . 0 .15 Port 34567 192.168.1.10 Not Available 192.168.1.10:34667 Sunba Defa... 192.168.1.10 Not Available 192.168.1.10:34667 Sunba Submask 255.255.255.0 Gateway 10 . 0 . 0 .1...

  • Page 10: Camera Management By Computer

    ONVIF 8899, TCP 34567, HTTP 80 and RTSP 554. Those values must also be unique. 5.Camera Management by Computer Sunba’s free IP camera desktop enables you to con gure advanced fea- -tures of the camera such as accounts management, rmware upgrade and access to the full feature of the device.

  • Page 11: Before Login

    Download CMS from CD-ROM: English -> Software -> CMS Video Tutorial available from cms.sunba.net C. VMS for Windows & Mac Download CMS from CD-ROM: English -> Software -> VMS Video Tutorial available from mac.sunba.net Also support Xmeye protocol Make SUNBA Blue Iris (in Windows) - 10 -...

  • Page 12: Camera Management By Smartphone

    -deo and recording may work depending on speci c ONVIF version. 6.Camera Mobile & Remote Access Tips: Go to Sunba website FAQ page and type keyword “mobile”to gain the setup page for popular smartphone app such as XMEye (JFeye), TinyCam Pro, IP Cam Viewer.
  • Page 13 Find Your P2P Code by two methods: Note P2P Code = Cloud ID = Serial Number CMS: VMS for PC: Device Name: Sunba Group: Default Group Login Type: CloudlD Device Name 987dc021338***** Sunba UserName: admin 987dc021338***** User Name admin Vendor:...
  • Page 14 Type 2: Port Forwarding Please refer to portforward.sunba.net for more instructions. Please forward BOTH http port (80 by default) and TCP (media) port (34567 by default) and refer to the manual of your router for detailed steps of port forward in order to remotely access using a WAN IP.

  • Page 15: Preset, Patrol & Pattern

    Preset PTZ Preset Position Sunba dome cameras can set preset PTZ positions for which cameras can memorize and travel directly by calling the preset. Preset positions are represented by numbers. You need to “add” a preset and then “call” it.

  • Page 16: The Full Preset List

    preset3 preset2 Note: When pressing any direction key, the camera will stop the patrol, scan & pattern. preset1 8.The Full Preset List Special Preset Function 0~50 Preset Conventional Position Preset XXX + Add Preset Set preset XXX. XXX + CALL Call preset XXX.

  • Page 17: Camera On-Screen-Display Menu

    Check OSDlanguage.sunba.net to learn how to switch the dis- -play language of the OSD main menu from Chinese to English.
  • Page 18 Use preset 120+call to check the CURRENT LEVEL for 507. IR MODE 1.AUTO MODE: Turn on and off IR LED automatically according to the am- -bient darkness of photoresister. If the value of the ambient environment (CURRENT LEVEL) is ≥ the IR ON SENS, then the LED will be turned on aut- -omatically, vice versa.

  • Page 19: Camera Con Guration

    SET FRAME SCAN LEFT LIMIT POSITION IRIS OPEN CONTINUE SET FRAME SCAN RIGHT LIMIT POSITION IRIS OPEN CONTINUE This function enables the auto scan of the camera between a set left and right boundary. It can be set using PRESET 81+Add & PRESET 82+Add as well.
  • Page 20 Record: Set camera recording plan and mode. The “manual” and “st- -op” selection allows you to manually turn on and off, and the “timing” allows you to set the schedule where recording takes place. Video Motion: Enable motion detection alert formats (buzzer, email, recording, snapshot &...
  • Page 21 General: Change system language and date. Encode: Change resolution, bit rate and other factors that affect video quality and connectivity. Enable/Disable audio. Network: Con gure the camera's IP address, gateway, DNS etc. NetService: Con gure DDNS, email alert, WiFi and other services. GUI Display: Customize camera name, time title and other display setting.

  • Page 22: Camera Infrared And Night Vision

    Reboot: Restart the camera. Upgrade: Upgrade the rmware of the camera. You need to download the upgrade the le (“bin” format) rst. HDD Info: The information of the storage device (TF card). LOG: Access the events, alarm and activity record of camera.
  • Page 23 B.Manual Mode: Turn on and off the IR LED manually. This can be accomplished using special presets 100~103. Please check specialpreset.sunba.net NOTE: Unless you decide to turn the IR off permanently, the difference between the LED ON and LED OFF values must be at least 30 to avoid problems of IR LED blinking.

  • Page 24: Account Management

    12. Account Management Camera accounts can only be managed by its native clients. Third party software will not be able to modify any accounts information as it doesn’t have access to the camera’s private protocol. Default Camera Account Information: User name: admin Password: Modify your password here! Modify your password here!

  • Page 25: Motion Detection

    Write Log: A log will be popped on the screen every time an alert is received. FTP: See Chapter 14. Phone Report: Enable Sunba XMEye app noti cation (need to setup on app side as well) 14. FTP Communication You can upload motion detection snapshots and videos to your FTP.
  • Page 26 We would suggest that you control the Max File Length to ensure the stable upload of the le. Step 3. Enable the motion detection (in Video Detect or Video Motion). See Chapter 13. Then enable the FTP option. Snapshots: You must also enable snapshot in Video Detect. Videos: You must also enable record in Video Detect.

  • Page 27: Reset The Camera

    Download the third party tool called ONVIF Device Manager Option 4: Reset the password Ask support@sunba.net to provide the reset tool and the super password of the day. Option 5: Telnet reset Ask support@sunba.net to schedule a remote TeamViewer session.

  • Page 28: Cable Waterproof Measures

    16. Cable Waterproof Measures The camera itself is IP 66 Waterproof Rating. However, the cable connect- -ors may still have exposures to water under different applications. It is always recommended for users to take precautions to protect the cable connectors of the camera. Below are 3 popular methods: 1.

  • Page 29: Warranty

    In this case, please kindly provide us with your tracking number so that we can match the return package and the refund will be manually processed within 24 hours. Please watch your email noti cations. For any questions, don't hesitate to reach support@sunba.net SUNBA® Technology - 01 -...
