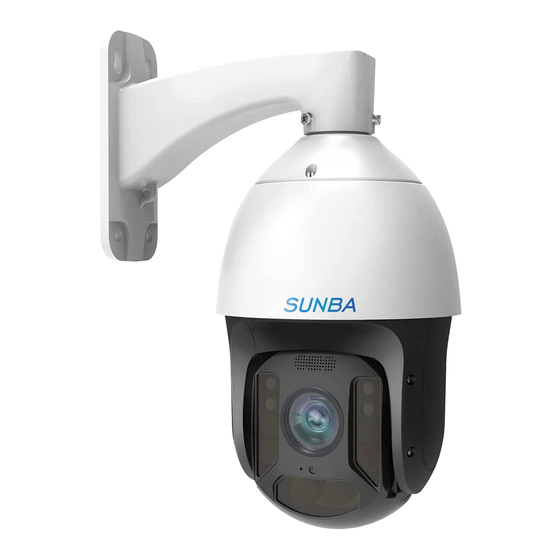

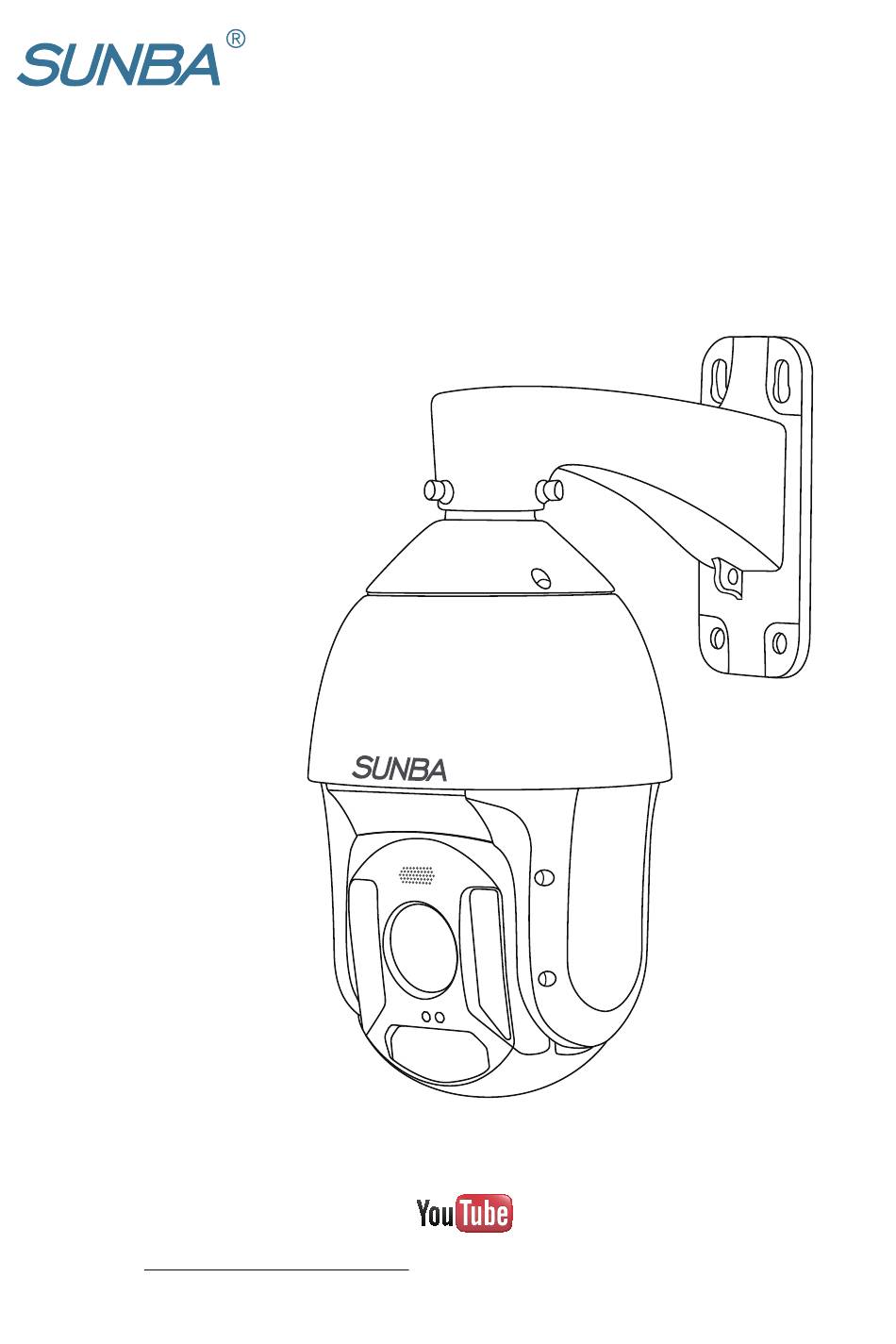

- Page 1 Illuminati Auto Tracking Network PTZ Camera User Manual 2.0 2020/06 Visit http://autotrack.sunba.net to access the step by step YouTube video tutorials for setting up Sunba Illuminati.
-
Page 2: Table Of Contents
FCC Warning (U.S.A) The device has been tested in compliance with limits set by Part 15 of Federal Communication Commission (Class B). The operation of the device is thus limited by the following two conditions: 1) it is not permitted to cause harmful interference to any authorized radio communications, and 2) it must accept any interference it receives. -
Page 3: Model Specification
1. Model Specification Model Illuminati Image Sensor 1/2.8” Progressive SONY CMOS 50HZ: 25fps (1920×1080) 60HZ: 30fps (1920×1080) Resolution 50HZ: 25fps (1280×720) 60HZ: 30fps (1280×720) Focal Length 4.8 ~120mm Angle of View 57.6 ~ 2.5 Degrees (Wide-angle ~ Telescope) Aperture Range F1.6 ~ F3.5... - Page 4 Please refrain from disassembling the unit before contacting us. Thanks for your cooperation. Connection Good Power Good Video and Control Good Tested Day and Night Guess we are ready to mount it outside. Questions? Ask support@sunba.net - 02 -...
- Page 5 -> reboot -> low light environment detected -> infrared on -> not enough power -> reboot …… (cycling) 2.3 Install the TF Card Illuminati camera comes with a built-in micro SD card slot that can store videos and snapshots. Remove the 4 screws to take Insert the TF card as directed off the camera back cover.
- Page 6 100V~250V POE+ Data out ≥30W POE+ Data in 802.3at Wiring method: ELV (Extra-LowVoltageSystem) Router Please use Sunba 65W high power injector if you are runing over 200ft. 100V~250V DC 12V Power Adapter ≥18 wire gauge Non-PoE Data in Wiring method:...
-
Page 7: Connection And Installation
first. The SADP tool (Mac & Windows) can be retrieved from the CD-ROM or from Sunba website (under download section: https://sunbatech.com/download/ ) Below is a screenshot of the tool and the “IPv4 Address” column stands for the IP of the camera. -
Page 8: Web Interface
Port A web plugin must be installed manually for all browsers. The plugin file can be obtained from Sunba website or from the CD-ROM came with the camera. In the login page, please input the default username/password of the camera: Click “Login”... - Page 9 Install and open the software, which will ask you to assign a user for the iFollow client. Note this is NOT the credential for the camera. The purpose of creating an account for iFollow client is to avoid unauthorized access to the surveillance monitor software.
- Page 10 Manually assign the camera to a group In the Import menu, select the camera on the left hand side, and create a group folder on the right hand side such as “Home”, “Office” or “Sunba” by the characteristics of cameras for categorizing purpose.
- Page 11 ② ① ③ Click “Import” to import the camera to the specified group. Next, please go to the Main View page and double click the camera to start live view. ① ② - 09 -...
-
Page 12: Smartphone App
3.3 Camera Management by Smartphone App IOS & Android: Guarding Vision Step 1. Select Country and Region. Please note the regions cannot be changed once your account has been created. Step 2. Create a cloud account and login. You can authenticate the account through either phone number or email address. - Page 13 Step 4. Add Device Tap “Add Device” to scan the QR barcode on the silver sticker on the camera or its box, or tap the “+” icon on the top right corner to manually enter the camera serial number. The serial number (aka. P2P code) can be found from the silver sticker.
- Page 14 Step 5. Live View Choose “Guarding Vision Domain” as the adding type, and once you add the serial number, the app may ask you to enter the verification code (see step 3) before you are able to watch live view. The default code is “admin1”. Tap the device name under “...
-
Page 15: Static Ip Management
5. PTZ, Preset and Patrol PTZ Preset Position Sunba dome cameras can set preset PTZ positions for which cameras can memorize and travel directly by calling the preset. Preset positions are represented by numbers. You need to “add” a preset and then “call” it. - Page 16 In the web interface, users can double click the preset name on the list to customize the name for the position preset such as front gate, back yard or parking lot. Special Presets Special presets are preset numbers associated with advanced commands that cameras can follow to enable settings such as changing infrared LED night vision mode, setting up auto tracking etc.
-
Page 17: The Full Preset List
6. The Preset List Preset No. Name Call Delete Park Act Note Only preset 1-32 support Park Act. 1-49 Position Presets A surveillance scene (preset 50) and Intrusion Tracking an intrusion defense region must be created first. A surveillance scene (preset 51) and LineCross Tracking a line must be created first. -
Page 18: Auto Tracking
7. Auto Tracking Smart tracking 7.1 An Overview of the Tracking Algorithm The camera can be set in one of 3 tracking modes: 1) preset tracking, 2) line cross tracking or 3) intrusion tracking. The tracking will begin once a motion is detected (with adjustable sensitivity), and will follow the moving object for a set duration (adjustable) and return back to the pre-configured position. - Page 19 7.2 Preset Tracking Preset tracking is the same as home position tracking. The PTZ camera will track a moving object at a pre-designated view. For example, if the camera is installed at the house front, users can program the camera to start tracking an object while the camera is exactly facing the front gate.
- Page 20 7.3 Line Cross Tracking Line cross tracking is an upgrade to conventional preset tracking to improve tracking efficiency. Instead of tracking any moving object at the designated view, it would only start tracking if a virtual line from the view has been crossed by a moving object.
- Page 21 4.Set the Arming Schedule The arming schedule is used to determine the alarm linkage actions associated with line cross tracking. If it is not activated, the camera is not able to send alarm emails, notify surveillance center or trigger recording. Drag the time bar to adjust the arming schedule: 5.Set up Linkage Methods The linkage method sets up a series of available actions the camera can do...
- Page 22 6.Call preset 51 to activate the line cross tracking Select preset 51 from the list and hit the call button. Once preset 51 has been called, a text prompt will appear on the upper left corner, which indicates the tracking has been activated. After that, the camera will begin tracking whenever a moving object crosses the cordon.
- Page 23 [Draw Area] Draw a quadrangle as the perimeter of the protected region [Clear] Clear any existing regions 3. (Optional) Add additional regions if applicable. Users can add up to 4 regions by drawing different tetragons. 4.Set the Arming Schedule: Please refer to chapter 7.3 (Step 4). 5.Set up Linkage Methods: Please refer to chapter 7.3 (Step 5).
-
Page 24: Remote Access
8.1 P2P Cloud P2P technology allows you to remotely connect, and configure your pan tilt zoom camera even though you are thousands miles away through Sunba encrypted cloud server. Below we will introduce how to use P2P to connect to your device through Guarding Vision app and iFollow desktop client. Note in both apps, since the camera is registered on US servers, your account will be automatically migrated if it is registered in other regions. - Page 25 Register a cloud account and login. - 23 -...
- Page 26 LAN (Local Area Network). For Sunba Illuminati, both HTTP/ONVIF port (80) and TCP/Media port (8000) need to be forwarded. However, this method is not the most secured way for remote control.
-
Page 27: User Management
“Account Security Setting” to enter security questions and a password recovery email. A default set of security questions have been pre-set for the camera for “ your favoritate automobile brand”, “your favoriate flowers”, “your first mobile phone brand”. The answer for all 3 questions is “sunba”. - 25 -... -
Page 28: Motion Detection
Click “General” to set the maximum online connection. Under the user management page, administrator can also see the list of online user. 10. Motion Detection To set up motion detection, please go to Configuration-Event-Basic Event-Motion Detection and check “Enable Motion Detection”. Motion detection is automatically disabled when the camera is set to advanced tracking features. - Page 29 [Draw Area] Draw red squares to mark motion detection zone and avoid any unwanted alert zone. [Clear All] Clear all drawings. [Scheduled Image Setting] This is set to customize the day/night motion trigger sensitivity. The “auto switch” option will automatically separate the day/night profile when the camera enters night vision mode.
-
Page 30: Ftp Communication
11. FTP Communication FTP can be setup in Configuration-Network-Advanced Setting-FTP. - 28 -... -
Page 31: Cable Waterproof Measures
[Server Address] The FTP service address, please enter without the “ftp://” prefix. [Port] Enter the port of your FTP server. The default value is usually 21. [Directory Structure] You can choose to save captured pictures in the root directory, parent directory or child directory. For parent directory and child directory, you will be asked to specify the name of the directory. -
Page 32: Onvif Integration
1. Sunba Illuminati has waterproof ethernet kit shipped together with the camera. To apply the waterproof kit, you have to cut the crystal head, thread the ethernet cable through the waterproof kit, and then finally use crimper tool to add the crystal head back to the cable. -
Page 33: Smartphone Push Notification
To login the camera through an ONVIF program/device, you need to input the camera’s IP, ONVIF username/password you set above as well as the ONVIF port. The ONVIF port for Sunba Illuminati is the same as the HTTP port. The default value is 80. -
Page 34: On-Screen-Display
Check this to receive push notification. 15. OSD Menu and Night Vision The On-Screen-Display menu for Sunba Illuminati is only designed to customize the night vision activation mode and threshold. How to activate and control the OSD? Call to activate the OSD Menu. - Page 35 AUTO MODE is selected by default. B.MANUAL: Turn on and off the IR LED manually. This can be accomplished using special presets 100~103 as well. Please check specialpreset.sunba.net IR ON SENS The adjustable darkness threshold to turn on the IR LED, default is 210.
-
Page 36: Reset The Camera
“ your favoritate automobile brand”, “your favoriate flowers”, “your first mobile phone brand”. Users can use that to reset their password unless the camera has been reset before. The answer for all 3 questions is “sunba”. Alternatively, use SADP tool and select Security Questions Verification as the Verification Mode, answer all 3 questions to set a new password. - Page 37 If you don’t have upfront security questions set, you can send security verification files to Sunba support team. It is recommended to do so while Sunba support team is online as the safety code might expire. Schedule a time with Sunba support via support@sunba.net or send a message to our Facebook page.
- Page 38 3) After you receive the verification key file from Sunba, please import it as soon as possible otherwise the file may expire. - 36 -...
- Page 39 - 37 -...
-
Page 40: Warranty
In this case, please kindly provide us with your tracking number so that we can match the return package and the refund will be manually processed within 24 hours. Please watch your email notifications. For any questions, don't hesitate to reach support@sunba.net SUNBA Technology ®...
