Handling
1
Adaption
5
Power
2
Address
Status
3
4

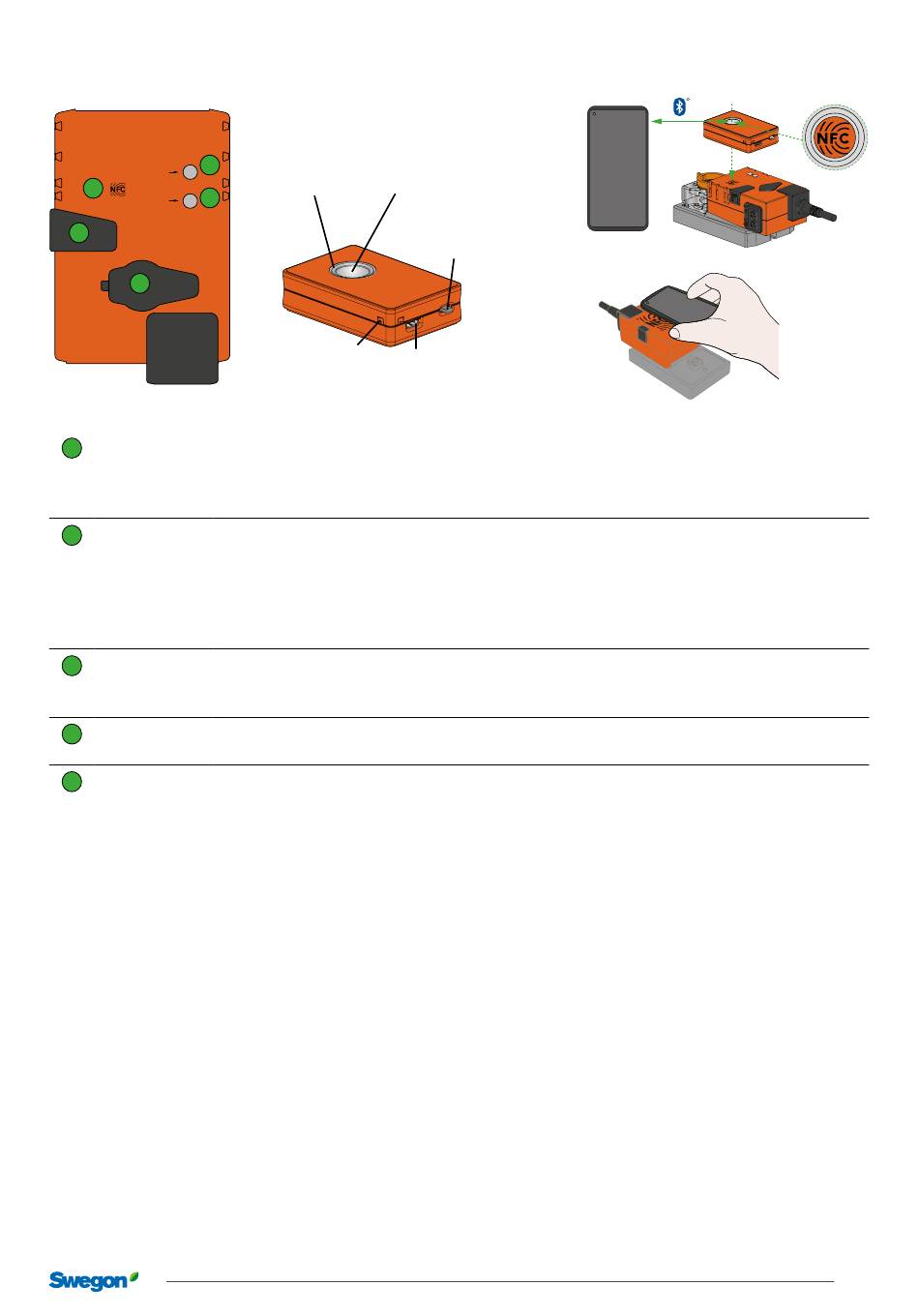

Figure 10. Belimo actuator.
Pushbutton and LED lighting green
1
Off:
No power or fault
On:
In operation
Activates rotation angle adaptation
Button press:
Pushbutton and LED lighting yellow
2
Off:
Normal operation
On:
Adaptation or synchronisation process is active
Flickering:
MP communication activated
Flashing:
Addressing request sent to MP client
Button press:
Confirmation of addressing
Release button
3
Pressed button:
The actuator is disengaged, the motor stops, manual overriding possible
Released button:
Synchronisation starts, followed by standard mode
4
Service port
For connection of the hand-held terminal ZTH EU and PC-Tool
NFC logotype
5
For connection to Belimo Assistant App
Function
ZIP-BT-NHC started up
ZIP-BT-NHC is in operation
Charging battery (ZIP-BT-NHC switched off) Green
NFC, Smartphone – Belimo Assistant App
Settings and diagnostics for the actuator can be carried out contactless via NFC. This requires an Android or iOS smartphone, the ZIP-BT-NFC
dongle for Bluetooth contact with smartphones without NFC, as well as Belimo Assistant App.
To find the reception range with ZIP-BT-NFC the NFC logotypen needs to be visible through the positioning port, see figure 12.
When using a smartphone with NFC contact the smartphone needs to be centered above the NFC logotype on the actuator, see figure 13.
ZIP-BT-NFC must be secured to the unit with the attachment belt to avoid injuries to users and damage to property.
ZTH EU / PC-Tool
Settings and diagnostics for the actuator can be carried out using Belimo PC-Tool or the hand-held terminal ZTH EU.
When using the PC-Tool software, ZTH EU (USB) acts as an interface converter.
Positioning port
for NFC antenna
LED display
Mounting attachment for
Micro USB charging
attachment belt
socket
Figure 11. ZIP-BT-NHC.
LED colour
Green
Green > red
Green
Blue
White
White
Green
Switch
Figure 12. Bluetooth contact for smartphones.
Figure 13. NFC contact for smartphones.
Light pattern
Meaning
Flashes once
Battery OK (>30%)
Flashes once
Battery low, charging required
Flashes every 5 seconds
Standby mode
Flashes once
Bluetooth® connection established (pairing)
Fixed
Searching for NFC tag
Flashing
NFC connection active
Flashing
Battery being charged
Fixed
Battery charged
20230929
Swegon reserves the right to alter specifications.
