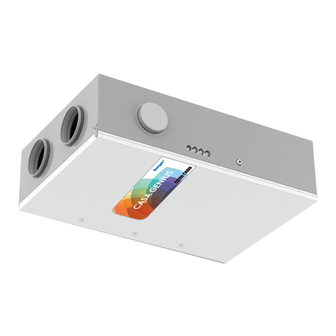

CASA R4-C GENIUS
Installation and commissioning instruction
Notice d'installation et de mise en service
The delivery includes
• Ventilation unit
• Mounting brackets, 4 pcs.
• Cover plugs, 3 pcs.
• Quick Guide
• Installation and commissioning instruction
Standard connections
• Power cord with earthed plug (2 m)
• Cable for SEC/SEM connection module with RJ45
connector (2m)
• Modular cable with RJ9 connector (1.5 m)
• Freely configurable I/O contacts for connection of
accessories (2 pcs.)
X_NA_R4C_a-i
eManual
Inclus à la livraison
• Unité de ventilation
• Consoles, 4 pces
• Embouts, 3 pces
• Tableau de sélection rapide
• Instructions d'installation et de mise en service
Raccords standards
• Cordon d'alimentation avec prise de terre (2 m)
• Cable du module de raccordement SEC/SEM avec
connecteur RJ45 (2 m)
• Câble modulaire avec connecteur RJ9 (1,5 m)
• Contacts I/O configurables librement pour raccordement
d'accessoires (2 pces)
Swegon CASA App
Advertisement
Table of Contents
Related Manuals for Swegon CASA R4-C GENIUS
Summary of Contents for Swegon CASA R4-C GENIUS
- Page 1 CASA R4-C GENIUS Installation and commissioning instruction Notice d’installation et de mise en service Inclus à la livraison The delivery includes • Ventilation unit • Unité de ventilation • Mounting brackets, 4 pcs. • Consoles, 4 pces • Cover plugs, 3 pcs.
-
Page 2: Table Of Contents
R4-C Genius Content | Sommaire Important information ..............................3 Informations importantes .............................. 4 Preparations before installation | Préparatifs préalables à l’installation ................5 Ceiling mounting | Montage au plafond ......................6 Wall mounting | Montage mural ........................... 7 Ducts | Gaines ................................8 Enabling kitchen bypass | Activer le by-pass de cuisine ..................8 Duct insulation | Isolation des gaines .......................... -
Page 3: Important Information
Important information This document is intended for everyone involved in the installation work for or the use of a Swegon CASA venti- lation unit. Read Instructions for Use before you use the ventilation unit. Save the Instructions for Use for future use. -
Page 4: Informations Importantes
Ce document est destiné à toute personne impliquée dans l’installation ou l’utilisation d’une unité de ventilation Swegon CASA. Nous recommandons de lire le mode d’emploi avant toute utilisation de l’unité de ventilation. Conserver les instructions d’utilisation pour consultation ultérieure. Ce document est disponible sur notre site Web. -
Page 5: Preparations Before Installation | Préparatifs Préalables À L'installation
R4-C Genius Unboxing The ventilation unit is delivered in a cardboard box. Remove the staples to open the box cover. The best way to take the unit out is by opening the vertical seam of the cardboard box and spreading it out from around the unit. Lifting the ventilation unit The ventilation unit is heavy and is not intended to be moved by hand. -
Page 6: Ceiling Mounting | Montage Au Plafond
R4-C Genius Ceiling mounting The unit can be installed, to a roof structure that supports the weight of the unit, by using the mounting brack- ets included in the delivery. The mounting angles should be attached to the unit with the bolts included in the delivery. -
Page 7: Wall Mounting | Montage Mural
If the wall is composed of vertical studs and wallboards, the wall must be reinforced with horizontal studs (A) that will support the weight of the unit. Swegon also recommends that the wall be insulated with mineral wool or similar insulation (B) for preventing sound from propagating to other rooms. The unit can be installed either way. -
Page 8: Ducts | Gaines
R4-C Genius Ducts Check whether the ventilation unit is a left or right-hand version, to be sure to connect the ventilation ducts to the correct duct connections. Install the ducts according to the ventilation drawings. Do not mount ducts directly against structural elements to avoid the propagation of sound. -
Page 9: Duct Insulation | Isolation Des Gaines
R4-C Genius Duct insulation Insulate the ventilation ducts to prevent leakage of heat, cold and sound, as well as water condensing. Fire insulate the ducts according to national regulations. Pay particular attention to insulate cold ducts without gaps in the insulation, so that moisture cannot condense. The thickness of the insulation must be sufficient for the insulation material, for the climate area and according to local regulations. -
Page 10: Electric And Control Cables | Câblages D'alimentation Électrique Et De Commande
R4-C Genius Electric and control cables The ventilation unit has a power cable with earthed plug. The plug serves as the ventilation nit’s main switch and should be connected to an easily accessible wall socket. The unit also has a separate operating switch. There is a modular cable on top of the ventilation unit to control the unit. -
Page 11: Commissioning | Mise En Service
Commissioning Commissioning is done either from the commissioning menu on the control panel or with the Service CASA Swegon mobile application connected to the panel. The application includes a commissioning wizard and option to save the settings for later use. - Page 12 R4-C Genius Air flow adjustment The easiest way to determine the fan control percentages for each ventilation mode is to use the air Flow com- missioning wizard. The function evaluates the initial values of the control for the Home mode, based on the given airflows.
- Page 13 PW: 1, 2, 3, 4 eManual Swegon CASA App Automation connections The unit has a built-in Modbus RTU interface. (Requires an SEM or SEC unit for connection.) More detailed instructions for connections and settings can be found in the mobile application and eManual. A link to the Modbus registers can be found below.
-
Page 14: External Connections | Connexions Externes
IO5 est de type mise à la terre, l’autre côté du relais doit être connecté à du 24 VDC. Les modules SEM et SEC possèdent une sortie (AO4) analogique (0... 10 V) pouvant servir pour commander des systèmes et périphériques externes. External connections PW: 1, 2, 3, 4 eManual Swegon CASA App All rights to changes reserved. 2023-10-03... - Page 15 R4-C Genius External connections | Connexions externes Digital input IO1 - IO5 (pulse) Modbus A Modbus B IO 3 IO1 - IO5 (NO) IO1 - IO5 (NC) IO 4 IO 5 AO 4 5 V Out Analog input 0-10 V IO1 - IO5 (AI) 0-10 V AO 4...
-
Page 16: Air Flows | Débits D'air
R4-C Genius Air flows | Débits d’air EN 13141-4 R4-C Supply airflow | Air soufflé Extract airflow | Air extrait 100 % 90 % 80 % 70 % 60 % SFP 1,8 SFP 1,5 50 % 40 % SFP 1 30 % Air flow | Débit d’air All rights to changes reserved. -
Page 17: Electrical Wiring Diagram | Schéma De Câblage
R4-C Genius Electrical wiring diagram | Schéma de câblage R4-C YELLOW/GREEN GREEN YELLOW/GREEN Mains BROWN BLUE BROWN BLUE SEC / BLACK SET2 WHITE GREEN X10 Supply fan X15 BP X16 F X14 Sensor package SET1 5V/24V X11 Exhaust fan X12 I2C X9 Rotor Rotor motor... -
Page 18: Measurements | Mesures
R4-C Genius Measurements | Mesures R4-C 1094 mm 1050 mm Weight of the unit: Longueur de l’unité: 70 kg All rights to changes reserved. 2023-10-03... - Page 19 R4-C Genius 2023-10-03 All rights to changes reserved.
