REACT V BMP
Connections
1-2 – Supply voltage
1-3 – Control signal (Y)
1-5 – Actual value signal (U)
For further calculations of Y and U see the formulas on page 10.
Load on output 5: max 0.5 mA
AC 24 V
–
+
DC 24 V
a
1
2
BK
RD
-
+

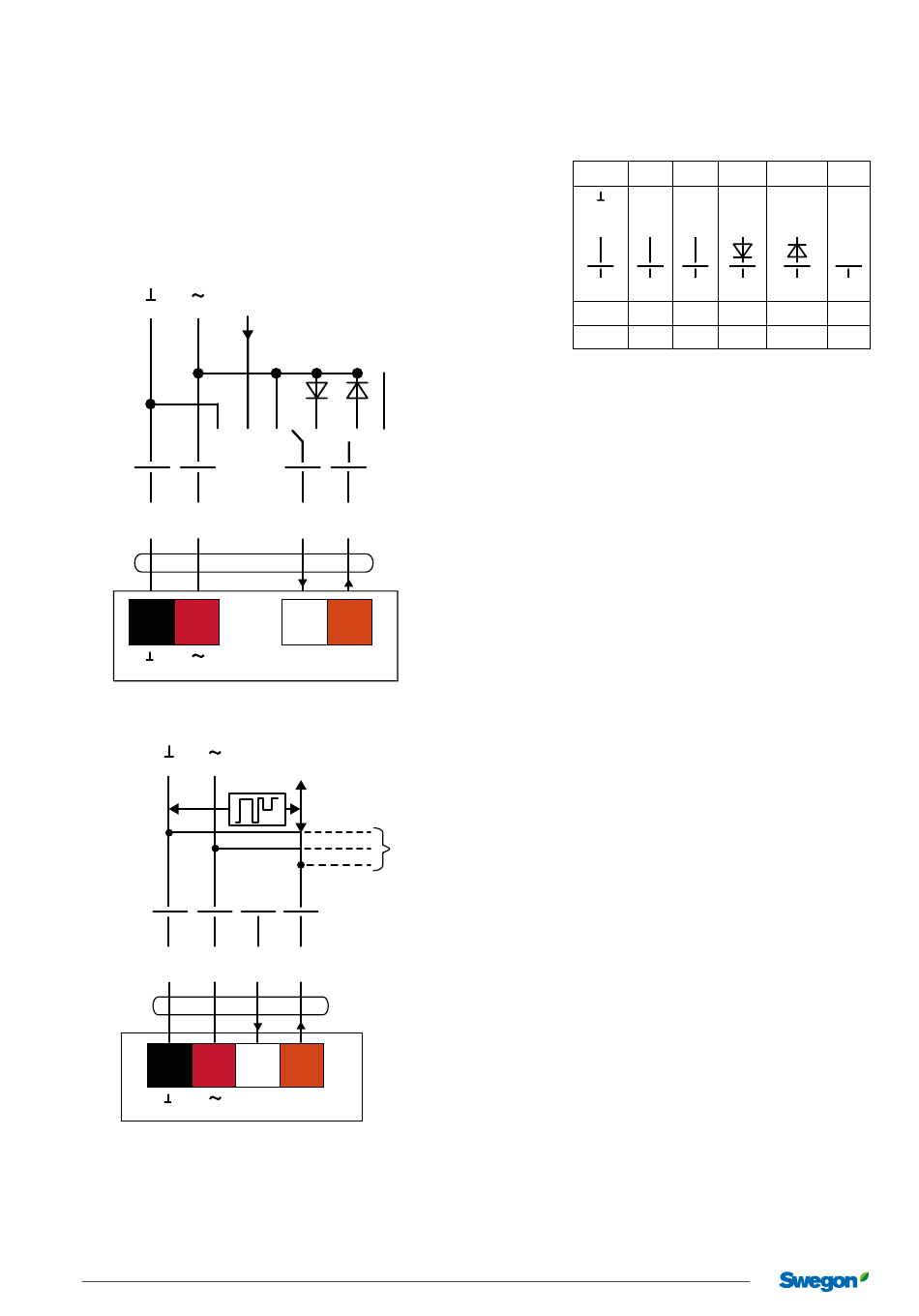

Figure 8. Wiring diagram.
–
+
1
2
BK
RD
-
+
Figure 9. Wiring diagram MP-Bus.
6
Swegon reserves the right to alter specifications.
24 V AC/DC
0..10/(2..10) V DC
0..10/(2..10) V DC
b c
d
e f
3
5
WH OG
Y
U
MP
A)
3
5
WH OG
Y
U
Regulation and forced control via
analogue control signal
See connection in the wiring diagram, Figure 8.
a
–
Signal
3
Mode 2...10 V
Closed Vmin
Mode 0...10 V
Vmin
Control signal 0-10 V DC / 2-10 V DC
1
Positive half-wave, only AC
2
Negative half-wave, only AC
3
Mode 2-10 V: Closed damper < 0.1 V
Additional actuators and sensors (max. 8).
20230929
b
c
d
e
˜ ˜
˜
+
3
3
3
3
Vmax Open
Closed
1
2
Vmin
Vmax Open
Closed
1
2
f
3
Vmin
3
Vmin
3
