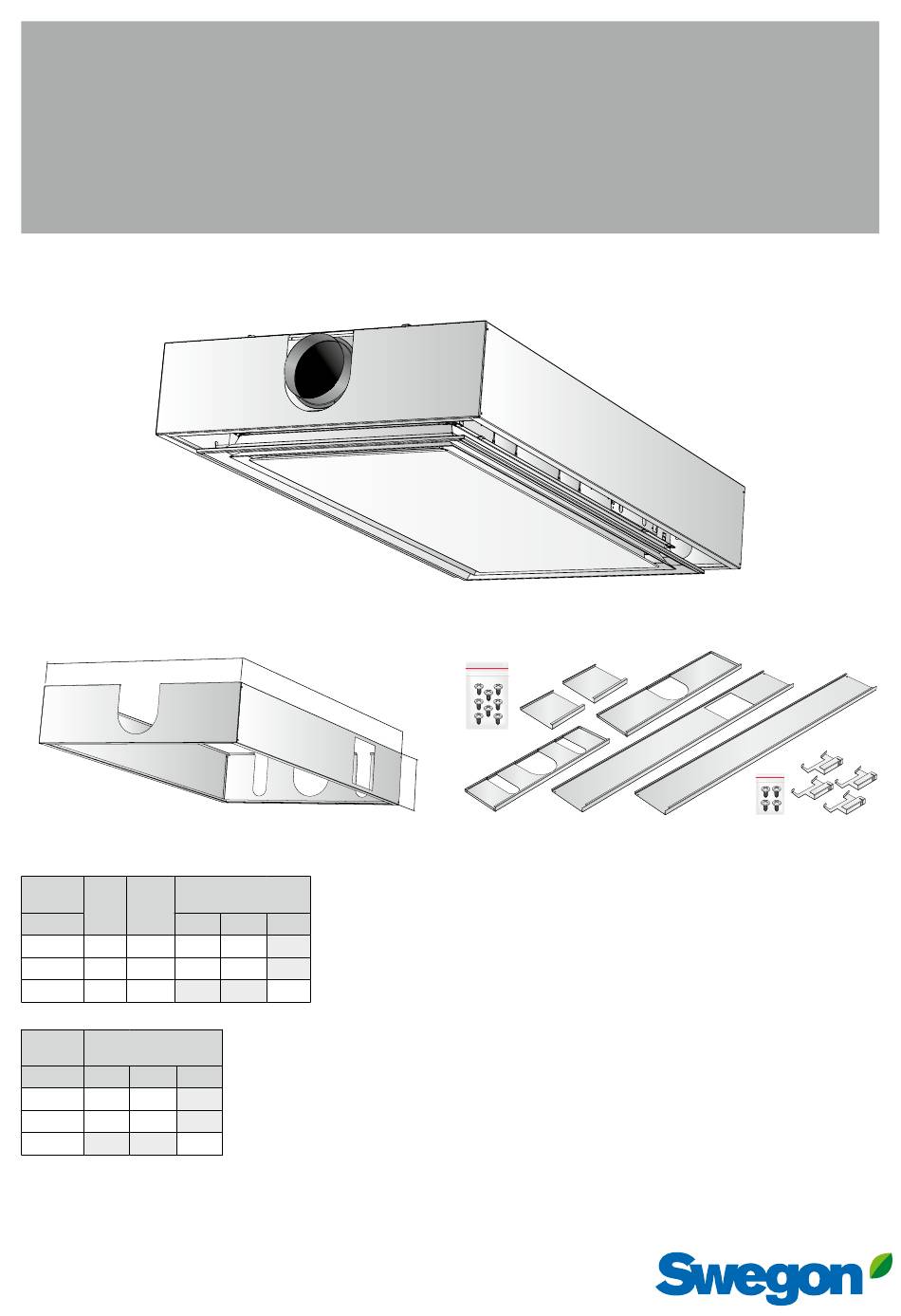

PARASOL Z DK
Installation of design kit
Refers to design kit fitting PARASOL Zenith, PARASOL Zenith VAV, REACT Parasol Zenith and WISE Parasol Zenith
X
Product
X
Y
(mm)
(mm)
Size
ø 125
600
713
715
188
1200
713
1315
188
1800
713
1915
Product
Weight
(kg)
Size
ø 125
ø 160
ø 200
600
3,931
4,287
1200
5,249
5,775
1800
8,398
Y
H
(mm)
ø 160
ø 200
218
218
259
H
The packaging contains the following items
2 x long sides
2 x short sides
2 x cover plates
4 x mounting brackets
1 bag containing:
8 screws for installation of panel sides
4 screws for installation of brackets
11/09/2024
Art. 942428094
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Swegon PARASOL Z DK
Summary of Contents for Swegon PARASOL Z DK
- Page 1 PARASOL Z DK Installation of design kit 11/09/2024 Art. 942428094 Refers to design kit fitting PARASOL Zenith, PARASOL Zenith VAV, REACT Parasol Zenith and WISE Parasol Zenith The packaging contains the following items Product (mm) (mm) (mm) 2 x long sides Size ø...
-
Page 2: Protective Equipment
Swegon reserves the right to make design changes. 11/09/2024... - Page 3 2. Select groove A for product with air connection ø125, groove B for air connection ø160. The larger bracket with groove C is used for air connection ø200. Screw all four brackets into place with one screw in each. 11/09/2024 Swegon reserves the right to make design changes.
- Page 4 For installation carried out by one fitter If you are working alone, it is easier if you install the parts individually. 3. Raise the two long sides 4. Hook the two long sides into the bracket Swegon reserves the right to make design changes. 11/09/2024...
- Page 5 6. Then raise one short side at a time and ensure that the ends of the short sides are placed on the inside of the long sides Screw the long and short sides together with two screws in each corner. Use a Phillips screwdriver and tighten to 2 Nm 2 Nm 8. Install cover plates 11/09/2024 Swegon reserves the right to make design changes.
- Page 6 10. Move the four sides together and ensure that the ends of the short sides are placed on the inside of the long sides 11. Screw the long and short sides together with two screws in each corner. Use a Phillips screwdriver and tighten to 2 Nm 2 Nm Swegon reserves the right to make design changes. 11/09/2024...
- Page 7 Design kit PARASOL Z DK 12. Raise the assembled design kit and hook it onto the brackets. 13. Install the cover plates For installation of the coanda frame, see separate installation instructions. 11/09/2024 Swegon reserves the right to make design changes.
- Page 8 Design kit PARASOL Z DK Swegon reserves the right to make design changes. 11/09/2024...
