Swegon REACT V BMPa Instructions For Use Manual page 11

Replacing the damper motor

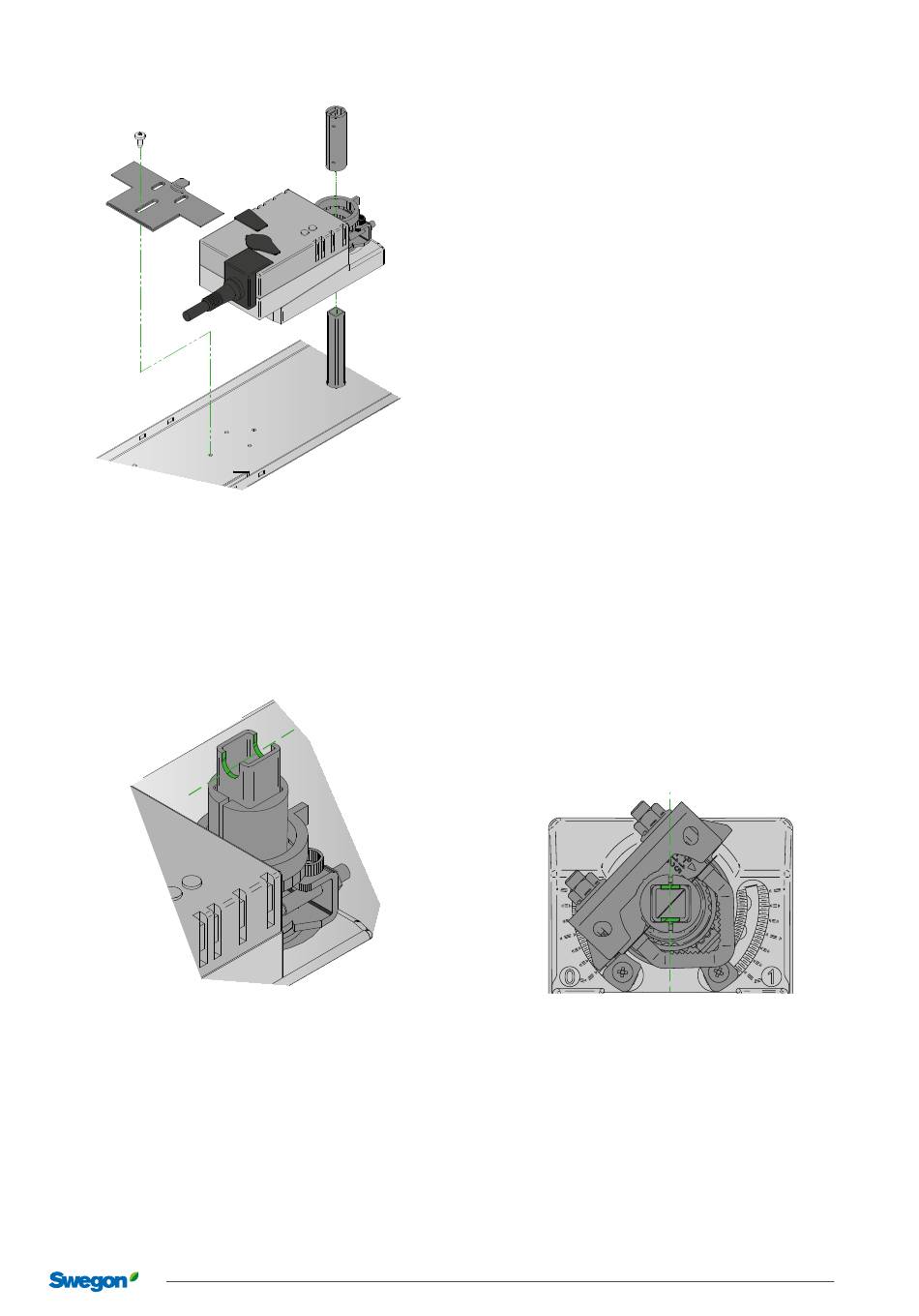

Figure 16. Dismantling the damper motor.
1. Disconnect the cable.
2. Disconnect the measuring tubes.
3. Set damper motor to the open position.
4. Loosen the nuts on the spindle clamp (nuts: 8mm).
5. Remove 1 screw for the locking strip on the circular design and 2
screws for the locking strip on the rectangular design (screw: TX20).
6. Lift off the damper motor and spindle adapter
(The rectangular design has a round damper spindle and no spindle
adapter).
7. Reassemble in the reverse order.
Note! Positioning of the damper blade and locking strip, see figures 17
and 18.
Figure 17. Recess in the damper spindle indicates the position of the
damper.
Figure 18. Damper open. Jumper to the left.
20230929 Swegon reserves the right to alter specifications.
