Product Overview

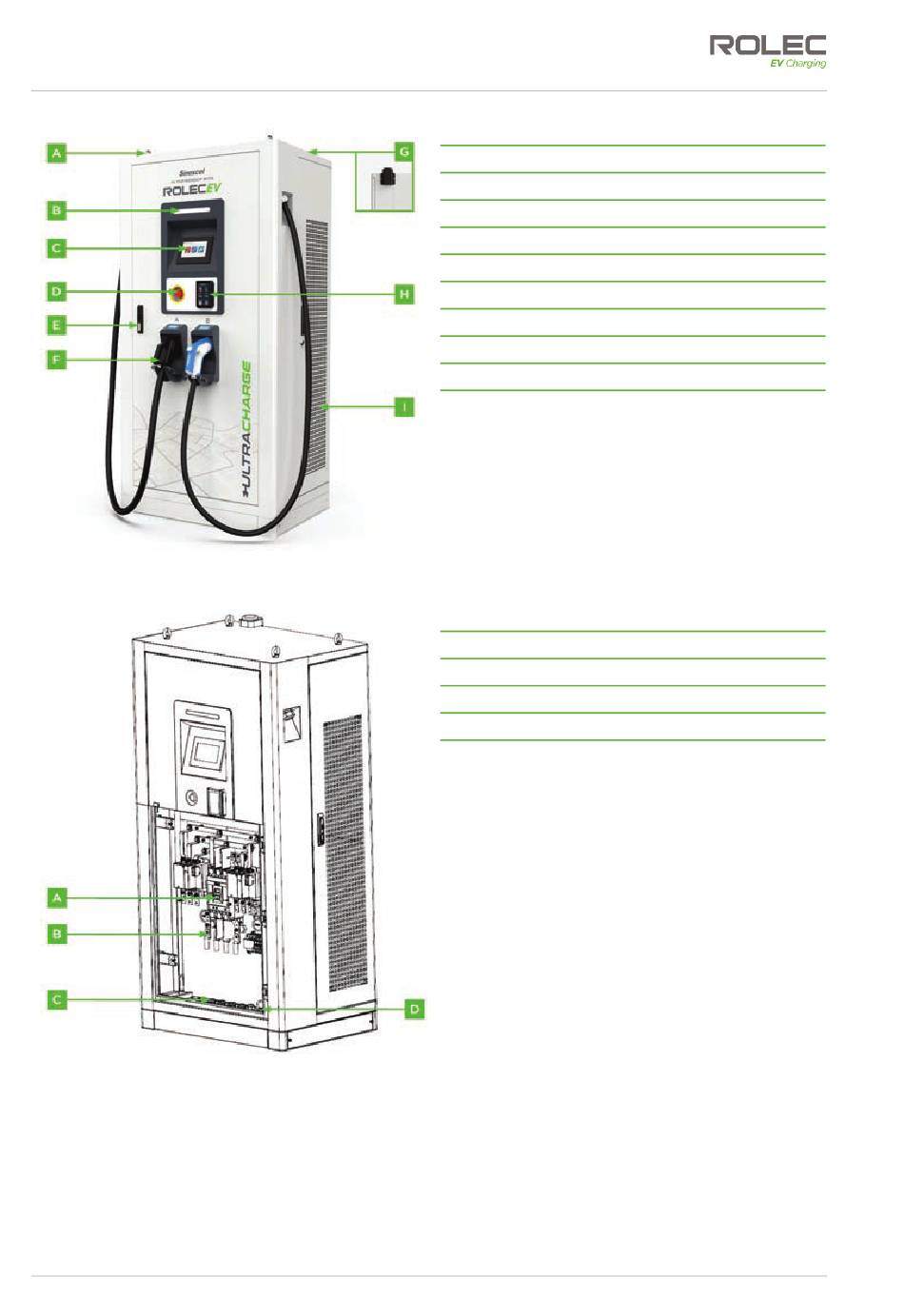

Figure 2 External Components
Figure 3 Internal Components
UltraCharge 160 DC Charger
Page 9 of 30
A
Eye Bolts for Lifting
B
Status LED
C
Screen
D
Emergency Button
E
Door Handle/Lock
F
Charging Connector
G
Antenna
H
Payment Card Reader
I
Air Outlet
A
Main Circuit Breaker
B
AC Incoming Copper Bar
C
Inlet Hole
D
Grounding Bar
EVUCM-001-V01R1 Installation and Operation Manual
October 2023
