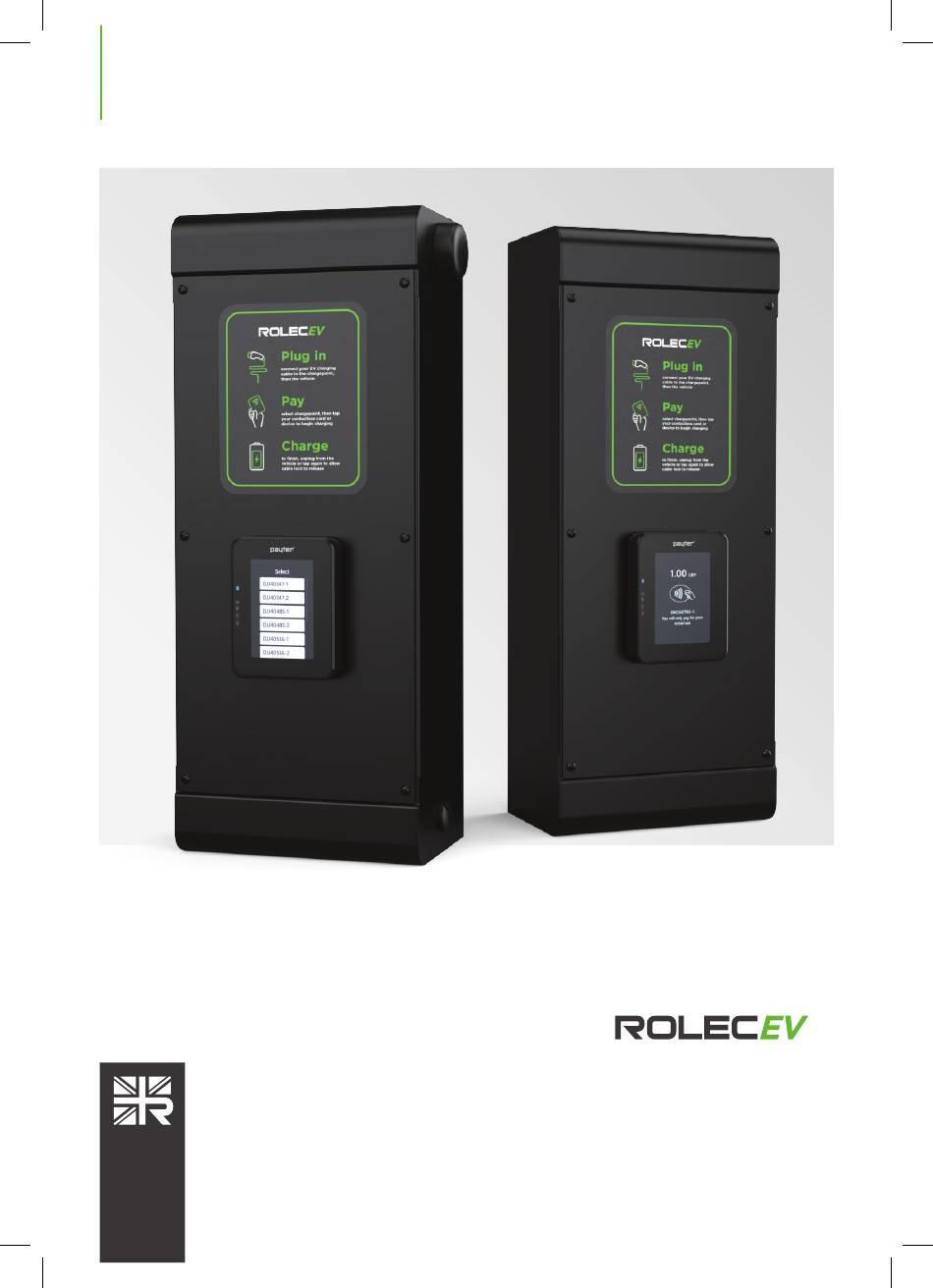

- Page 1 INSTALLATION & OPERATION MANUAL TAP & CHARGE Manufactured Remote contactless payment terminal in the UK...
- Page 2 Date Published: November 2024 Rolec Services Ltd are the publishers of this document and own the rights to use the text, images and all technical content contained within. Content supplied by third parties / partner organisations remains the property of that organisation and is used by agreement with the supplier.
- Page 3 If this has not been done, please refer to the Payment Device Setup Guide included with the product or available from the Rolec downloads page: https://www.rolecserv.com/downloads-ev-charging. Contents...
- Page 4 Terminal. This terminal can be paired with multiple Rolec charge points to allow the purchase of charging services. The same model of terminal device may also be seen, embedded in Rolec charge points and is setup and configured in the same way. Setup and configuration of the terminal is described in an accompanying manual.
- Page 5 Product Features NFC contactless payment solution for Customisable advertising screen (great multiple EV chargers for promotions or branding) Compatible with all ROLEC EV Over-the-air firmware / software chargepoints* updates 3.5" LCD backlit touch screen display. Built-in surge protection...
- Page 6 Certification Markings – CE & UKCA Warranty 3 years Rolec Services Ltd are a registered manufacturer (WEE/AG3499TY) within the WEEE Recycling Scheme, allowing its products at the end of their life, to be processed by an appropriate local service provider.
- Page 7 Specification Figure 1 Unit and Mounting - General Dimensions EVTCM-V01-R0 Installation Manual Tap & Charge Remote Contactless Payment Terminal Page 6 of 12 November 2024...
- Page 8 Unpacking Unpacking IMPORTANT: Make sure all packaging is disposed of responsibly and in accordance with the current regulations in your region. Packaging is 100% recyclable where appropriate facilities exist. Standard Contents Tap & Charge Unit with integrated Payter contactless payment device. Wall mounting/fixing kit.
- Page 9 Advice provided in this manual does NOT override any legislation. Rolec Services Ltd cannot accept any responsibility for improper installation or any problems arising from improper installation. NOTE: Damage to the equipment, connected systems or to property caused by improper installation are the responsibility of the installer.
- Page 10 Installation Removable Front Panel Power Supply Unit Surge Protection Instructions Incoming Power Terminals Payment Device Cable Entry Gland Figure 2 Main Components NOTE: When removing the front panel, the payment device is connected to the power supply unit by a cable. If a Mounting Post or Pedestal will be Used 1.
- Page 11 Installation Install the Tap & Charge Payment Terminal IMPORTANT: All electrical work must be performed in accordance with the current legislation applicable in the geographical region of the installation. CAUTION: Equipment Damage – Sensitive Equipment If you will be performing insulation resistance tests on the power supply cables, it is advised to be done BEFORE connecting the power cable to the chargepoint.
- Page 12 Installation 9. Tighten the fixings gradually, making sure the chargepoint remains level and does not twist or warp. 10. If required, apply sealant to the fixings or any unused holes inside the unit to maintain the IP rating of the enclosure. 11.
- Page 13 Monta socket or cable ID. Use of the payment terminal with non-Rolec charge points is at the operators own risk. IMPORTANT: This product is designed to be used with a charge point management system (CPMS) sometimes referred to as a ‘Back Office’.
- Page 16 Brand names, logos and trademarks used herein remain the property of their respective owners. This listing of any firm or their logos is not intended to imply any endorsement or direct affiliation with Rolec Services Ltd. and is purely to demonstrate branding opportunities. © 2024 by Rolec Services. All rights reserved.
