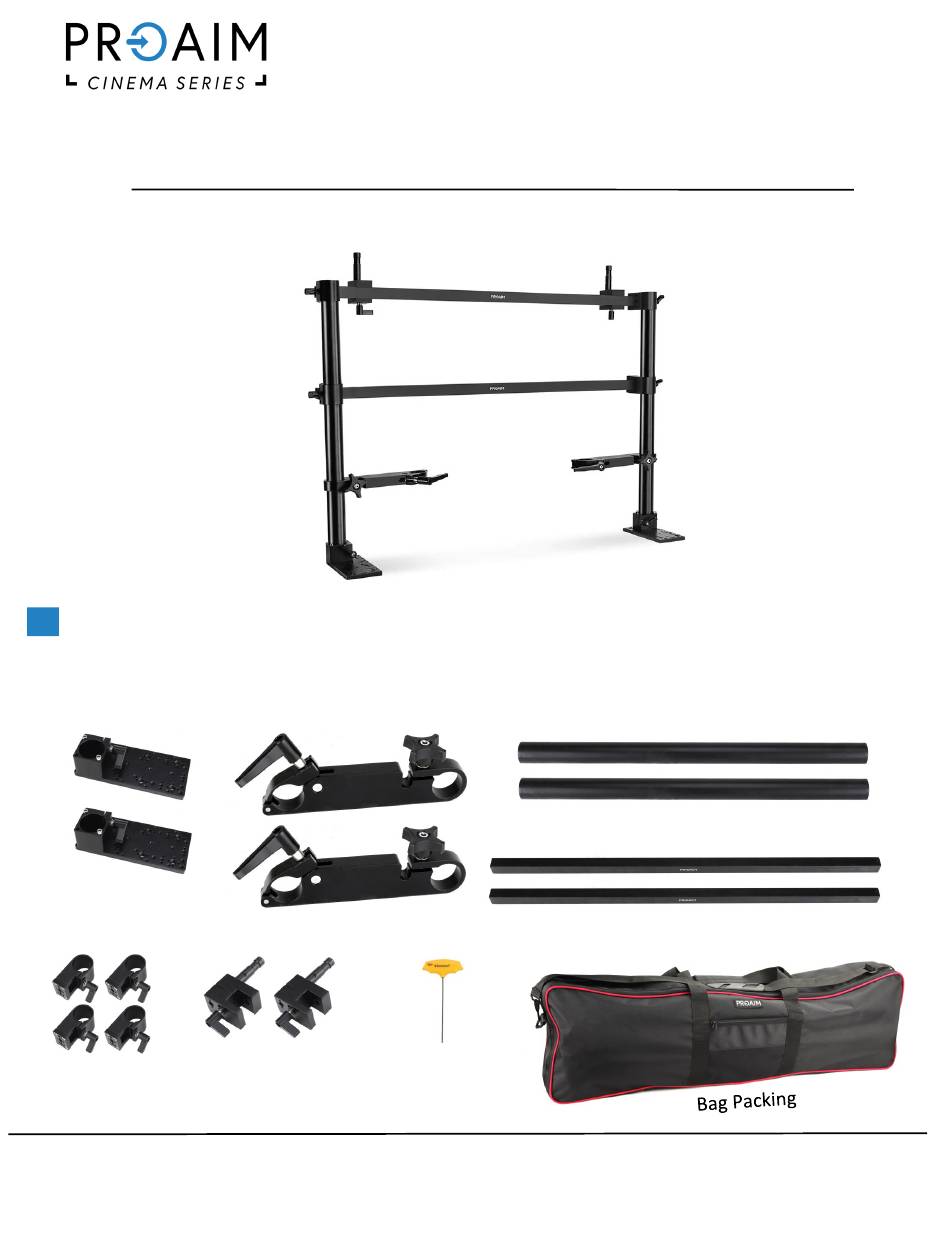

Multi Monitor Mounting System for Video Camera
(P-MLMT-M2)
A s s e m b l y M a n u a l
What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that
is listed below.
2 x Rod
2 x Base Rod Mount
2 x Rod Clamp
2 x Tube Rail
2 x Tube Rail Clamp
1 x L-Type Allen
4 x Rod Clamp
with 5/8 Baby Pin
Key (Size: 4mm)
Rail Holder
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
statutes or in writing by the Publisher.
Advertisement
Table of Contents
Related Manuals for PROAIM P-MLMT-M2
Summary of Contents for PROAIM P-MLMT-M2
- Page 1 Multi Monitor Mounting System for Video Camera (P-MLMT-M2) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
- Page 2 Multi Monitor Mounting System Setup Assembling of Rod • Loosen the knob of the base rod mount and insert the rod in the base rod. • After inserting the rod, properly tighten the knob, as shown in the image. Mounting of Rod Clamp •...
- Page 3 • After mounting the rod clamp rail holder, properly tighten it using the knob and repeat the same process to insert the second rail holder. • Repeat the same process for assembling the other side. Mounting of Tube Rail • Create the space to insert the rod clamp by equally loosening the bolts of all the rail holders using the 4mm Allen key.
- Page 4 • After mounting, properly tighten it using the knob. NOTE: It is a 5/8" baby pin & you can mount multi monitor system. • Repeat the same process to insert the second tube rail clamp. NOTE: The cheese plates with scaffold clamps to meet your accessory needs while giving you the option of permanently drilling the system into your cart deck with the drilling option.
- Page 5 • After mounting the monitor system, properly tighten the knob. NOTE: For Proaim Sound Chief Cart, Atlas & Victor Cart Series, the mounting system will be attached by clamping; however, for the Proaim Bowado Cart, you will need to drill the mounting system .
- Page 6 YOUR PROAIM MULTI MONITOR MOUNTING SYSTEM ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage.
