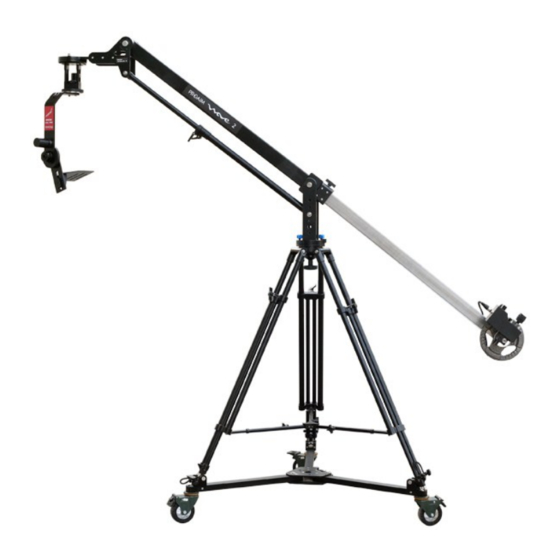

7' Wave-2 Jib with CST-100 Stand, Portable
Dolly & Jr. Pan Tilt Head
( P-WV-2PP )
I N S T R U C T I O N M A N U A L
For demonstration purpose only
All rights reserved
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any
means, electronic, mechanical, photocopying, recording, or otherwise, except as may be expressly permitted
by the applicable copyright statutes or in writing by the publisher.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for PROAIM P-WV-2PP
Summary of Contents for PROAIM P-WV-2PP

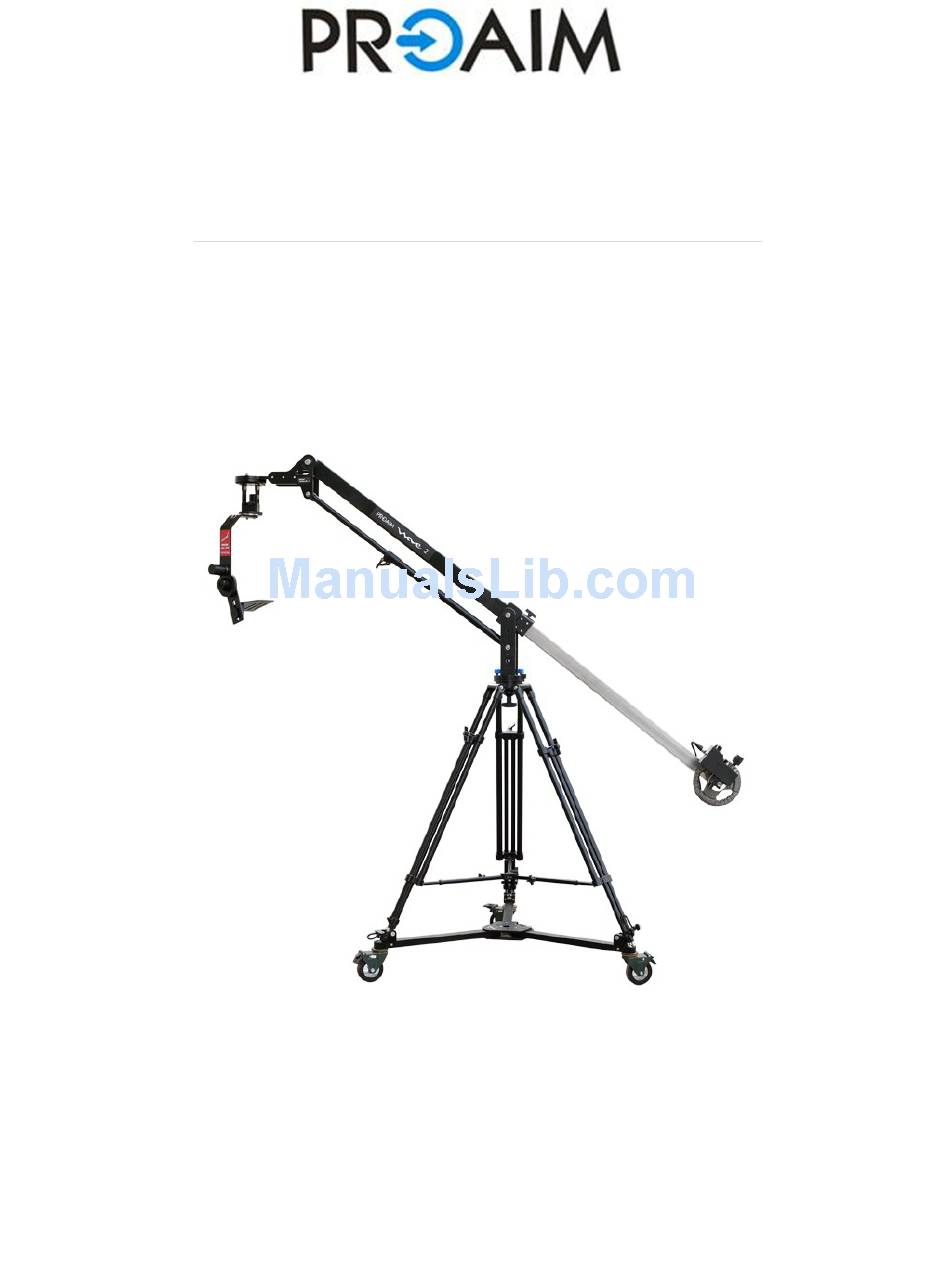

- Page 1 7' Wave-2 Jib with CST-100 Stand, Portable Dolly & Jr. Pan Tilt Head ( P-WV-2PP ) I N S T R U C T I O N M A N U A L For demonstration purpose only All rights reserved...
- Page 2 Please inspect the contents of your shipped package to ensure you have received all that is pictured and listed below. The padded shipping /storage container has been especially designed to protect your purchase while in transit and is a good place to keep your PROAIM 7' Wave -2 Jib with CST-100 Stand, D-77 Dolly &...
- Page 3 Proaim 7' Wave-2 Jib with CST-100 Stand, Portable Dolly & Jr. Pan Tilt Head ASSEMBLING YOUR PROAIM 7' WAVE -2 JIB WITH CST-100 STAND, PORTABLE DOLLY & JR. PAN TILT HEAD Take out the bolt from the center of dolly and spread it on floor. Then put the bolt back through the center of dolly again.
- Page 4 Proaim 7' Wave-2 Jib with CST-100 Stand, Portable Dolly & Jr. Pan Tilt Head IN CASE OF SPREADER, FOLLOW THESE STEPS Take out the spreader and position it’s legs as shown in the image. Now, place the Tripod foot on the...
- Page 5 Proaim 7' Wave-2 Jib with CST-100 Stand, Portable Dolly & Jr. Pan Tilt Head NOTE: It is important to make sure that the Central Fork is seated in the bowl properly. That means perpendicular to the tripod bowl. Off axis installation may hamper movement of the jib.
- Page 6 Proaim 7' Wave-2 Jib with CST-100 Stand, Portable Dolly & Jr. Pan Tilt Head Attach the weight shanks at the rear end of the jib section by screwing it in and then add weights to it. NOTE: Make sure the opposite end of the jib...
- Page 7 Proaim 7' Wave-2 Jib with CST-100 Stand, Portable Dolly & Jr. Pan Tilt Head To mount Jr. Pan Tilt Head, follow these steps: Remove the fluid head mounting bowl by loosening the bolts as shown and then attach the pan tilt head mounting plate and secure by tightening the bolts.
- Page 8 Proaim 7' Wave-2 Jib with CST-100 Stand, Portable Dolly & Jr. Pan Tilt Head Now attach the one end of XLR Cable & AC Adapter with Joystick. And second end of XLR cable with Pan Tilt Head. LCD Mounting ...
-
Page 9: Warranty
Proaim 7' Wave-2 Jib with CST-100 Stand, Portable Dolly & Jr. Pan Tilt Head WARRANTY We offer a one year warranty for our products from the date of purchase. We will repair or replace your product, free of charge, in the event of a defect in materials or craftsmanship obtained during normal use or handling based on the user manual.
