I N S T R U CT I O N M A N UA L
Flexible Impeller Pumps
F 2 P 10 - 19 12 / 2 4 V D C , F 3 B - 19 12 / 2 4 V D C , F 3 B - 19 O i l C h a n g e 12 / 2 4 V D C ,
F 3 8 B - 19 12 / 2 4 V D C , F 4 B - 19 12 / 2 4 V D C
O R I G I N A L I N S T R U CT I O N S / T R A N S L AT I O N O F O R I G I N A L I N S T R U CT I O N S
I B - 414 R 0 4 ( 0 5 / 2 012 )
R E A D A N D U N D E R S TA N D T H I S M A N UA L P R I O R TO O P E R AT I N G O R S E R V I C I N G T H I S
P R O D U CT
Advertisement
Related Manuals for SPX F2P10-19 12/24 V DC
Summary of Contents for SPX F2P10-19 12/24 V DC
- Page 1 I N S T R U CT I O N M A N UA L Flexible Impeller Pumps F 2 P 10 - 19 12 / 2 4 V D C , F 3 B - 19 12 / 2 4 V D C , F 3 B - 19 O i l C h a n g e 12 / 2 4 V D C , F 3 8 B - 19 12 / 2 4 V D C , F 4 B - 19 12 / 2 4 V D C O R I G I N A L I N S T R U CT I O N S / T R A N S L AT I O N O F O R I G I N A L I N S T R U CT I O N S I B - 414 R 0 4 ( 0 5 / 2 012 )
-
Page 2: Type Designation

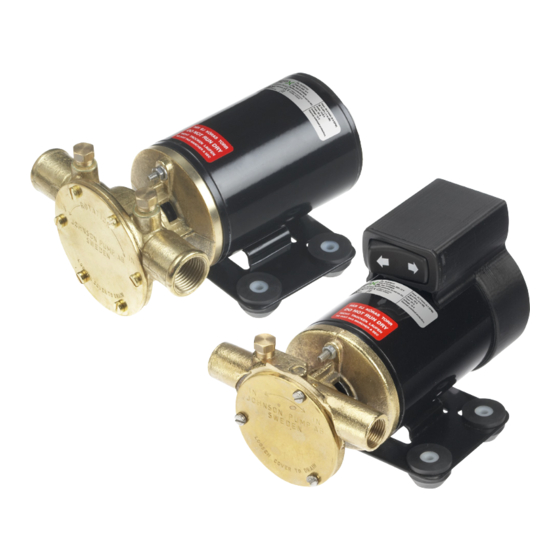

Self-priming, flexible impeller pump flange mounted to DC motorn 12/24 V Typical applications Bilge pump, fresh water pump, deck washing, fuel oil transfer, fire pump, etc. F3B-19 Oil Change: Pump for permanent installation near the boat engine. To be used for the draining/filling of engine oil. Flow direction is easily changed with the integrated reversing switch. - Page 3 Pressure and capacity data (based on water at 20°C and at full voltage of the motor, 12.0 / 24.0 V unless specified otherwise) F2P10-19 F38B-19 Amp draw Amp draw l/min USGPM l/min USGPM Continous duty Continous duty 15,0 5,6 A 4,0 A 10,9 A 5,0 A...
-
Page 4: Wiring Table
in the flow direction to the receptacle. When the oil is drained (check with the dipstick of the engine) switch off the pump immediately by moving the integrated switch to its centre position. Change the oil receptacle to the container with new oil. Start the pump by pressing the switch in the flow direction to the motor. - Page 5 Self-priming Pump is self-priming up to 3m (for F4B 4 m). Intake lines must be air-tight to ensure selfpriming. Note: Pump will prime when impeller is dry but suction lift up to 3m (for F4B 4 m) is only obtainable when impeller is lubricated with liquid being pumped or Johnson Impeller lubricant.
- Page 6 Service instructions F2P10 (see page 42) Disassembly Back off the endcover screws (7), remove the endcover/wearplate (5) and O-ring (6). Pull out the impeller (3) using a slip joint plier or other suitable implements. Loosen and remove the screws (14) holding the pump body to the motor. Remove the retaining ring (13) and the lip seal (4).
- Page 7 Accessories Vacuum switch 09-45053 • For automatic shut off operation. • To prevent pump damage. The vacuum switch works with all selfpriming impeller pumps and should be used for e.g. bilge pumping/emptying of tanks to prevent the pump from running dry. The vacuum switch automatically shuts the pump off when the bilge/tank is dry.
- Page 8 Parts list Description F2P10-19 F3B-19 F38B-19 F4B-19 F3B-19 Oil Change Body (-19) 21-4943-02 01-24480-1 01-24452-3 01-24452-1 Body (-1907) 01-24480-2 01-24452-4 01-24452-2 Body (3/4” NH) 21-4943-21 Motor 12 V 01-35285-01 01-24676-01 Motor 24 V 01-35285-02 01-24676-02 Impeller 09-1077B-9 09-843S-9 09-824P-9 09-824P-9 Lip seal 0.2233.402 0.2233.007...
- Page 9 F2P10-19 Weight 1,6 kg Dim. mm...
- Page 10 F3B-19 Weight 2 kg Dim. mm...
- Page 11 F3B-19 Oil-Change 72,3 1000 54,6 171,5 Weight 2,1 kg Dim. mm...
- Page 12 F38B-19 34 (2x) JOHNSON PUMP AB SWEDEN Weight 3 kg Dim. mm...
- Page 13 F4B-19 1 2 0 3 4 ( 2 x ) J O H N S O N P U M P A B S W E D E N Weight 3 kg Dim. mm 2 0 8 Learn more about boat plumbing on our website.
