CRESTRON GREEN LIGHT™
Wiring
NOTE: All wiring must be installed in accordance with all local and national electrical codes.
NOTE: Refer to the torque settings specified on pages 6, 7 and 8.
CRESTRON GREEN LIGHT cabinets are shipped with GLXP modules installed and prewired to the branch circuit
breakers. The following must be performed after installation:
•

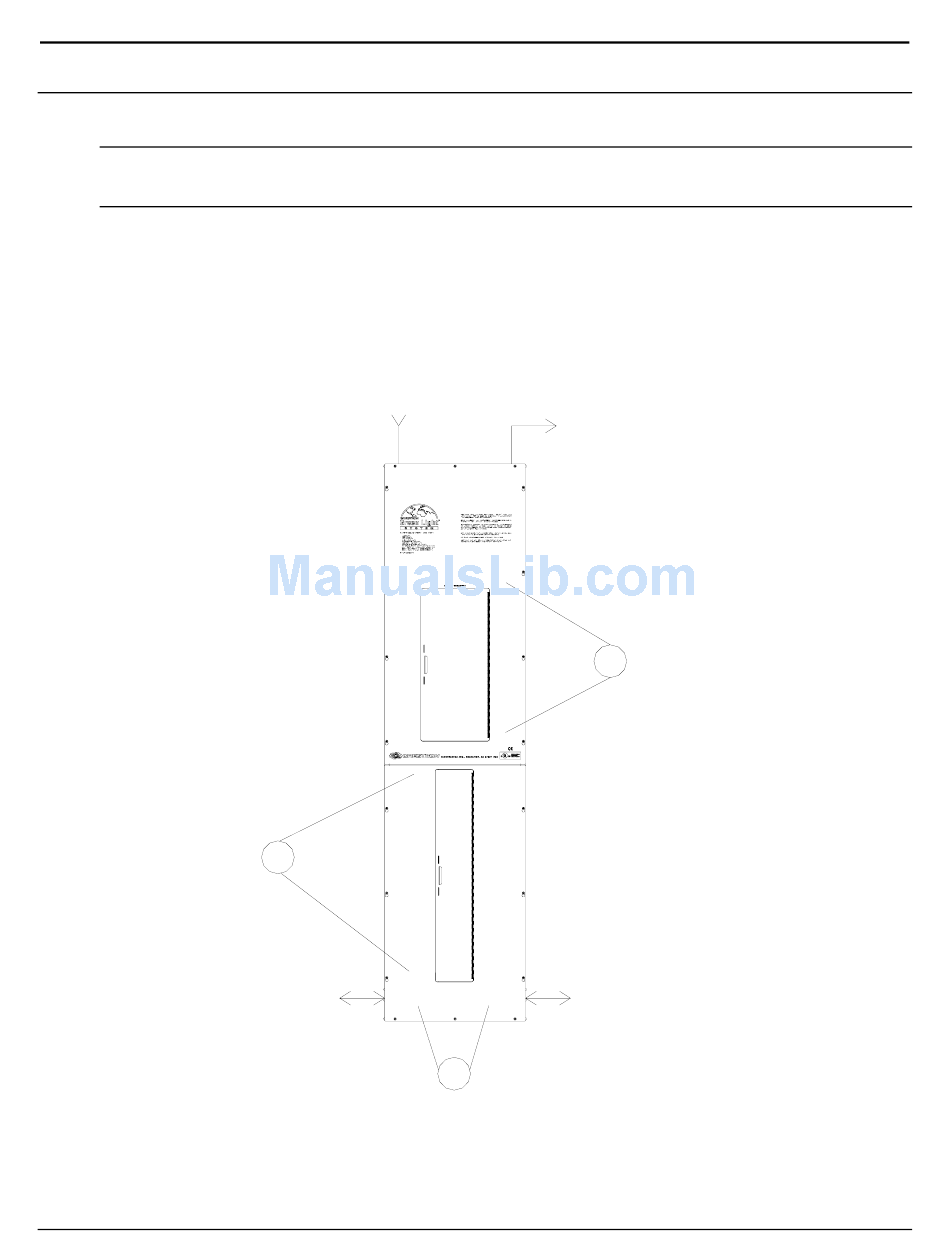

Connect incoming feed conductors to the breaker panel (section A of the following diagram)
•
Connect load wiring to GLXP module outputs (section B of the following diagram)
•
Connect control wiring (section C of the following diagram)
WIRING ONLY
Installation Guide – DOC. 6672B
FEED:
3-PHASE 4-WIRE
B
CLASS 2
TO LOADS:
2W + GND 16A (MAX)
A
CLASS 2
WIRING ONLY
C
CRESTRON GREEN LIGHT Power Switching • 5
