Crestron DM-PSU-8 Quick Start Manual

DO
DM-PSU-8/DM-PSU-16
8-Port/16-Port PoDM Power Supply for DM 8G+
DO

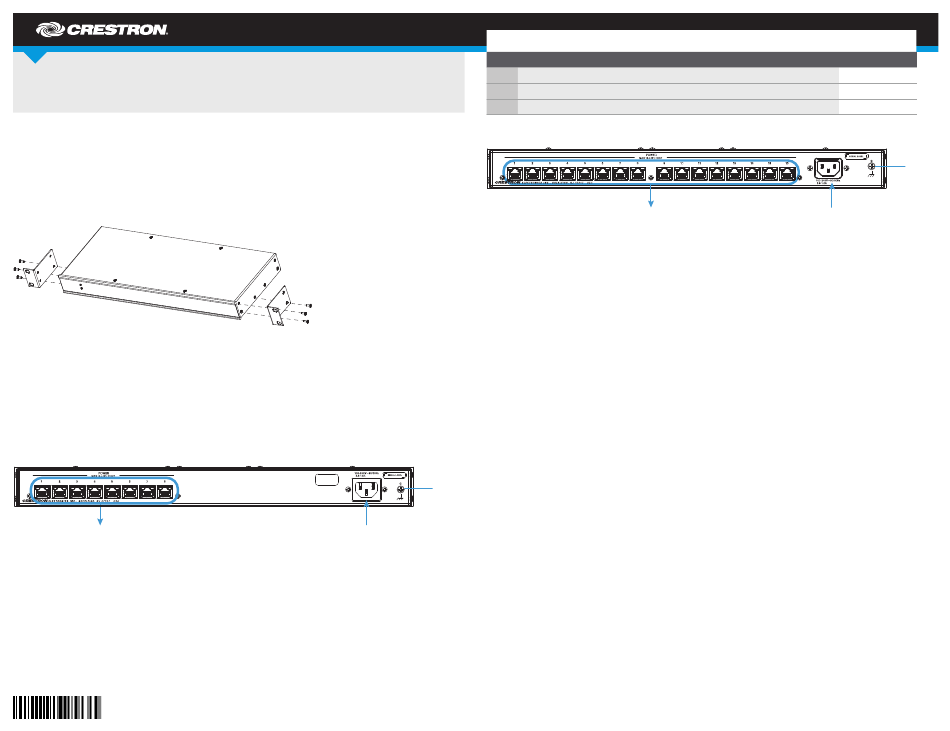

Install the Device

The Crestron ® DM-PSU-8 and DM-PSU-16 can be mounted into a rack or placed onto a flat surface.

Mounting into a Rack

Each device occupies 1U of rack space. Using a #1 or #2 Phillips screwdriver, attach the two
included rack ears to the device. Then, mount the device into the rack using four mounting screws
(not included).

Placing onto a Flat Surface

When placing the device onto a flat surface or stacking it with other equipment, attach the included
feet near the corners on the underside of the device.
DO

Connect the Device

Connect the device as required for the application.
DM-PSU-8 Rear Panel Connections
POWER
MAX 15.4 W/PORT 1–8:
To POE IN port of DM 8G I/O card
®
or to HDBaseT ® device
GUIDE
I/O Cards
®
100–240 V ~50/60 Hz
2.2–1.0 A:
Mains power input
DO

Check the Box

QTY PRODUCT
2 Bracket, Rack Ear, 1U
4 Foot, 0.5" x 0.5" x 0.23", Adhesive
1 Power Cord, 6' 7" (2 m)
DM-PSU-16 Rear Panel Connections
MAX 15.4 W/PORT 1–16:
To POE IN port of DM 8G I/O card
NOTE: Ensure that the device is properly grounded by connecting the chassis ground lug to an
earth ground (building steel).
NOTE: The eight POWER ports of the DM-PSU-8 and the sixteen POWER ports of the
DM-PSU-16 are PoDM and HDBaseT
connected to a PoDM or HDBaseT PoE port is for intrabuilding use only and should not be connected
to a line that runs outside of the building in which the PSE is located.
Ground
COLOR
Black
POWER 100–240 V ~50/60 Hz
or to HDBaseT device
® PoE PSE (Power Sourcing Equipment) ports. Any wiring that is
PART NUM.
2032122
2002389
4505164
Ground
3.5–1.6 A:
Mains power input
