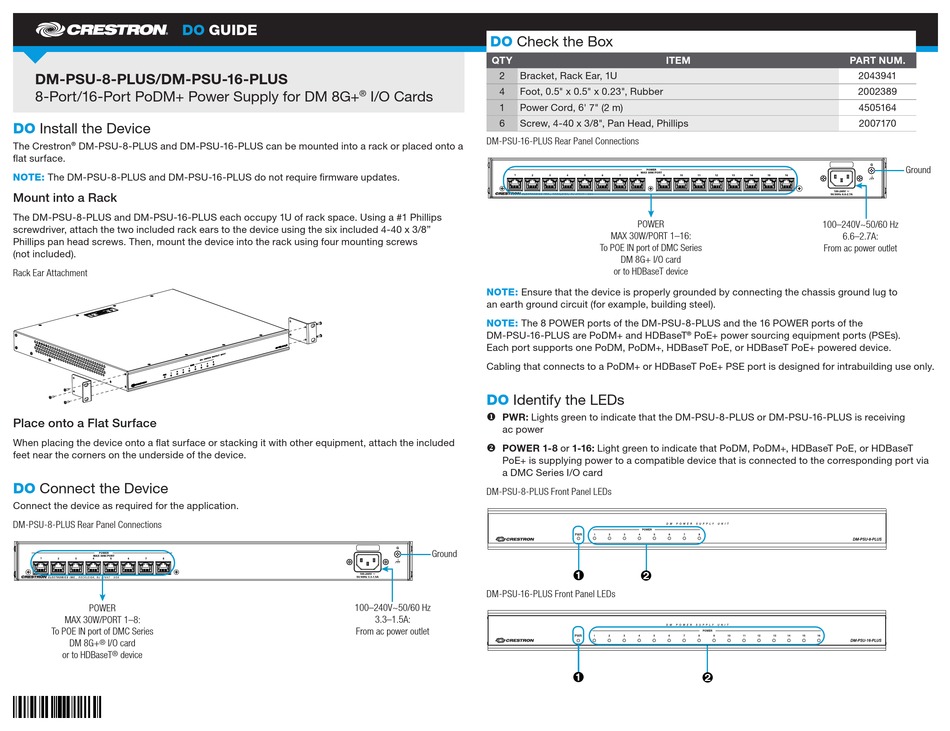

Crestron DM-PSU-8-PLUS Do Manual

DO
DM-PSU-8-PLUS/DM-PSU-16-PLUS
8-Port/16-Port PoDM+ Power Supply for DM 8G+
DO

Install the Device

The Crestron ® DM-PSU-8-PLUS and DM-PSU-16-PLUS can be mounted into a rack or placed onto a
flat surface.
NOTE: The DM-PSU-8-PLUS and DM-PSU-16-PLUS do not require firmware updates.

Mount into a Rack

The DM-PSU-8-PLUS and DM-PSU-16-PLUS each occupy 1U of rack space. Using a #1 Phillips
screwdriver, attach the two included rack ears to the device using the six included 4-40 x 3/8"
Phillips pan head screws. Then, mount the device into the rack using four mounting screws
(not included).
Rack Ear Attachment

Place onto a Flat Surface

When placing the device onto a flat surface or stacking it with other equipment, attach the included
feet near the corners on the underside of the device.
DO

Connect the Device

Connect the device as required for the application.
DM-PSU-8-PLUS Rear Panel Connections
POWER
MAX 30W/PORT 1–8:
To POE IN port of DMC Series
DM 8G+ I/O card
®
or to HDBaseT ® device
GUIDE
I/O Cards
®
100–240V~50/60 Hz
3.3–1.5A:
From ac power outlet
DO

Check the Box

QTY
2 Bracket, Rack Ear, 1U
4 Foot, 0.5" x 0.5" x 0.23", Rubber
1 Power Cord, 6' 7" (2 m)
6 Screw, 4-40 x 3/8", Pan Head, Phillips
DM-PSU-16-PLUS Rear Panel Connections
MAX 30W/PORT 1–16:
To POE IN port of DMC Series
NOTE: Ensure that the device is properly grounded by connecting the chassis ground lug to
an earth ground circuit (for example, building steel).
NOTE: The 8 POWER ports of the DM-PSU-8-PLUS and the 16 POWER ports of the
DM-PSU-16-PLUS are PoDM+ and HDBaseT
Each port supports one PoDM, PoDM+, HDBaseT PoE, or HDBaseT PoE+ powered device.
Cabling that connects to a PoDM+ or HDBaseT PoE+ PSE port is designed for intrabuilding use only.
DO

Identify the LEDs

 PWR: Lights green to indicate that the DM-PSU-8-PLUS or DM-PSU-16-PLUS is receiving
ac power
 POWER 1-8 or 1-16: Light green to indicate that PoDM, PoDM+, HDBaseT PoE, or HDBaseT
PoE+ is supplying power to a compatible device that is connected to the corresponding port via
a DMC Series I/O card
DM-PSU-8-PLUS Front Panel LEDs
Ground

DM-PSU-16-PLUS Front Panel LEDs

ITEM
POWER
DM 8G+ I/O card
or to HDBaseT device
PoE+ power sourcing equipment ports (PSEs).
®


PART NUM.
2043941
2002389
4505164
2007170
Ground
100–240V~50/60 Hz
6.6–2.7A:
From ac power outlet
