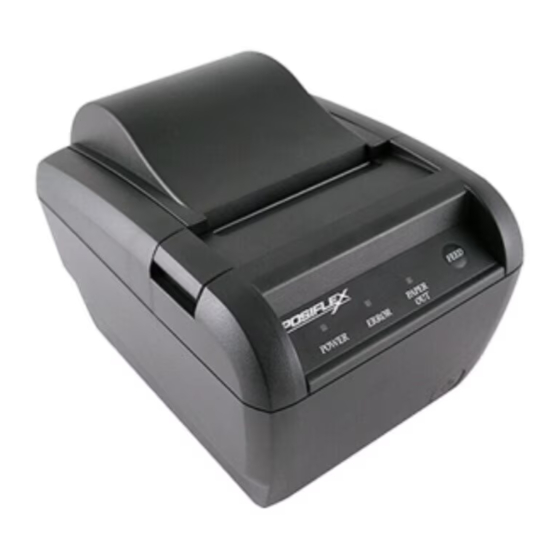

PP-8806
POS Printer
User Manual
Package Contents
PP-8806 Thermal Printer ( x 1)
Paper Separator for 2" Paper Roll (x1)
Thermal Paper Roll (x 1)
USB Cable (x 1)
Power Adaptor (x 1)
Power Cord (x 1)
User Manual (x 1)
To avoid paper jam occurring, do NOT press the printer's cover
open lever or pull the printed paper during printing.
When a paper jam occurs, press the cover open lever to release the
paper cover. Then, remove the jammed paper and reinstall the
paper roll. Next, close the paper cover properly and firmly.
If the auto cutter is still jammed, the paper cover will be locked.
Should the cutter jam be so serious to interfere the paper cover
release operation, please push the paper cover back and press the
cover open lever several times. If the problem cannot be solved
none the less, please call your local service center for help right
away.
FCC NOTES
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own expense.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
CE CLASS A WARNING
This equipment is compliant with Class A of CISPR 32. In a residential environment this
equipment may cause radio interference.
19760902010 Ver. A0
http://www.posiflex.com
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the PP-8806 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for POSIFLEX PP-8806

Summary of Contents for POSIFLEX PP-8806

  • Page 1 PP-8806 POS Printer User Manual Package Contents  PP-8806 Thermal Printer ( x 1)  Paper Separator for 2” Paper Roll (x1)  Thermal Paper Roll (x 1)  USB Cable (x 1)  Power Adaptor (x 1)  Power Cord (x 1) ...
  • Page 2 AVERTISSEMENT CE CLASSE A Cet équipement est conforme à la classe A de CISPR 32. Dans un environnement résidentiel, cet équipement peut provoquer des interférences radio. WARRANTY LIMITS Warranty will terminate automatically when the machine is opened by any person other than the authorized technicians.
  • Page 3 Overview Top View Printer Cover Paper Exit Cover Release Button FEED Switch Error LED Power LED Paper Out LED Adjustment wheel for paper end sensor...
  • Page 4 USB (Type B) Port USB (Type A) Port Note1: The USB type A port of PP-8806 is a host interface to a Posiflex POS display (PD series) only, such as PD26UE. Note2: The USB type B port of PP-8806 is a standard USB port for connection...
  • Page 5 Loading 2” or 3” Paper Rolls Press down the cover release button to open the top cover. Before installing 2-inch paper roll in the thermal printer, follow the instructions below to properly install plastic pad spacer and the separator. If you are using 3” paper roll for the printer, please skip to next step.
  • Page 6 Please connect power adapter and I/O cables before operating the printer. 1. Well attach power adapter to DC-IN power connector on the I/O plate. 2. Connect PP-8806 to the POS system using either USB, RS-232 or LAN cable. 2.1. If you are installing USB interface cable, plug Type-B connector into Type-B USB port of printer.

  • Page 7: Troubleshooting Paper Jams

    Mounting PP-8806 onto a Wall (Optional) Please follow the steps described below to mount POS printer on the wall using wall-mount kits. Define where the printer is mounted. Drill 2 holes about 3.15” or 80 mm apart. Each hole has to be at least 1/4” or 6.35 mm diameter and at least 1 and 3/16”...
  • Page 8 To open the paper jams rescue compartment, place your thumbs toward the center of the compartment and then push the cover up in the direction shown by the arrow. In the paper jams rescue compartment, find the adjustment wheel, which mainly allows you to manually adjust the cutting position of the cutter.

  • Page 9: Status Led Indicator

    P.S. The adjustment wheel also can be turned by using a screwdriver. The control hole is on the right side of the compartment. Please refer to the picture. Screwdriver Restore Software Switch to Factory Default via Software Switch Reset Software Switch Reset is the specially-designed function aimed to facilitate the factory reset process.
  • Page 10 Performing a Self-Test of the Printer 1. Power off the printer. 2. Press and hold the feed button of the printer. 3. Power on the printer. The printer will emit one short beep sound. 4. Release the feed button of the printer. 5.
  • Page 11 192.168.192.XXX (1 ~ 254) except 192.168.192.168, in which the subnet mask of host terminal is 255.255.255.0; 3. press the power button of PP-8806 to make the printer operate; open a random browser and enter the default static IP address of the PP- 8806, as shown below;...
  • Page 12 7. completing in setting up the PP-8806, click the SAVE button; and...
  • Page 13 8. after waiting for 30 seconds, you will be led back to the configuration page on which you will see the parameters that have been changed. Cleaning  Cleaning the Printer Case Before cleaning the printer case, be sure to power off the printer, and wipe the dirt off the printer case with a soft wiping cloth we provide.

  • Page 14: Driver Download

    LED indicator turns on again even after turning the power back on, malfunction may occurs. Contact your dealer or Posiflex’ technical service team. Driver Download Please download the relevant driver that you need from the Posiflex website (http://www.posiflex.com/en-global/Download/download). Specifications PP-8806...
  • Page 15 Cash Drawer Port 2 drivers (CR port x1) Power Consumption 2.5A max. Power Source AC adapter (24V DC) Temperature Print quality assured: +5℃~ +40℃ Operating: 0℃~ +40℃ Non-operating: 0℃~ +50℃ (storage) Relative Humidity Operating: 20 ~ 85%, non-condensing 35% Non-operating: 5% ~ 90%, non-condensing (thermal paper excluded) Standards and CE, FCC...
  • Page 16 Ethernet Interface Ethernet 10/100Base-T OS support Android, Linux, Windows ※ The product information and specifications are subject to change without prior notice. To get the detailed information on the PP-8806, please check this model from Posiflex Global Website (http://www.posiflex.com/en- global/Download/download).
