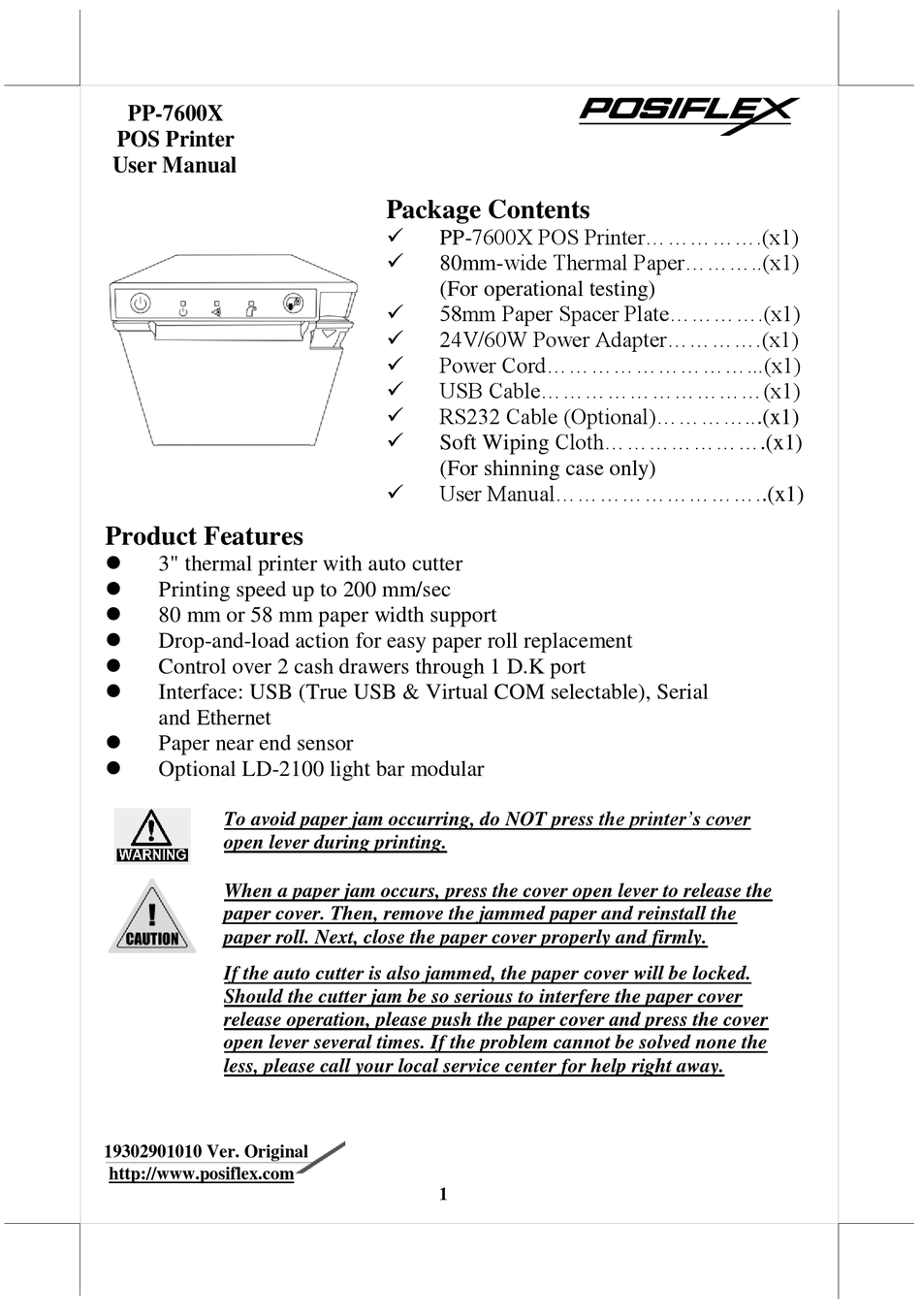

POSIFLEX PP-7600X User Manual

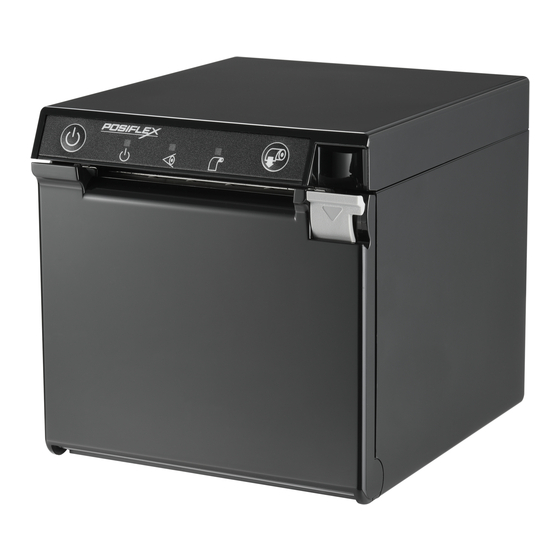

PP-7600X
POS Printer
User Manual

Product Features


3" thermal printer with auto cutter

Printing speed up to 200 mm/sec

80 mm or 58 mm paper width support

Drop-and-load action for easy paper roll replacement

Control over 2 cash drawers through 1 D.K port

Interface: USB (True USB & Virtual COM selectable), Serial
and Ethernet

Paper near end sensor

Optional LD-2100 light bar modular
To avoid paper jam occurring, do NOT press the printer's cover
open lever during printing.
When a paper jam occurs, press the cover open lever to release the
paper cover. Then, remove the jammed paper and reinstall the
paper roll. Next, close the paper cover properly and firmly.
If the auto cutter is also jammed, the paper cover will be locked.
Should the cutter jam be so serious to interfere the paper cover
release operation, please push the paper cover and press the cover
open lever several times. If the problem cannot be solved none the
less, please call your local service center for help right away.
19302901010 Ver. Original
http://www.posiflex.com

Package Contents

 PP-7600X POS Printer................(x1)
 80mm-wide Thermal Paper...........(x1)
(For operational testing)
 58mm Paper Spacer Plate.............(x1)

24V/60W Power Adapter.............(x1)
 Power Cord..............................(x1)
 USB Cable..............................(x1)
 RS232 Cable (Optional)...............(x1)
 Soft Wiping Cloth......................(x1)
(For shinning case only)
 User Manual.............................(x1)
1
