PP-8802/8803
Thermal Printer
User Manual
Package Contents
PP-8802 or PP-8803 Thermal Printer ( x 1)
Paper Separator for 2" Thermal Paper Roll (x1)
Thermal Paper Roll (x 1)
USB Cable (x 1)
Power Adaptor (x 1)
Power Cord (x 1)
User Manual (x 1)

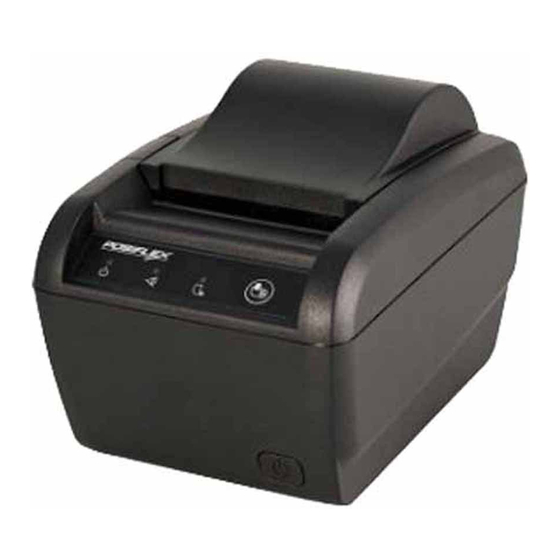

Overview

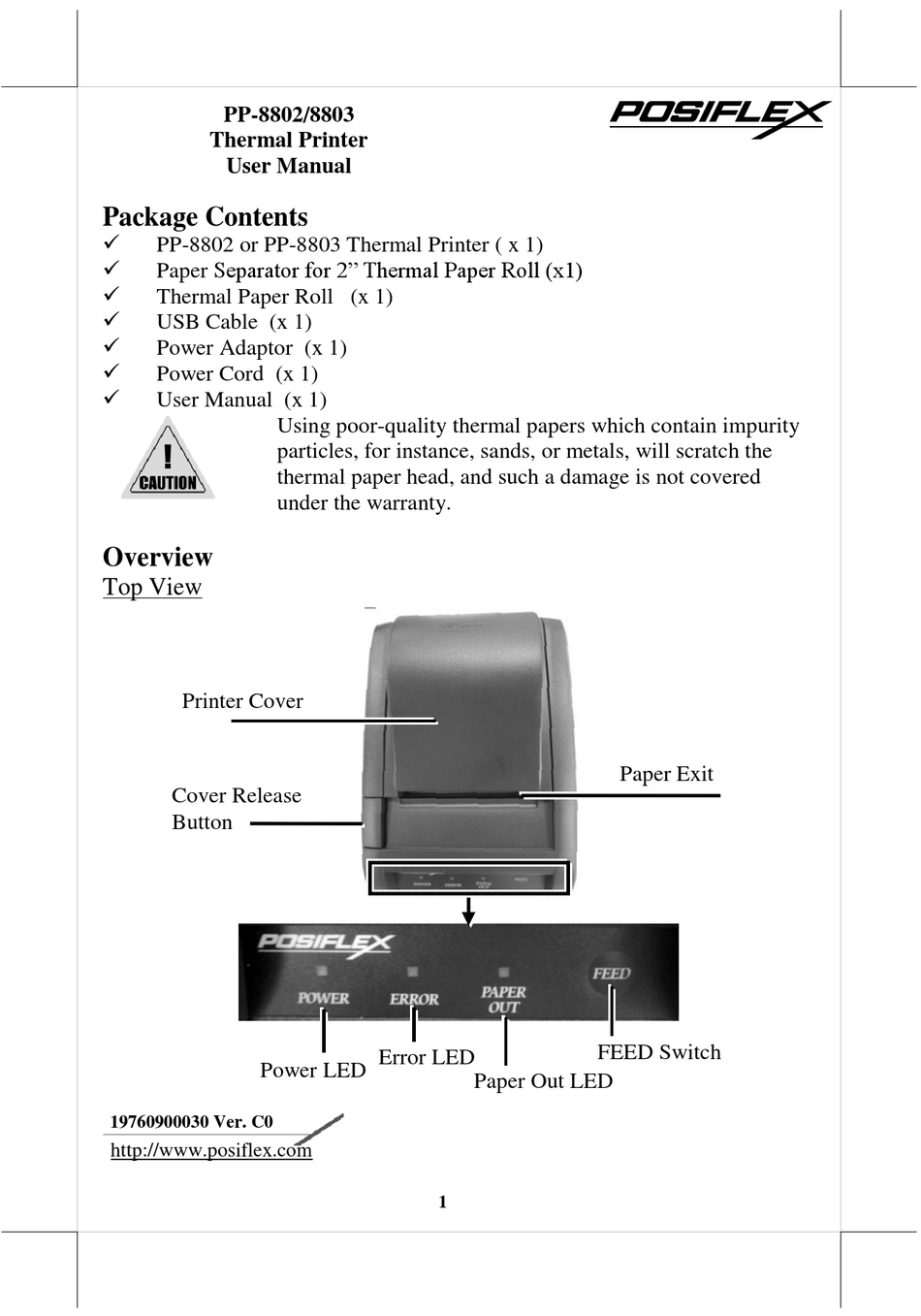

Top View
Printer Cover
Cover Release
Button
Power LED
19760900030 Ver. C0
http://www.posiflex.com
Using poor-quality thermal papers which contain impurity
particles, for instance, sands, or metals, will scratch the
thermal paper head, and such a damage is not covered
under the warranty.
Error LED
1
Paper Exit
FEED Switch
Paper Out LED
