To delete a device from the session, click the corresponding button in the Delete Device column.
The Delete All button removes all devices from the current session.

Connect or Disconnect Control Port

25B
After the Control Port has been defined, its corresponding checkbox is enabled. Clicking the
checkbox in the Connect Ctrl Port column allows or disallows the port to be connected via the
Connect button.
Click the Connect (electrical plug) button to open the selected ports; the appearance of the button
changes to show that you can disconnect the device as shown in Figure 15 below.
PNT-SG3FS Evaluation Kit User Guide

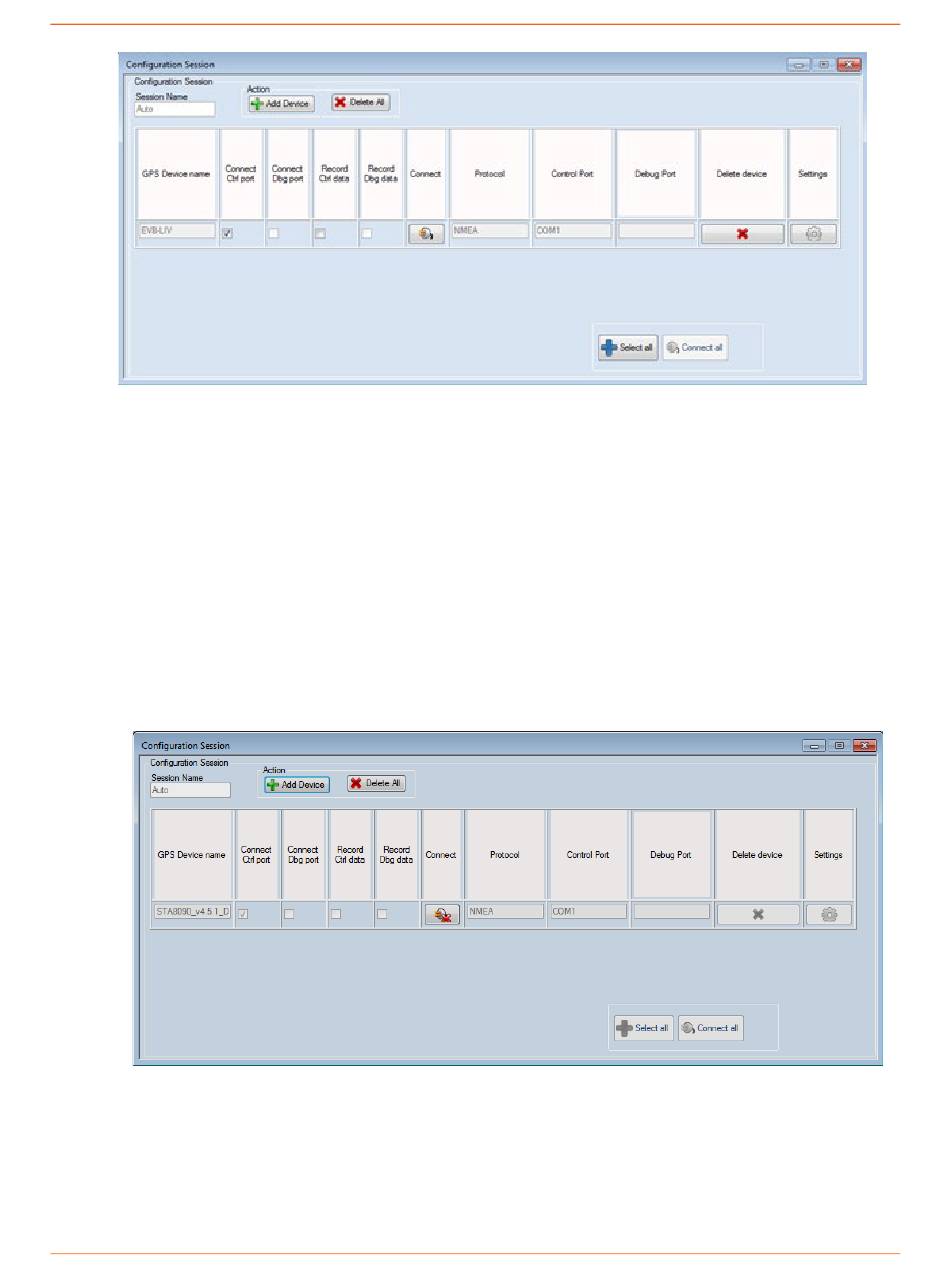

Figure 13. Configuration Session Panel with One Device Added
Figure 14. Port Connections Active
6. Teseo-Suite Connection
17
