6.

Teseo-Suite Connection

Install and start Teseo-Suite (https://www.st.com/en/embedded-software/teseo-suite.html), and
follow the directions in the following sections.

Getting Started with Teseo-Suite

23B
When the Teseo-Suite application starts, Teseo-Suite opens the Configuration Session panel as
shown in Figure 11 below.
Enter a session name to enable the "Add Device" button.
If the Configuration Session panel does not appear, either open the File menu and select "New
Session" or click the "Edit Session Configuration" button shown in Figure 12.

Add/Delete Device

24B
In the Configuration Session panel, you can add/delete PNT-SG3FS-EVAL devices in the work
session and monitor existing devices.
Click the "Add Device" button to bring up the Configuration Device form shown in Figure 14.
Configure the following fields as described:
Hardware type: STA8090

Control Port Protocol: NMEA

The following Control Port fields should use the same parameters of the serial connection

as defined in Table 1: Baud Rate – 9600; Data Bits – 8; Parity – None; Stop Bits – One
Click Ok to add the device.
PNT-SG3FS Evaluation Kit User Guide

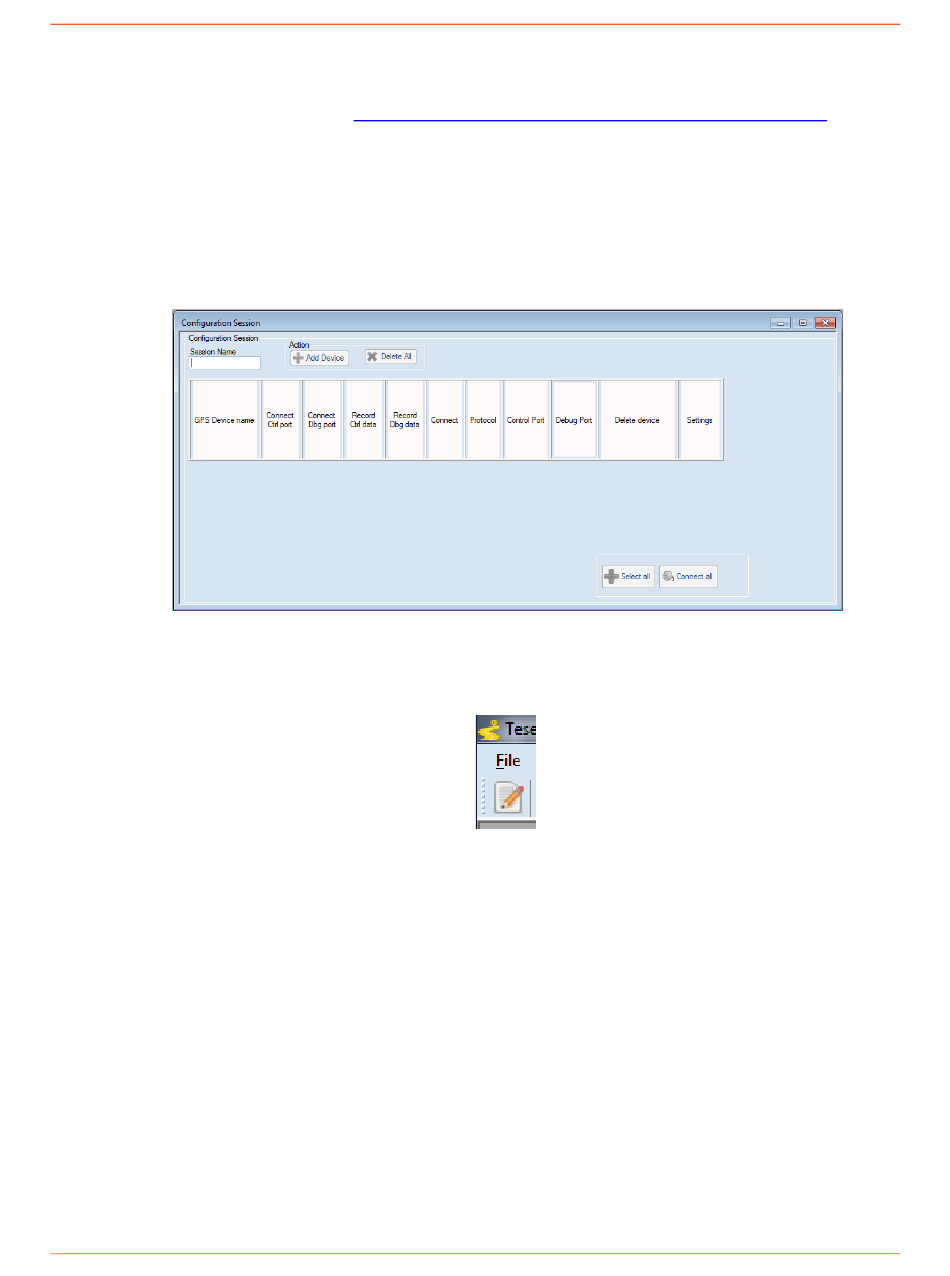

Figure 10. Configuration Session Panel
Figure 11. Edit Session Configuration Button
6. Teseo-Suite Connection
15
