Reset

18B
The reset button is highlighted in Figure 3 below. Press the reset button to reset the PNT-SG3FS
module.

LED Indicators

19B
The PNT-SG3FS-EVAL offers two LED indicators as shown below.
The red power LED indicator (highlighted in Figure 4 below) shows whether the unit is
♦
On (LED is lit) or Off (LED is unlit).
The green PPS LED indicator (highlighted in Figure 5 below) blinks once per second
♦
when the PNT-SG3FS is up and running.
PNT-SG3FS Evaluation Kit User Guide

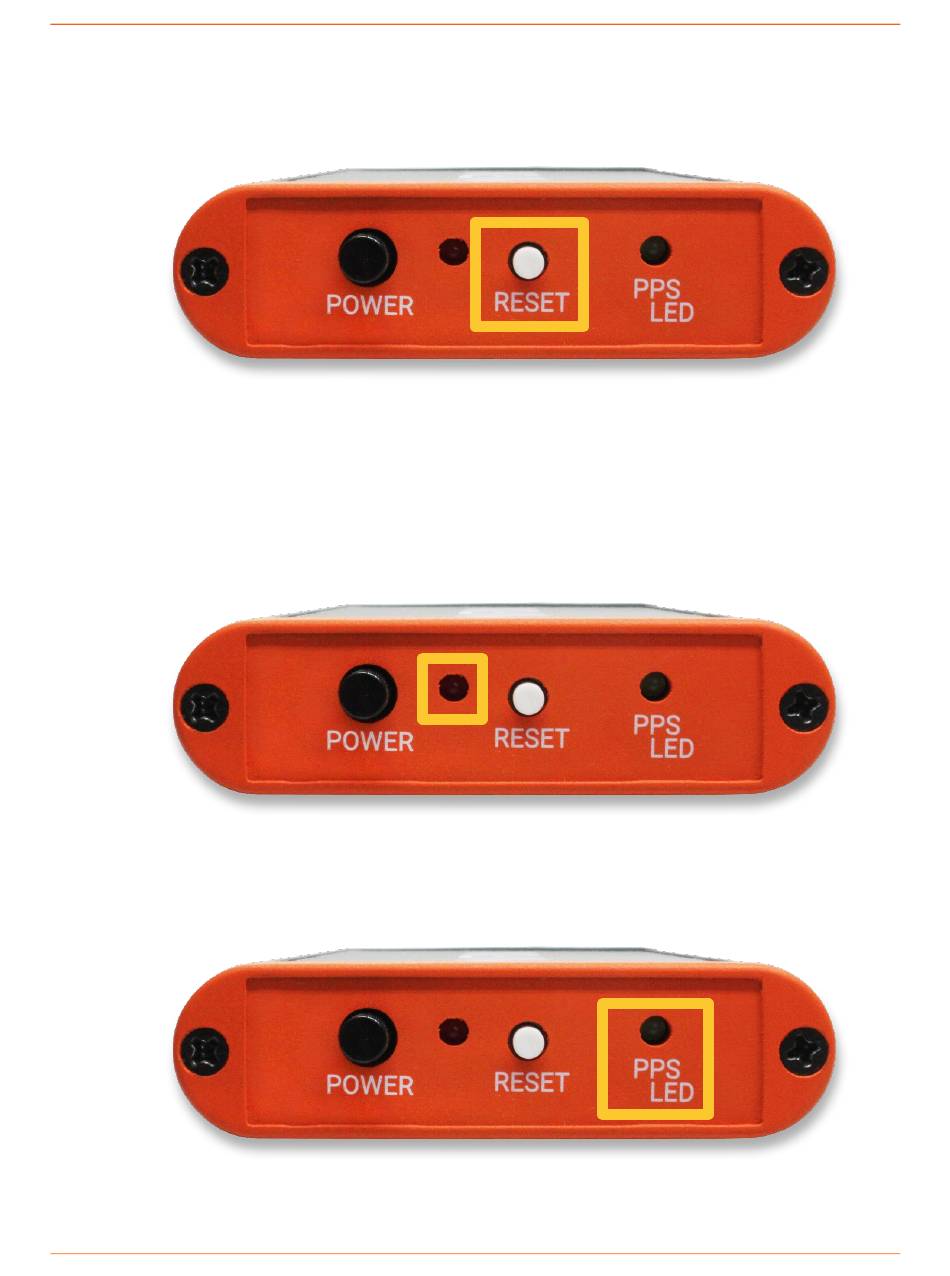

Figure 3. Reset Button

Figure 4. Power LED Indicator

Figure 5. PPS LED Indicator

4. Interfaces
