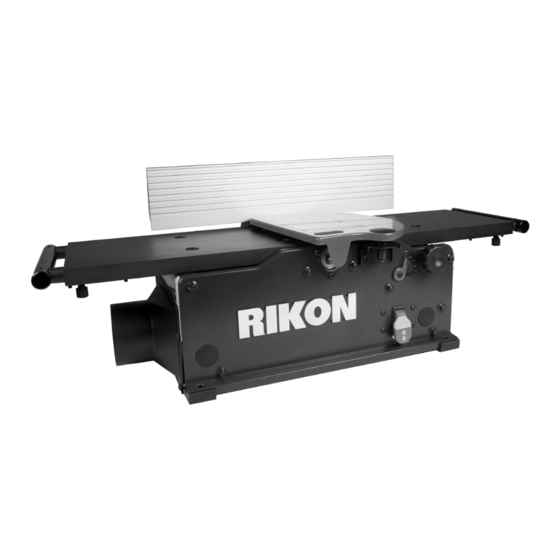

8” benchtop jointer with helical-style cutterhead

Advertisement

Quick Links

20-800HSP
8" Benchtop Jointer
with Helical-Style Cutterhead
Operator's Manual
Record the serial number and date of purchase in your manual for future reference.
The serial number can be found on the specification label on the rear of your machine.
Serial Number: _________________________
Date of purchase: _________________________
For technical support, email techsupport@rikontools.com - For parts questions, email parts@rikontools.com
www.rikontools.com
20-800HSPM1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 20-800HSP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Rikon Power Tools 20-800HSP

  • Page 1 20-800HSP 8” Benchtop Jointer with Helical-Style Cutterhead Operator’s Manual Record the serial number and date of purchase in your manual for future reference. The serial number can be found on the specification label on the rear of your machine. Serial Number: _________________________ Date of purchase: _________________________ For technical support, email techsupport@rikontools.com - For parts questions, email parts@rikontools.com...
  • Page 2: Table Of Contents

    Changes and improvements may be made at any time, with no obligation on the part of Rikon Power Tools, Inc. to modify previously delivered units. Reasonable care has been taken to ensure that the information in this manual is correct, to provide you with the guidelines for the proper safety,...
  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS IMPORTANT! Safety is the single most important consideration in the operation of this equipment. The following instructions must be followed at all times. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious personal injury. There are certain applications for which this tool was designed.
  • Page 4 SAFETY INSTRUCTIONS 12. KEEP PROTECTIVE GUARDS IN PLACE AND IN 25. ALWAYS WEAR A DUST MASK TO PREVENT WORKING ORDER. INHALING DANGEROUS DUST OR AIRBORNE PARTICLES, including wood dust, crystalline silica dust 13. AVOID ACCIDENTAL STARTING. Make sure that and asbestos dust. Direct particles away from face and the power switch is in the “OFF”...
  • Page 5: Electricals & Wiring Diagram

    SAFETY INSTRUCTIONS EXTENSION CORDS ELECTRICAL SAFETY THE USE OF AN EXTENSION CORD THIS TOOL MUST BE GROUNDED WITH THIS MACHINE IS NOT RECOMMENDED. For WHILE IN USE TO PROTECT THE OPERATOR FROM best power and safety, plug the machine directly into a ELECTRIC SHOCK.
  • Page 6: Knife Insert Size (Lxwxt)

    SAFETY INSTRUCTIONS SPECIFIC SAFETY INSTRUCTIONS FOR JOINTERS This machine is intended for the surfacing of natural, solid woods. The permissible workpiece dimensions must be observed (see Technical Specification). Any other use not as specified, including modification of the machine or use of parts not tested and approved by the equipment manufacturer can cause unforeseen damage and invalidate the warranty.
  • Page 7: Getting To Know Your Machine

    GETTING TO KNOW YOUR MACHINE On / Off Safety Switch B Dust Port & Vacuum Adapter C Outfeed Table with Extension D Cutterhead Guard Fence F Infeed Table G Infeed Table Extension H Power Cord Depth of Cut Adjustment Knob Depth of Cut Scale K Depth of Cut Lock Knob L Rubber Foot Pads...
  • Page 8: Installation

    CONTENTS OF PACKAGE LIST OF LOOSE PARTS A. Jointer Assembly B. Fence Slide Bracket Assembly C. Fence D. Fence Bracket E. Vacuum Adapter 4” to 2-1/2” & 2-1/4” F. Push Blocks (2) G. Hex Wrenches - 2.5mm & 4mm H. T25 Screwdriver I.
  • Page 9: Assembly

    ASSEMBLY THE MACHINE MUST NOT BE PLUGGED IN AND THE POWER SWITCH MUST BE IN THE 'OFF' POSITION UNTIL ASSEMBLY IS COMPLETE. FENCE ASSEMBLY PROCEDURE 1. Assemble the Fence Bracket (A) to the jointer base (B). Use the four Socket Button Head Screws (C) to lock the bracket in place.
  • Page 10 ASSEMBLY THE MACHINE MUST NOT BE PLUGGED IN AND THE POWER SWITCH MUST BE IN THE 'OFF' POSITION UNTIL ASSEMBLY IS COMPLETE. CONTINUED FROM PAGE 9 5. With the tilt lock lever assembly in place on the UNDERSIDE positioned fence sliding bracket and fence bracket, put the special rectangular shaped Nut (A) onto the VIEW OF lever handle’s threaded shaft.
  • Page 11 ASSEMBLY DUST PORT THE MACHINE MUST NOT BE PLUGGED IN AND THE POWER SWITCH MUST BE IN A Dust Port is supplied with the jointer to help THE OFF POSITION UNTIL ALL ADJUSTMENTS ARE connect it to a standard 4 inch or 2-1/2 inch vacuum COMPLETE.
  • Page 12: Operation

    OPERATION NOTICE: This operations section was designed to give instructions on the basic operations of this jointer. However, it is in no way comprehensive of every jointer operation. It is strongly recommended that you read books, trade magazines, or get formal training to maximize the potential of your jointer while minimizing the risks.
  • Page 13 OPERATION FEEDING THE WORKPIECE Place the workpiece on top of the right, infeed table. The workpiece will be cut on its underside by the rotating cutterhead knives. When jointing, the feeding direction of the workpiece is right-to-left over the cutterhead. FIG. 14. 1.
  • Page 14: Adjustments

    ADJUSTMENTS THE MACHINE MUST NOT BE PLUGGED IN AND THE POWER SWITCH MUST BE IN THE OFF POSITION UNTIL ALL ADJUSTMENTS ARE COMPLETE. FENCE ADJUSTMENTS 1. To move the fence across the table, loosen the lock lever (A), slide the fence to the desired position on the FIG.
  • Page 15 ADJUSTMENTS THE MACHINE MUST NOT BE ROTATING OR REPLACING KNIFE INSERTS PLUGGED IN AND THE POWER SWITCH MUST BE IN This machine has a helical-style cutterhead with six THE OFF POSITION UNTIL ALL ADJUSTMENTS ARE rows of Carbide knife inserts. Each of the 16 inserts COMPLETE.
  • Page 16: Number Of Carbide Knife Inserts, 2-Sided

    ADJUSTMENTS TABLE ADJUSTMENTS THE MACHINE MUST NOT BE PLUGGED IN AND THE POWER SWITCH MUST BE IN The infeed and outfeed tables are preset at the THE OFF POSITION UNTIL ALL ADJUSTMENTS ARE factory to be aligned with the cutterhead. To ensure COMPLETE.
  • Page 17 ADJUSTMENTS CONTINUED FROM PAGE 16 5. Do the same measurement with the straight edge from the infeed table, to the same insert cutters that were used to measure the outfeed table. 6. Once the infeed and outfeed tables are aligned with the cutterhead cutters, the tables need to be checked to confirm that their surfaces are parallel with each other - ends not tilting or angling down or up from the...
  • Page 18 ADJUSTMENTS CONTINUED FROM PAGE 17 5. To lower, tighten the locking set screw on the top- side of the extension support. Fig.31. 6. Repeat steps 1 through 5 for leveling the infeed table extension support. FIG. 31 REPLACING THE DRIVE BELT 1.
  • Page 19: Maintenance

    MAINTENANCE Turn the power switch “OFF” and disconnect the plug from the outlet prior to adjusting or maintaining the machine. DO NOT attempt to repair or maintain the electrical components of the motor. Contact a qualified service technician for this type of maintenance. 1.
  • Page 20: Parts Diagrams & Parts Lists

    PARTS DIAGRAM...
  • Page 21 PARTS LIST PART PART DESCRIPTION QTY. QTY. DESCRIPTION TABLE P20-800HSP-1 BELT P20-600H-40 RIGHT COVER P20-800H-2 BELT GUARD P20-600H-41 OUTFEED SUPPORT P20-800H-3 ADJUST SCREW P20-600H-43A SET SCREW M6x8L P20-600H-4 VACUUM ADAPTOR P20-800H-44 END COVER P20-800H-5 FOAM SEAL 3 P20-800H-45 BUTTON HD SCREW M6x12L P20-600H-6 SCREW M6xP1.0...
  • Page 22: Warranty

    PARTS CONTINUED PART DESCRIPTION QTY. SWITCH BOX P20-600H-29 BRUSH P20-600H-320 ON/OFF SWITCH P20-600H-323 323a SWITCH COVER P20-600H-323-1 SWITCH KEY P20-600H-324 POWER CORD P20-600H-325 325a GROMMET P20-600H-325-1 325b SLEEVE 12x22Lx0.8T P20-600H-325-2 WARRANTY...
  • Page 23: Troubleshooting

    TROUBLESHOOTING FOR YOUR OWN SAFETY, ALWAYS TURN OFF AND UNPLUG THE MACHINE BEFORE CARRYING OUT ANY TROUBLESHOOTING. SYMPTOM POSSIBLE CAUSES SOLUTIONS Machine will not start. 1. No power 1. Check power source, plug and wiring. 2. Blown fuse 2. Check fuse, replace if it is blown. 3.
  • Page 24 20-800HSP For more information: 25 Commerce Way North Andover, MA 01845 877-884-5167 / 978-528-5380 techsupport@rikontools.com www.rikontools.com 20-800HSPM1...
