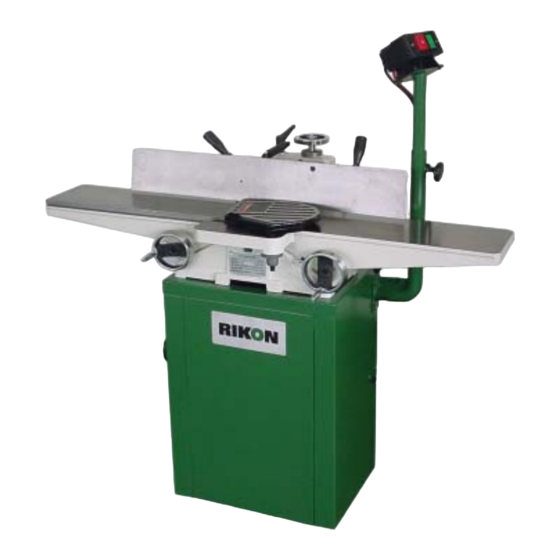

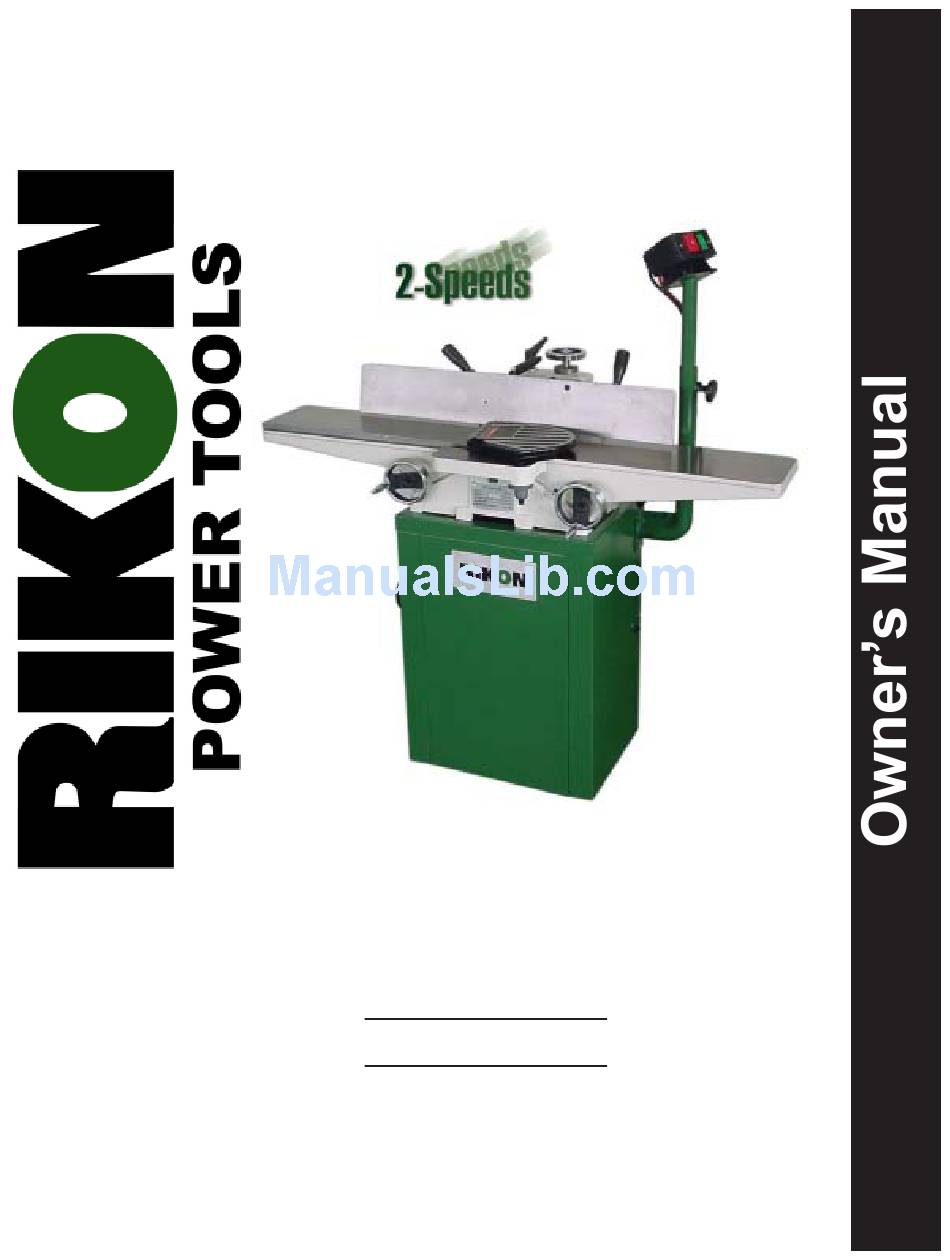

- Page 1 6” Jointer Model: 20-110 Record the serial number and date of purchase in your manual for future reference. Serial number: Date of purchase: For more information: www.rikontools.com info@rikontools.com For Parts or Questions: techsupport@rikontools.com 877-884-5167 Part # 20-110M2...
-
Page 2: Safety Warnings
Operator Safety: Required Reading IMPORTANT! Safety is the single most important consideration in the operation of this equipment. The following instructions must be followed at all times. There are certain applications for which this tool was designed. We strongly recommend that this tool not be modified and/or used for any other application other than that for which it was designed. -
Page 3: Jointer Safety Rules
ALWAYS DISCONNECT TOOLS. Disconnect tools before servicing and when changing accessories such as blades, bits, and cutters. ALWAYS AVOID ACCIDENTAL STARTING. Make sure switch is in “OFF” position before plugging in cord. NEVER LEAVE TOOLS RUNNING UNATTENDED. ALWAYS CHECK FOR DAMAGED PARTS. Before initial or continual use of the tool, a guard or other part that is damaged should be checked to assure that it will operate properly and perform its intended function. -
Page 4: Table Of Contents
Table of Contents Safety Warnings............................2 Jointer Safety Rules ..........................3 Specifications ............................4 Contents of Package ..........................5 Unpacking and Setup ...........................5 Loose Parts ............................6 Getting To Know Your Jointer ......................7 Assembly ..............................8 Installing Bed to Stand .............................8 Installing Polly “V” Belt ..........................8 Belt Guard..............................9 Install Fence Bed Casting ...........................9 Installing Fence to Bed .............................9... -
Page 5: Contents Of Package
Unpacking and Checking Contents Note: Unit shipped in two cartons. Stand Carton 1 Stand with Motor 1 Stand Door 1 Dust Chute 1 Multi “V-Belt” 1 Belt Guard Main Unit Carton 1 Operator’s Manual w/ Warranty Card 1 Bed Assembly 1 Fence Base Casting 1 Fence Assembly 2 Hand Wheels... -
Page 6: Loose Parts
Loose Parts in Loose Bag 2 3 3/8” Flat Washers 4 Hex Head Screw M8 3 3/8” Lock Washers 4 Hex Nut M8 3 Mounting Bolts 2 1/8” Flat Washers 1 3mm Hex Wrench 6 1/8”x3/8” Pan Head Screws 1 5mm Hex Wrench 1 Blade Lock Tool 1 8/10mm Open End Wrench 1 Blade Adjust Tool... -
Page 7: Getting To Know Your Jointer
Getting To Know Your Jointer 1. Hand Wheel for Out-feed Table 9. Out-feed Table Lock Knob 2. Out-feed Table 10. Fence Tilt Lock Handle 3. Fence 11. Belt Guard 4. Fence Adjustment Handle 12. Fence Adjustment Lock Handle 5. Cutter Guard 13. -
Page 8: Assembly
Assembly Installing Bed to Stand 1. Remove rear door on cabinet. 2. Place bed assembly on top of stand. Be sure the pulleys face the rear of the cabinet. Ask a friend for assistance with this step. (DO NOT LIFT BY TABLE ENDS, LIFT FROM CENTER OF CASTING) (Fig. -
Page 9: Belt Guard
Installing Belt Guard 1. Place the belt guard over the belt opening in the stand. 2. Line up the holes in the stand with the holes in the guard. 3. Attach the guard to the stand using two 1/4-20x1/ 2" pan head screws and two 1/4" lock washers Figure 6 (See Figure 6) Install Fence Bed Casting... -
Page 10: Mounting On/Off Switch
Mounting the On / Off Switch Mounting Hardware 1. Decide where you want to mount the on / off switch. It can be mounted on the in-feed side of the cabinet or the out-feed side. 2. Feed the two power cords through the cabinet (Fig. -
Page 11: Degree Fence Adjustment
3. Adjust the fence to a 90º angle by releasing lock handle (B, Figure 14). 4. Place a combination square on the in-feed table to check that the fence is 90º to the table. 5. If fence is not square to table, release lock handle (D, Figure 14) and turn handle (C, Figure 14) until the fence is 90º... -
Page 12: Setting Outfeed Table
Setting Out-feed Table to Cutter-head Knives WARNING DO NOT connect machine to power source at this time! Cutter-head blades are extremely sharp! Use Caution when hands are near the cutter-head! Failure to comply may cause serious injury! 1. Unplug the Jointer from the power source. Figure 16 2. -
Page 13: Installing Cutterhead Guard
8. If blade is higher or lower at the right of the table than it is at the left, slightly loosen four screws (Figure 20) by turning clockwise as viewed from the in-feed table. To lower, turn the screw clockwise. To raise, turn the screw counter- clockwise. -
Page 14: Installing Access Cover
Installing Access Cover 1. Install access cover by placing bottom of panel into access in stand and fasten by turning latch knob. (Figure 22) Figure 22 Installing Dust Chute 1. Attach the dust chute (See Figure 23) to the base with four 1/4"-10x1/2"pan head screws and four washers. -
Page 15: Operation / Maintenance
Operation Maintenance CAUTION! UTION! UTION! UTION! UTION! BEFORE CLEANING OR CARRYING OUT MAINTENANCE WORK, DISCONNECT THE MACHINE FROM THE POWER SOURCE (WALL SOCKET). NEVER USE WATER OR OTHER LIQUIDS TO CLEAN THE MACHINE. USE A BRUSH. REGULAR MAINTENANCE OF THE MACHINE WILL PREVENT UNNECESSARY PROBLEMS. -
Page 17: Parts Diagram
Cutterhead Assembly Index Part Description Q’ty Cutterhead Knife Knife Lock Bar Bearing Housing Bearing Housing Cutterhead Pulley Hex Screw/Cutterhead Locking Flat Washer 6mm Stud Bolt 10mm Lock Washer 10mm Screw/Cutterhead Set Ball Bearing 62032 Ball Bearing 62022 Pin Stop Spring Flat Washer 10mm Hex Bolt M6x12... - Page 18 Fence Assembly...
-
Page 19: Fence Assembly
Fence Assembly Index Part Description Q’ty Fence Body Handle Hex Nut 10mm Hex Socket Bolt M8-1.25x33 Pin Roll Block Hex Nut M8-1.25 Hex Bolt M8-1.25x25 Plastic Bar Handle Pin Roll Cam Wheel Hex Socket Bolt M8-1.25x25 Hex Socket Bolt M8-1.25x25 Tilt Shaft Worm Gear Hex Bolt M8-1.25x20... - Page 20 Stand and Motor Assembly...
- Page 21 Stand and Motor Assembly Index Part Description Q’ty Tapping Screw Switch Switch Box Stain Relief Bushing Cable Cable Switch Support (Upper) Lock Knob Switch Support (Lower) Hex Bolt M8-1.25x12 Flat Washer 8mm Pan Head Screw M5-0.08x16 J-Belt 5940 Hex Bolt M6-1.0x12 Flat Washer 6mm Motor Pulley Motor...
- Page 22 Bed Assembly...
-
Page 23: Bed Assembly
Bed Assembly Index Part Description Q’ty Rear Table Lock Knob Adjust Nut Flat Washer 10mm Bushing Adjusting Screw Ball Crank Pivot Pin Set Screw Lock Screw Hand Wheel Handle Handle Shaft Bolt Front Table Retaining Washer Spring Spring Knob Retainer Pointer Ball Crank Base... -
Page 24: Notes
NOTES:... -
Page 25: Warranty
WARRANTY 2-Year Limited Warranty RIKON Power Tools/Richen Enterprise, Inc. (“Seller”) warrants to only the original retail consumer/ purchaser of our products that each product be free from defects in materials and workmanship for a period of two (2) years from the date the product was purchased at retail. This warranty may not be transferred. -
Page 26: For More Information
For more information: 400 West Cummings Park, Suite 1000 Woburn, MA 01801 877-884-5167 / 781-933-8400 techsupport@rikontools.com www.rikontools.com Copyright Richen Enterprise, Inc. 2005 Printed in China...
