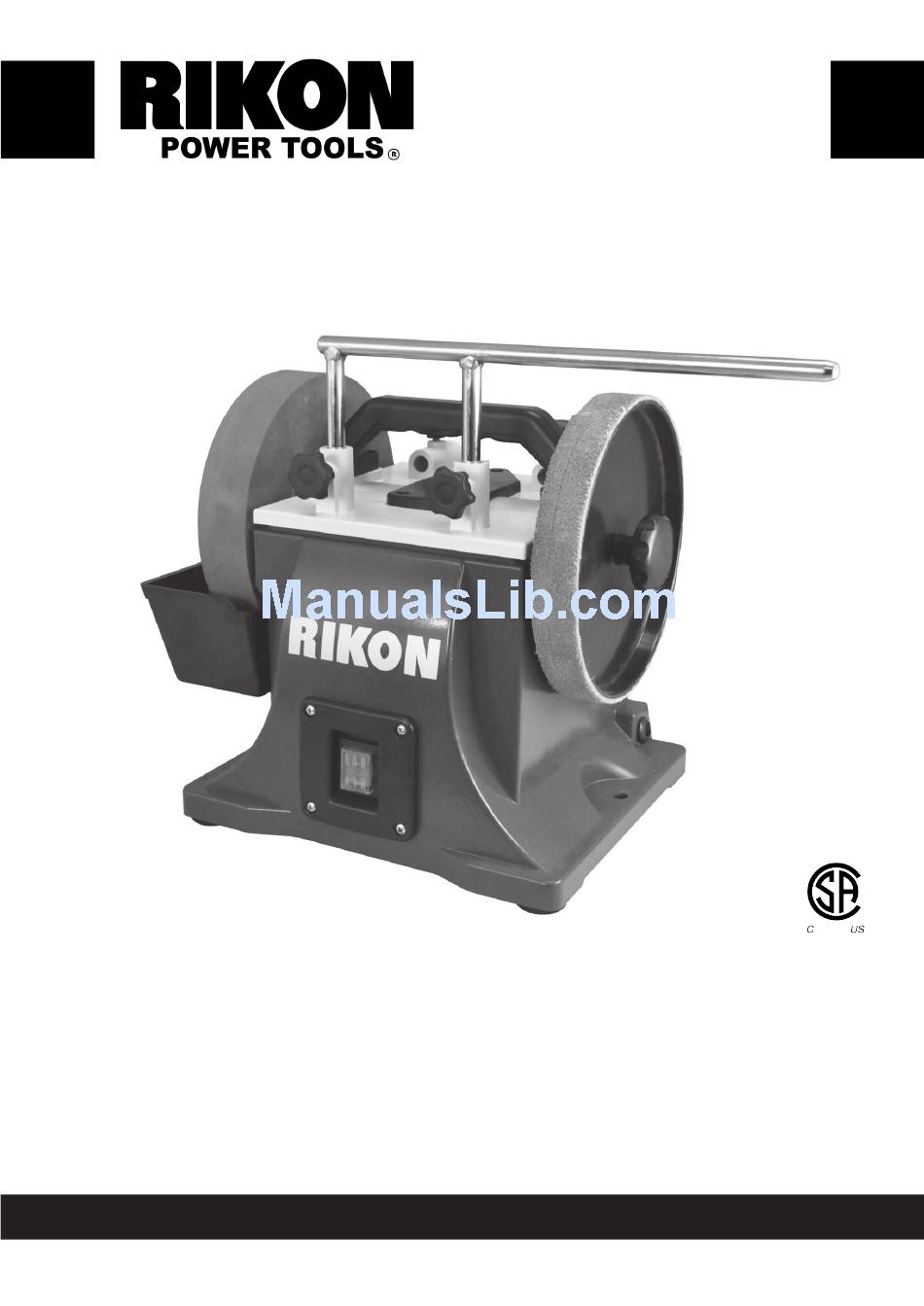

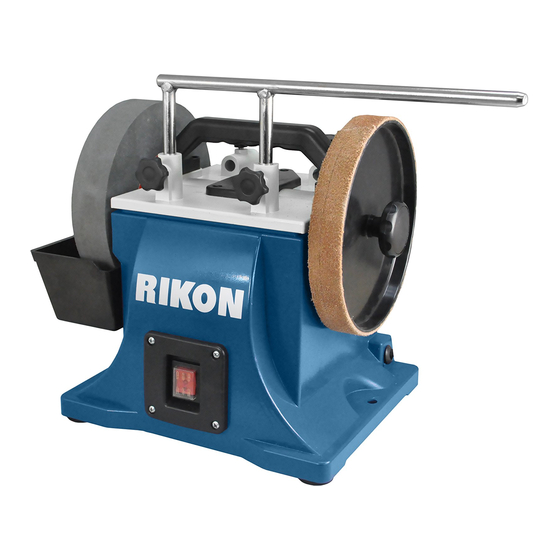

82-100
8" Wet Sharpener
226002
Operator's Manual
Record the serial number and date of purchase in your manual for future reference.
Serial Number: ______________________ Date of purchase: ______________________
For technical support or parts questions, email techsupport@rikontools.com or call toll free at (877)884-5167
www.rikontools.com
82-100M4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rikon Power Tools 82-100
Summary of Contents for Rikon Power Tools 82-100
- Page 1 82-100 8” Wet Sharpener 226002 Operator’s Manual Record the serial number and date of purchase in your manual for future reference. Serial Number: ______________________ Date of purchase: ______________________ For technical support or parts questions, email techsupport@rikontools.com or call toll free at (877)884-5167 www.rikontools.com...
-
Page 2: Table Of Contents
Changes and improvements may be made at any time, with no obligation on the part of Rikon Power Tools to modify previously delivered units. Reasonable care has been taken to ensure that the information in this manual is correct, to provide you with the guidelines for the proper safety, assembly and operation of this machine. -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS Refer to them often. GENERAL SAFETY 4. AVOID A DANGEROUS WORKING Operating machinery can be dangerous if safety ENVIRONMENT. DO NOT use electrical tools in a and common sense are ignored. The user must be familiar with the operation of the tool. Read damp environment or expose them to rain. - Page 4 SAFETY INSTRUCTIONS 14. REMOVE ALL MAINTENANCE TOOLS 24. STAY ALERT, WATCH WHAT YOU ARE from the immediate area prior to turning “ON” the DOING, AND USE COMMON SENSE WHEN machine. OPERATING A POWER TOOL. A moment of inattention while operating power 15.
- Page 5 SAFETY INSTRUCTIONS 7. DO NOT USE A WHEEL THAT VIBRATES. SPECIFIC SAFETY Dress the grinding wheel, replace it, or replace INSTRUCTIONS FOR THE the bearings of the shaft. Unsuitable grinding WET SHARPENER wheels can come apart, throwing fragments that may cause injury to you or the machine. Basic precautions should always be followed when using your wet sharpener.
-
Page 6: Electrical Safety
SAFETY INSTRUCTIONS 24. NEVER STOP THE GRINDER BY FORCING 17. CLEAN THE MACHINE thoroughly when MATERIAL INTO THE WHEEL. Let the grinder processing different types of workpieces (steel, stop rotating on its own. aluminium, etc.). Combining metal and wood dust can create an explosion or fire hazard. -
Page 7: Extension Cords
SAFETY INSTRUCTIONS connect the equipment grounding conductor EXTENSION CORDS to a live terminal if repair or replacement of the electric cord or plug is necessary. Keep the extension cord clear of the working area. Position the cord so CHECK with a qualified electrician or service that it will not get caught on lumber, tools or personnel if you do not completely under-stand other obstructions while you are working with... -
Page 8: Carton Contents
CARTON CONTENTS UNPACKING AND CHECKING CONTENTS CAUTION: DO NOT use acetone, gasoline or lacquer thinner to remove any protective coatings. This Wet Sharpener will require a minimal amount of assembly. 3. Compare the items to Figure 1; verify that all items are accounted for before discarding the 1. -
Page 9: Machine Overview
MACHINE OVERVIEW 82-100 8” WET SHARPENER OVERVIEW FIG. 2 FIG. 2 A. 8” Wet Grinding Wheel, 220 Grit G. Wheel Lock Knob B. Universal ‘F’ Support Tool Rest H. On/Off Switch with Forward/Reverse C. Tool Holder Jig Mounting Hole D. Horizontal Mounts with Knobs Rubber Feet E. - Page 10 ASSEMBLY PLACEMENT & PREPARATION THE MACHINE MUST NOT BE PLUGGED IN AND THE POWER SWITCH MUST BE See Figure 3 for the minimum working clear- ance in the set-up shown. Remember that the IN THE OFF POSITION UNTIL ASSEMBLY OF THE sharpener has no specific front or back side and PARTS AND ALL ADJUSTMENTS ARE COMPLETE.
- Page 11 ASSEMBLY & OPERATION GRINDING AGAINST WHEEL ROTATION FIG. 4 The sharpener has been outfitted with a power switch that permits the grinding wheel to rotate in the front/forward or the back/reverse direction. • DISCONNECT SHARPENER FROM POWER! • Position the machine with the ON/OFF switch facing you.
- Page 12 ASSEMBLY & OPERATION WATER RESERVOIR The wet sharpener is designed for wet grinding and should never be used without water. Before filling the water reservoir, identify the reservoir mounting slots on the machine sides (A), as shown in Figure 7. These slots allow the reservoir to be mounted during grinding and lowered when not in use.
-
Page 13: Operation
OPERATION WHEEL DRESSING 4. Move the wheel dresser forward until it makes light contact with the wet wheel. After contact has Depending on the type of grinding you do, the been made, slide the wheel dresser side to side grinding wet wheel may require periodic dressing. across the tool rest to dress the grinding wheel until the edges of the grinding wheel are square A variety of dressing tools are available separately... -
Page 14: M A I N T E N A N C
OPERATION PERMANENT MOUNTING If the sharpener is not permanently mounted to a work surface, and remains portable, the machine’s To avoid serious injury, use the mounting holes in base should be temporarily clamped to a table or the base of the wet sharpener to firmly attach it to board/plywood. -
Page 15: Wiring Diagram
WIRING DIAGRAM Wiring Diagram for 82-100 This machine must be grounded. Wet Sharpener Replacement of the power supply cable should only be done by a qualified electrician. See pages 6 and 7 for additional electrical information. This tool is intended for use on a circuit that has a 120 volt electrical receptacle. -
Page 16: Part S D I A G R A
PARTS DIAGRAM Page 16... -
Page 17: Part S L I S
PARTS LIST Page 17... -
Page 18: Tr O U B L E S H O O T I N
TROUBLESHOOTING TO PREVENT INJURY TO YOURSELF or damage to the Wet Grinder, turn the switch to the “OFF” position and unplug the power cord from the electrical receptacle before making any adjustments. Symptom Probable Cause Corrective Action Low voltage Check power source for proper voltage Inspect motor for loose or open Open circuit in motor or loose Motor will not start... -
Page 19: Wa R R A N T
WARRANTY To take advantage of this warranty, please fill out the warranty card that was included with your order and send it to: RIKON Warranty 16 Progress Rd. Billerica, MA 01821 The card must be entirely completed in order for it to be valid. If you have any questions, please contact us at 877-884-5167 or email RIKON at warranty@rikontools.com. - Page 20 82-100 For more information: 16 Progress Road Billerica, MA 01821 877-884-5167 / 978-528-5380 techsupport@rikontools.com www.rikontools.com 82-100M4...
