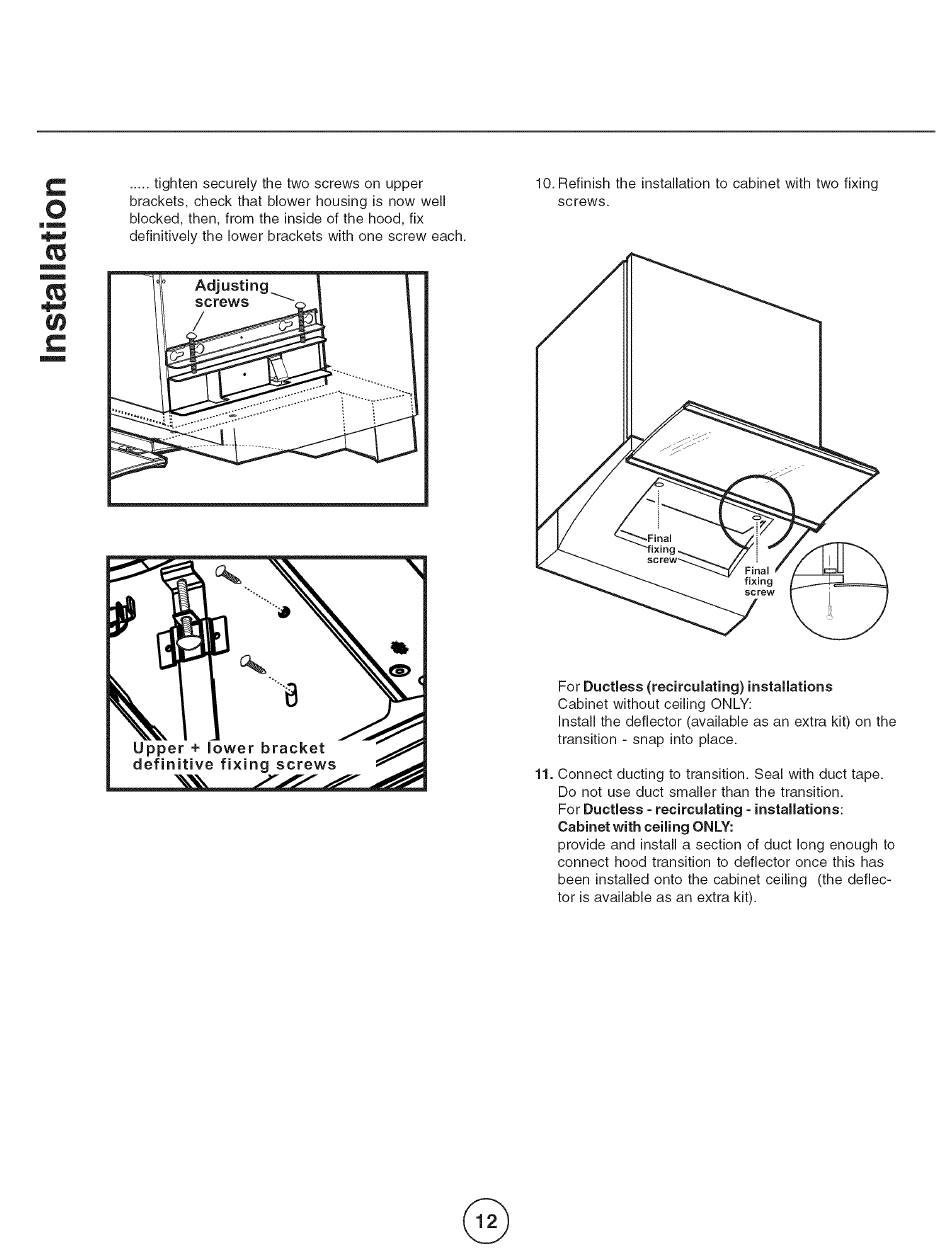

..... tighten securely the two screws on upper
brackets, check that blower housing is now well
blocked, then, from the inside of the hood, fix
definitively the lower brackets with one screw each.
10. Refinish the installation to cabinet with two fixing
screws.
g screws
11.
For Ductless (recirculating) installations
Cabinet without ceiling ONLY:
Install the deflector (available as an extra kit) on the
transition - snap into place.
Connect ducting to transition. Seal with duct tape.
Do not use duct smaller than the transition.
For Ductless - recirculating - installations:
Cabinet with ceiling ONLY:
provide and install a section of duct long enough to
connect hood transition to deflector once this has
been installed onto the cabinet ceiling (the deflec-
tor is available as an extra kit).
@
