DIN Rail Control Processor

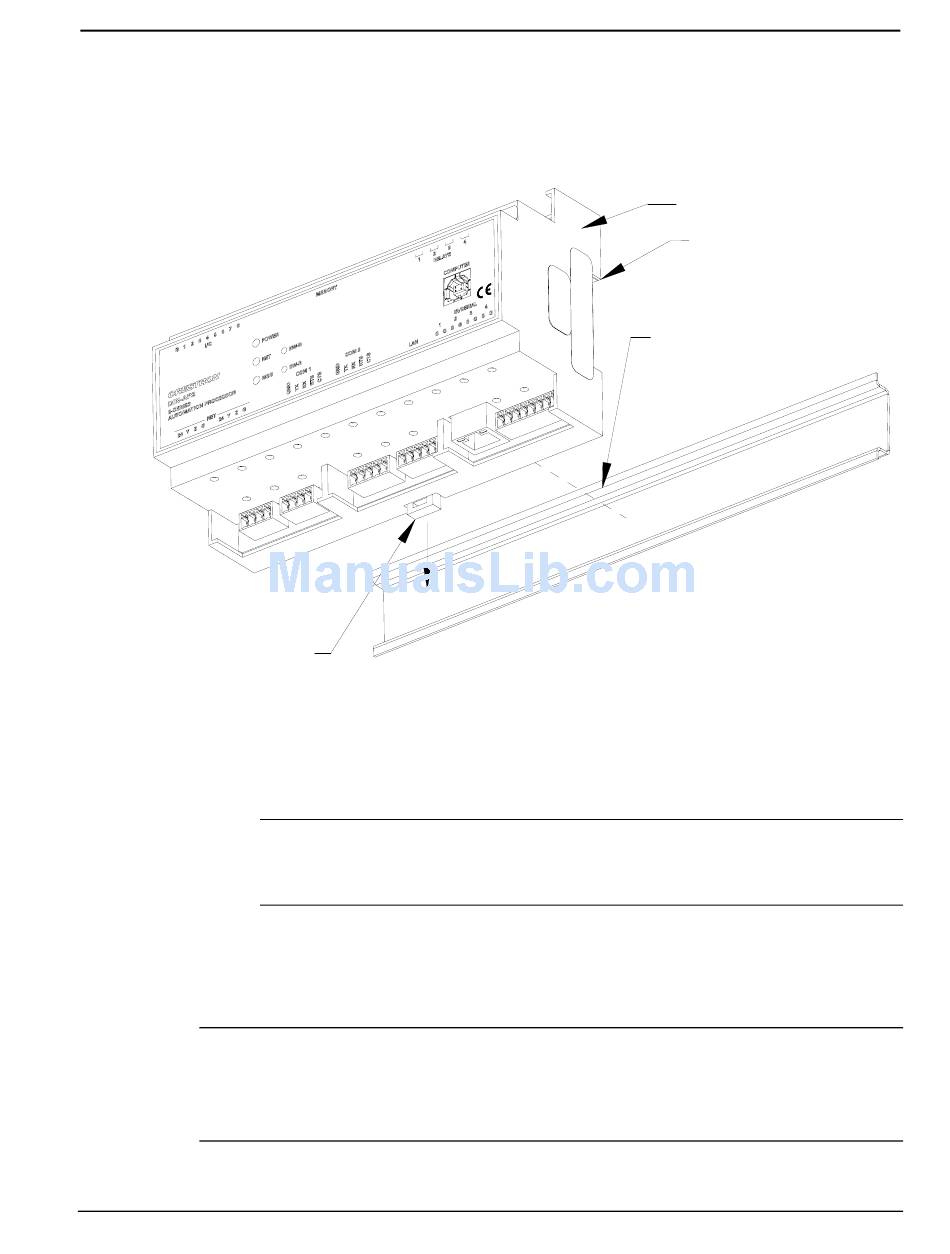

The DIN-AP2 is designed for installation on a DIN rail. Refer to the
following diagram when installing.
Installing the DIN-AP2
DIN RAIL RELEASE
1. Place the top of the DIN-AP2's rail mount over the top of the DIN
2. Tilt the bottom of the DIN-AP2 toward the DIN rail until it snaps
To remove the DIN-AP2 from the DIN rail, use a small, flat object (i.e. a
flat-head screwdriver) to pull the DIN rail release and tilt the bottom of
the DIN-AP2 away from the DIN rail.
NOTE: Certain third party DIN cabinets provide space for an
informational label between each DIN rail row. Crestron's Engraver
software (version 4.0 or later) can generate appropriate labels for all
Crestron DIN rail products.
14 • DIN Rail Control Processor: DIN-AP2
rail.
into place.
NOTE: When mounting DIN rail products, it may be necessary to
use a flat-head screw driver to pull the DIN rail release tab while
snapping the device onto the DIN rail.
DIN RAIL
(NOT SUPPLIED)
Operations & Installation Guide – DOC. 6662A
Crestron DIN-AP2
DIN-AP2
TOP
