DIN Rail Control Processor

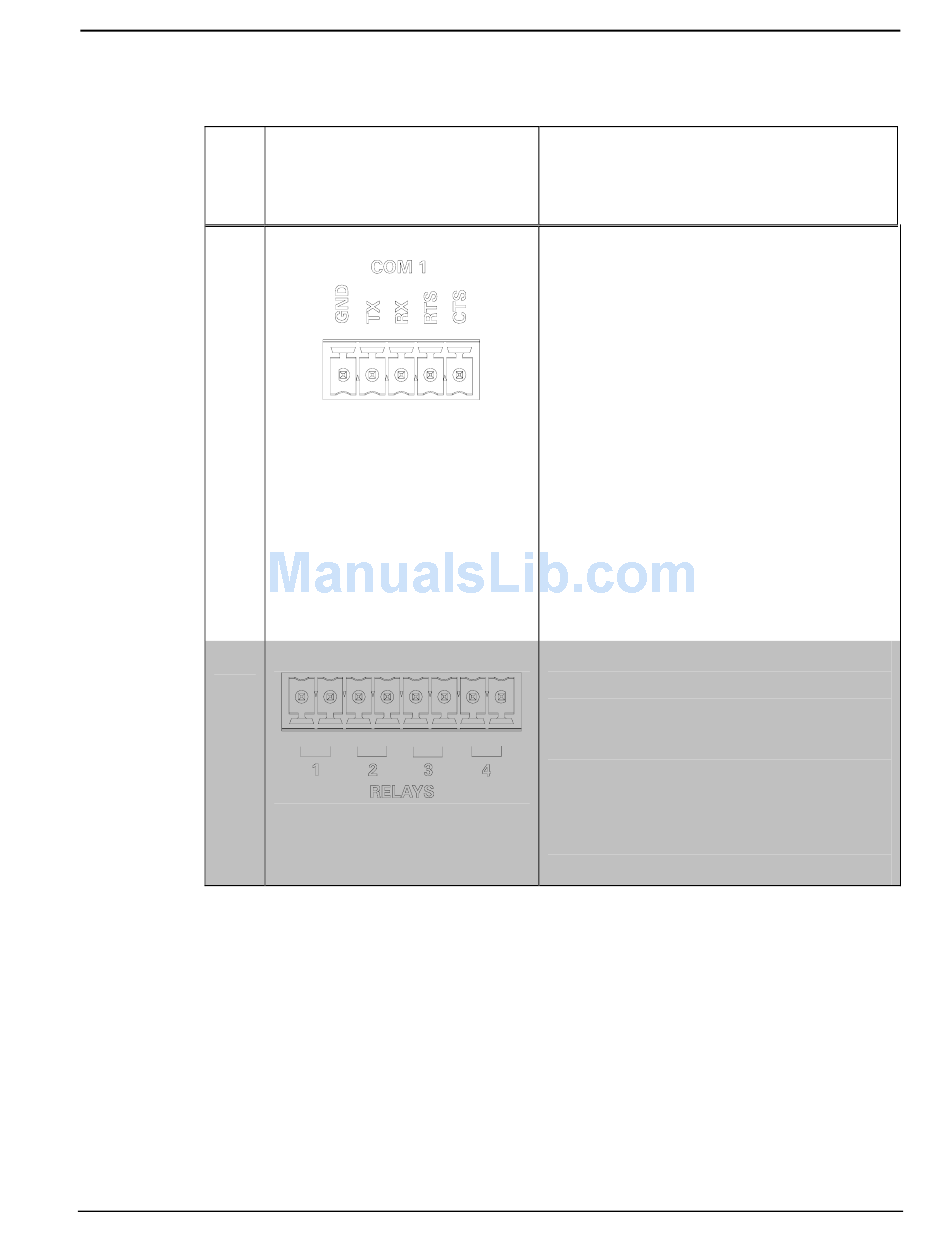

Connectors, Controls & Indicators (Continued)
#
9
10
(Continued on following page)
10 • DIN Rail Control Processor: DIN-AP2
CONNECTORS
CONTROLS &
INDICATORS
COM1 & COM 2
RELAYS
1
,
DESCRIPTION
(2) 5-pin 3.5 mm detachable
terminal blocks, bidirectional
comprising (2) RS-232 ports
Max Wire Size: 1.5 mm
(16 AWG)
Up to 115.2k baud
Hardware and software
handshaking support
GND: Ground
TX: Transmit data
RX: Receive data
RTS: Request to send
CTS: Clear to send
(1) 8-pin 3.5 mm detachable
terminal block comprising (4)
normally open, isolated relays
Max Wire Size: 1.5 mm
(16 AWG)
Rated 1 Amp, 30 Volts AC/DC
MOV arc suppression across
contacts
Operations & Installation Guide – DOC. 6662A
Crestron DIN-AP2
2
2
