DO GUIDE

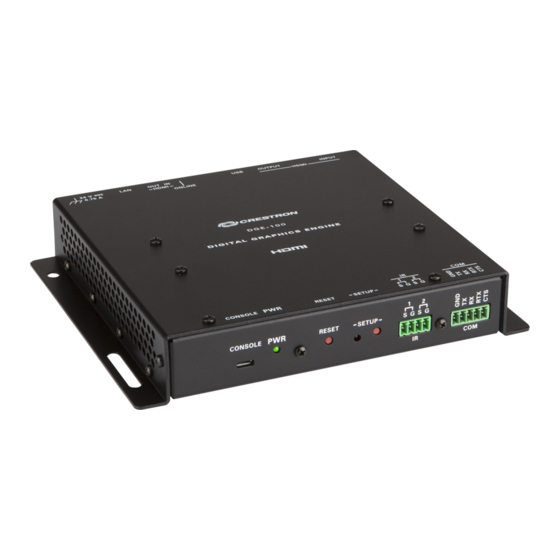

DGE-100/DM-DGE-200-C
Digital Graphics Engines
DO Install the Device
The Crestron ® DGE-100 and DM-DGE-200-C can be mounted onto a flat surface or onto a rack
rail.
Mounting onto a Flat Surface
Using four mounting screws (not included), mount the device onto a flat surface.
Mounting onto a Flat Surface (DGE-100 Shown)
Mounting onto a Rack Rail
Using two mounting screws (not included), mount the left or right mounting flange of the device
onto the front or rear rail of a rack.
Mounting onto a Rack Rail (DM-DGE-200-C Shown)
DO Check the Box
QTY PRODUCT
1 Cable, USB 2.0, A - Micro B, 6' (1.8 m)
1 Connector, 4-Pin
1 Connector, 5-Pin
Items for the DGE-100 Only
1 Power Pack, 24 Vdc 0.75 A, 100-240 Vac
Items for the DM-DGE-200-C Only
1 Power Cord, 5' 10" (1.78 m)
1 Power Pack, 24 Vdc 2.5 A, 100-240 Vac
DO Connect the Device
Make connections to the DGE-100 or DM-DGE-200-C using Crestron power supplies for
Crestron equipment.
NOTE: Connection to the included power pack is not required if PoE (Power over Ethernet) is
used to power the device. Use one or the other but not both at the same time.
DGE-100 Top Panel Connections
HDMI ® INPUT:
USB:
Digital Video and 10BASE-T/100BASE-TX
To Touch Screen Ethernet to LAN PoE
Audio Input
HDMI OUTPUT:
To Display
DGE-100 Bottom Panel Connections
IR:
To IR Controllable
Devices
USB:
To PC Running
Crestron Toolbox™ Software
COLOR PART NUM.
Black 2038114
2003576
2003577
2045865
2042043
2045873
LAN:
Ground
24 V 0.75 A:
From Power Pack
COM:
To RS-232 Device
