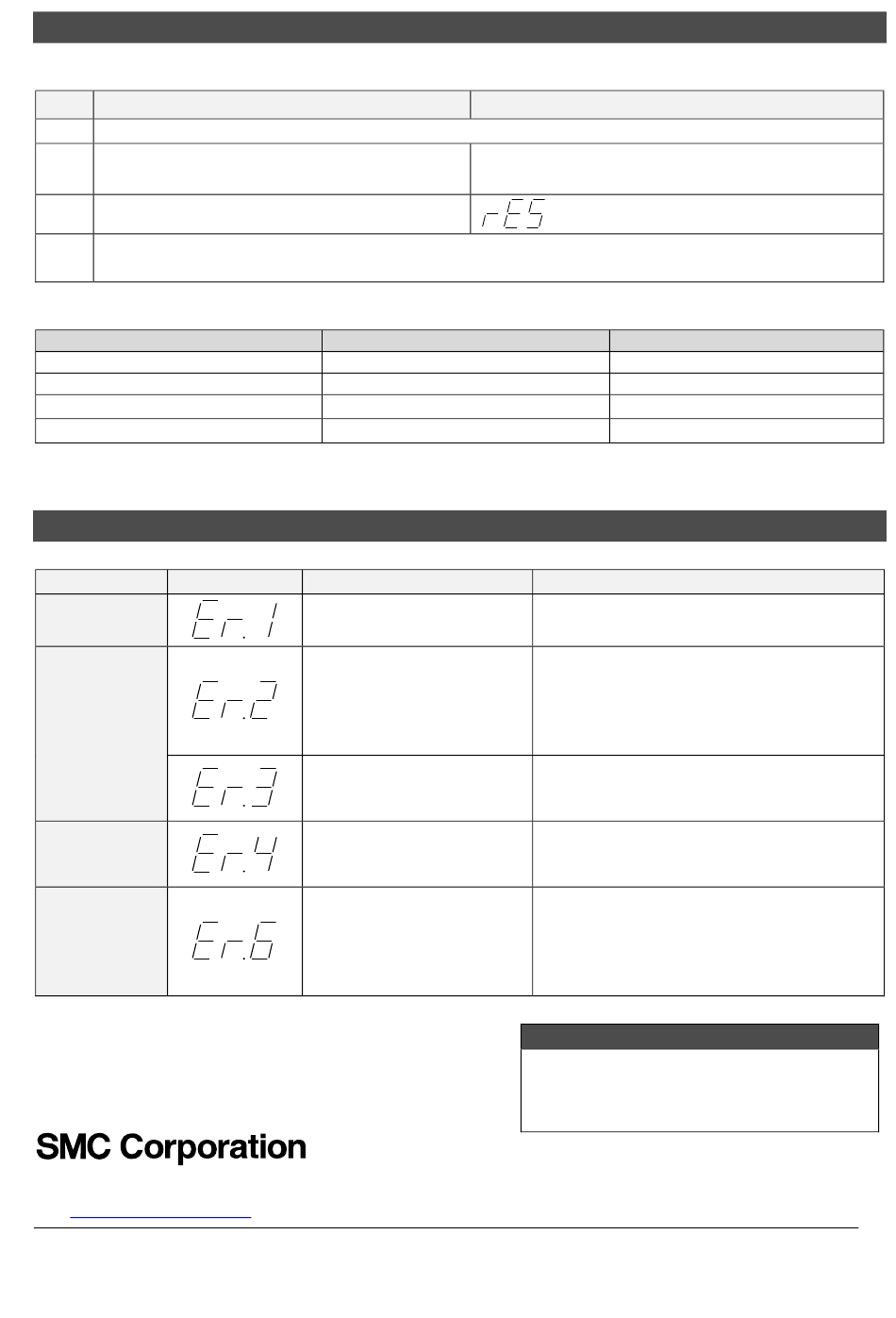

Reset function
Clears the setting values for the reset contents items below.
No
(1) Unlock keys (refer to P8).
Press the △ and ▽ keys
(2)
simultaneously for 3 seconds or more.
(3)
The settings are reset and returned to the condition before power was supplied.
(4)
(keys are locked).
Reset contents.
Item
F_1
F_2
P_1、P_2
P1～P_4
*(Note) Gain (G.L.) and sensitivity (S.L.) are not reset.
Error indicating function
Error name LED display
Over range of
input signal
System error
Solenoid
valve
error
Residual
pressure
error
Refer to the SMC website (URL http://www.smcworld.com)
for more information about troubleshooting.
This operation manual refers to all standard types and is
partially applicable to special models.
4-14-1, Sotokanda, Chiyoda-ku, Tokyo 101-0021 JAPAN
Tel: + 81 3 5207 8249 Fax: +81 3 5298 5362
URL https://www.smcworld.com
Note: Specifications are subject to change without prior notice and any obligation on the part of the manufacturer.
© SMC Corporation All Rights Reserved
Key operation
Reset contents
0%F.S.
100%F.S.
100%F.S.
0%F.S.
Contents of error
Input signal exceeds the
rated value range.
Reading or writing errors
occurred in EEPROM.
Reading and writing
errors occurred in
memory.
Solenoid valve
failure.
Out of range error of zero
clear
(current) pressure is displayed
is displayed for approx. 1 second
Reduce input signal to within the rated
range and restart the power supply.
Please execute "Initialize (refer to P14)"
when ITV do not operate normally after
restarting the power supply.
Please contact us, when ITV do not
operate normally after "Initialize".
Please contact us when ITV do not
operate normally after restarting the
power supply.
Replace the solenoid valve.
For the replacement procedure contact
SMC.
Please operate "Zero clear"
within the range of 5% F.S..
Please operate "Zero clear" after the
secondary pressure of ITV is became to
atmosphere.
- 15 -
LED Display
Applicable model
Current/Voltage type
Current/Voltage type
Switch output type
Preset input
Countermeasure
