Reference Manual
00809-0600-4410, Rev AB
December 2023
Emerson Wireless 1410S Gateway and
781S Smart Antenna

Advertisement

Table of Contents
loading

Related Manuals for Emerson Rosemount 1410S

Summary of Contents for Emerson Rosemount 1410S

  • Page 1 Reference Manual 00809-0600-4410, Rev AB December 2023 Emerson Wireless 1410S Gateway and 781S Smart Antenna...
  • Page 2 The products described in this document are NOT designed for nuclear-qualified applications. Using non-nuclear qualified products in applications that require nuclear-qualified hardware or products may cause inaccurate readings. For information on Emerson nuclear-qualified products, contact your local Emerson Sales Representative.

  • Page 3: Table Of Contents

    Installing the Gateway......................21 3.1 Emerson Gateway 1410S2 installation overview..............21 3.2 Power specifications......................... 21 3.3 Mounting the Emerson 1410S2 Gateway................22 3.4 Mounting the Emerson 781S Smart Antenna................ 24 3.5 Connecting the Emerson 1410S to the 781S Smart Antennas..........26 3.6 Verify operations........................31 Chapter 4  Commissioning........................33 4.1 Overview.............................33 4.2 System requirements........................33...
  • Page 4 D.2 Latency considerations in control logic design and operation...........67 D.3 Requirements..........................67 D.4 Mounting the Gateway......................67 D.5 Setup............................68 ® Appendix E  Dual WirelessHART Feature Guide..................71 ® E.1 Hardware compatibility for Dual WirelessHART ..............71 ® E.2 Upgrading a 1410S Gateway with Dual WirelessHART ............71 ® E.3 Dual WirelessHART Operation Guide..................74 Emerson.com...

  • Page 5: Chapter 1 Introduction

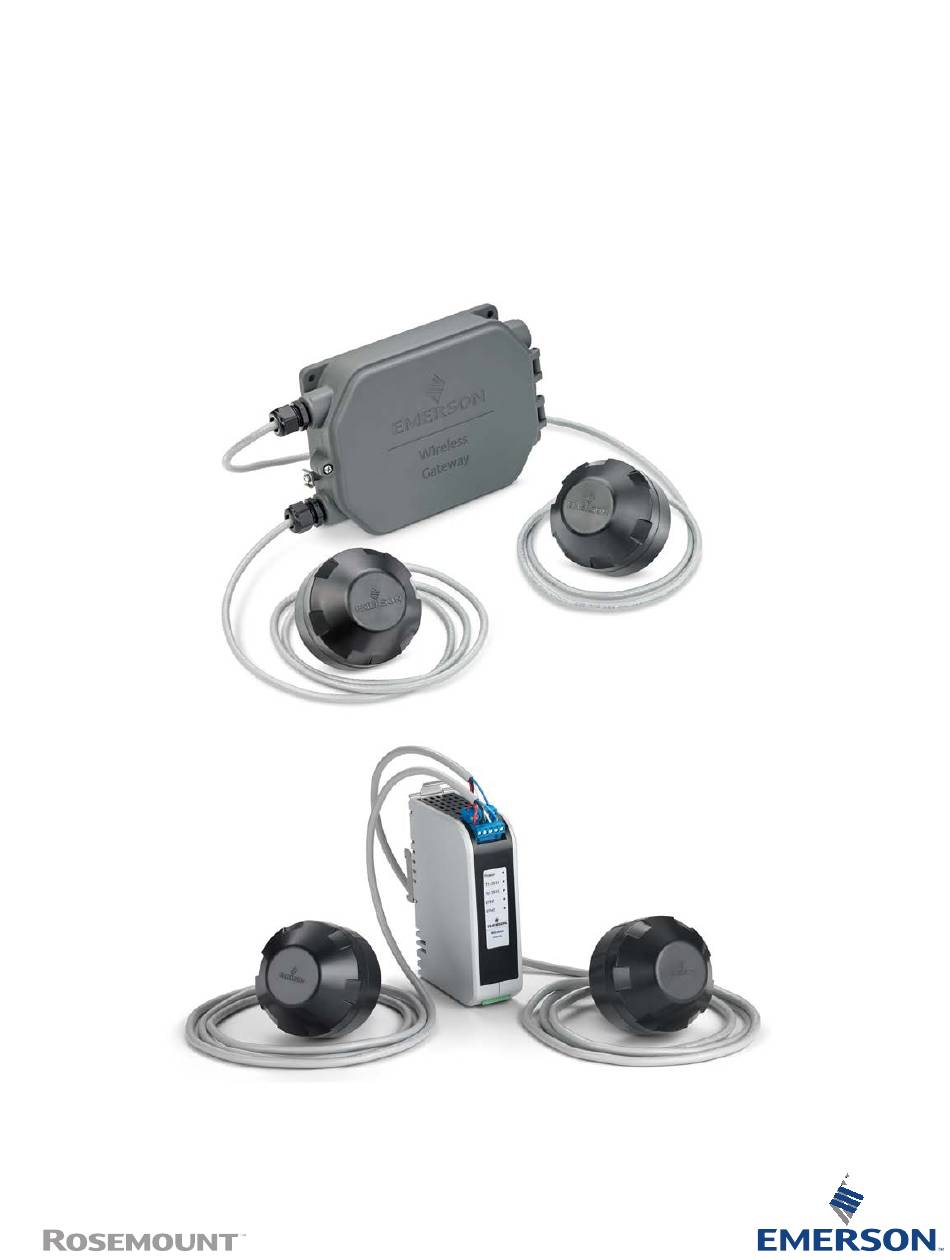

    Introduction 1.1  Emerson Wireless 1410S Gateway 781S Smart Antenna The Emerson Wireless 1410S Gateway and 781S Smart Antenna combine to create the main access point of a wireless network. Modbus communications over RS-485 or ® Ethernet provide universal integration and system interoperability. The optional OPC or...
  • Page 6 Introduction Reference Manual December 2023 00809-0600-4410 Emerson.com...

  • Page 7: Chapter 2 Configuration

    Powering the Gateway For the Emerson 1410S, bench top power will be needed to power the Gateway by wiring a 10.5–30 Vdc (24 Vdc if configured with I.S. barriers) power source. See...
  • Page 8 Gateway. When making physical connections to the Gateway, the installer should route wire for the Emerson 781S units through the left side entries using a separate entry for each. Power, Ethernet, and serial Modbus wiring should be routed through the right side wiring ®...
  • Page 9 Reference Manual Configuration 00809-0600-4410 December 2023 2. Select the Network and Sharing Center. 3. Select Local Area Connection. 4. Select Properties. 5. Select Internet Protocol Version 4 (TCP/IPv4) → Properties. Emerson 1410S/781S...
  • Page 10 9. Select OK for both the Internet Protocol (TCP/IP) Properties window and the Local Area Connection Properties window. 2.3.3  Windows ™ Procedure 1. Select the network icon in the lower right corner of the Windows 10 workspace. 2. Select Network & Internet Settings. Emerson.com...
  • Page 11 Reference Manual Configuration 00809-0600-4410 December 2023 Figure 2-2: WiFi Connections Menu 3. Select Change adapter options. Figure 2-3: Network & Internet Settings 4. Right click the network interface connection that the gateway is plugged into, and select Properties. Emerson 1410S/781S...
  • Page 12 PC/laptop can be returned to the original network after the gateway has been configured. 6. Select the Use the following IP address button. Figure 2-5: IP Address Properties 7. In the IP Address field, enter 192.168.1.11. Emerson.com...
  • Page 13 Disable proxies Use these steps to disable proxies. Procedure 1. Open web browser. 2. Navigate to Tools → Internet Options → Connections → LAN Settings (may be a different process for other browsers). 3. Under Proxy server, uncheck the Use a proxy server... box. Emerson 1410S/781S...
  • Page 14 You will have to configure both networks individually. a) Log on as Username: admin b) Type in password: default 2. Navigate to System Settings → Gateway → Ethernet Communication to enter the network settings. a) Configure a static IP Address or set for DHCP and enter a Hostname. Emerson.com...
  • Page 15 Resetting applications will temporarily disable communications with field devices. 2.3.6  User accounts There are four role-based user accounts for the Gateway with varying levels of access. The access can be changed on the System Settings → Users → User Accounts by the admin user. The figure below displays this access. Emerson 1410S/781S...
  • Page 16 4. Select Save Changes. Note It is suggested the default security settings in System Settings → Users → User Options be changed to the local IT best practices or the “Normal” setting after initial login. Strong or custom settings are available for more robust passwords. Emerson.com...
  • Page 17 Network Time Protocol (NTP) is recommended for the best network performance because it always adjusts time to match the network time server. 2.3.9  To change the TCP/IP network settings Procedure 1. Navigate to System Settings → Gateway →  Ethernet Communication. 2. Select Specify an IP address (recommended). 3. Enter the following: Emerson 1410S/781S...
  • Page 18 Rosemount does not recommended users stay logged on to a single page or a large number of users on multiple pages for long periods of time. The additional loading can slow the flow of data. By default, the Gateway logs users out after a long period of time with no activity. Emerson.com...
  • Page 19 1. Turn off power to the Gateway. 2. Locate the Reset switch. For the Emerson 1410S2 modular housing, the switch is located inside the Gateway housing cover on the DIP switch panel board. The reset switch is labeled switch 4.
  • Page 20 Configuration Reference Manual December 2023 00809-0600-4410 Emerson.com...

  • Page 21: Installing The Gateway

    Mount the Gateway in a location allowing convenient access to the host system network (process control network). • Best practice is to install the Emerson 781S Smart Antennas centrally in the wireless network for the most direct connections to the Gateway. Physical description...

  • Page 22: Mounting The Emerson 1410S2 Gateway

    Using an uninterruptible power supply (UPS) is recommended to ensure availability during power failure. NOTICE The Emerson 781S was designed for use with the Emerson 1410S Gateway and should only be connected to the Emerson 1410S and/or other Emerson Gateway products. Table 3-2: Emerson 781S Smart Antenna Power...
  • Page 23 Four appropriate fasteners for preferred mounting method • Mounting plate (supplied with gateway) • Drill (not supplied) • Wrench (not supplied) Mount the gateway using the following procedure: Procedure Install gateway into surface as shown in Figure 3-2. Screws shown as example. Emerson 1410S/781S...

  • Page 24: Mounting The Emerson 781S Smart Antenna

    Installing the Gateway Reference Manual December 2023 00809-0600-4410 Figure 3-2: Emerson 1410S2 Surface Mounting 3.4  Mounting the Emerson 781S Smart Antenna Intended use The Smart Antenna must be used in conjunction with a network manager or network Gateway. The Smart Antenna then functions as a translator between the wired network and a wireless field network.
  • Page 25 (4.6-7.6 m) above the ground or 6 ft. (2 m) above obstructions or major infrastructure. If the Gateway is using two Emerson 781S Smart Antennas, they do not need to be installed near each other. There should be at least 3 ft. (1 m) of separation between the two antennas.

  • Page 26: Connecting The Emerson 1410S To The 781S Smart Antennas

    There are two main connection configurations for the Emerson 1410S and 781S Smart Antennas: with and without intrinsically safe barriers. The hazardous location approval option of the Emerson 781S determines whether it needs to be installed with barriers. This connection is integrated in the Gateway electronics and can be selected upon order.
  • Page 27 3.5.3  Emerson 781S installation A shielded twisted-pair cable is needed for connecting the Emerson 1410S and each 781S Smart Antennas. Each antenna can be located up to 1312 ft. (400 m) from the Gateway. Figure 3-5: Emerson 1410S Gateway and Single 781S Smart Antenna A.
  • Page 28 Installing the Gateway Reference Manual December 2023 00809-0600-4410 Figure 3-6: Emerson 1410S Gateway and Two 781S Smart Antennas A. Emerson WirelessHART 781S Smart Antenna ® B. Attach shield pair cable (Belden 3084A or equivalent) C. Optional secondary Emerson Wireless 781S Smart Antenna D.
  • Page 29 The switches number left to right going down from 5 to 1. The downward position on the switch is ON. Three DIP switches are provided to enable various terminating resistors to the RS-485 data bus. The terminating resistor on the Emerson 781S connection (120 ohm) is always enabled. Figure 3-8: DIP Switch Identification A.
  • Page 30 For reference, Cisco offers the following four versions: 1. Pre standard PoE (Online Power) 2. 802.3af-compliant PoE (15W) 3. 802.3at-compliant PoE Plus (PoE+) (25W) 4. Universal PoE (UPoE) (60W). (New Cisco standard, which Cisco claims is compatible with IEEE 802.3af PoE and IEEE 802.3at PoE +) Emerson.com...

  • Page 31: Verify Operations

    If the Gateway has been connected and configured properly, the security alert will be displayed followed by the log in screen. This will need to be done to both the WirelessHART and ISA100 networks. ® Emerson 1410S/781S...
  • Page 32 Join Key information. Once the field devices are powered, they will appear on the wireless network and communications can be verified under the Explore tab using the web interface. The time needed for the network to form will depend on the number of devices. Emerson.com...

  • Page 33: Commissioning

    4.1  Overview This section discusses the installation and setup of the optional software included with the Emerson Wireless Gateway. The following table describes what items are installed and on which disk they can be found. Table 4-1: Software Applications Name...

  • Page 34: Software Installation

    Security Setup Utility. These proxies can function as a data server for other applications on the control network. The Security Setup Utility can support multiple Gateways at once and each proxy can support multiple client application connects. Figure 4-1 shows a typical system architecture using the Security Setup Utility. Emerson.com...

  • Page 35: Ams Wireless Configurator

    • View device diagnostics • View process variables • Provision a wireless device using the drag-and-drop operation so it can join a Gateway’s self-organizing network • Enhance AMS Wireless Configurator functionality with the AMS Wireless SNAP-ON ™ Application Emerson 1410S/781S...

  • Page 36: Licensing And Credits

    Configurator. To display the release notes, navigate to Start → Programs → AMS Wireless Configurator → Help. 4.6  Licensing and credits The latest licensing agreements are included on each disk of the software pack. This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. Emerson.com...

  • Page 37: Operation And Maintenance

    An RS485 connection supports Modbus RTU protocol. Using this connection type, the Gateway is wired to an RS485 bus which typically leads to a serial I/O card or Modbus I/O card (Figure 5-2). Up to 31 Gateways can be connected to a single I/O card in this manner. Emerson 1410S/781S...

  • Page 38: Modbus

    Ensure the Modbus communication settings in the Gateway match the settings in either the Modbus master or the Modbus client. Refer to host system documentation for more information on how to configure these settings. The Modbus communication settings can be found by navigating to System Settings → Protocols → Modbus. Emerson.com...
  • Page 39 Modbus request; only required for Modbus RTU. The value returned by the Gateway if the Modbus master requests Unmapped register read response? a register with no data assigned to it (empty register). To prevent errors, Rosemount recommended this value is set to zero. Emerson 1410S/781S...
  • Page 40 Global scale offset This value is added to the data values for the purpose of scaling integers. If global scaling is not selected, an offset value will be available for each separate data value on the Modbus Mapping page. Emerson.com...

  • Page 41: System Diagnostic Registers With Dual Wirelesshart

    WirelessHART Network 1. To map both WirelessHART network’s system registers, the same variables as SYSTEM_DIAG. can be mapped using the HART Tag in place of xxxx SYSTEM_DIAG. Each network’s HART Tag can be found by navigating to System Settings → Protocols → HART. Emerson 1410S/781S...
  • Page 42 Gateway has been running which can only be mapped with SYSTEM_DIAG and not the individual Network HART Tags. Table 5-1 below shows what variables are Gateway specific. Table 5-1: Gateway specific SYSTEM_DIAG Registers SYSTEM_DIAG.UPTIME SYSTEM_DIAG.TEST_BOOLEAN SYSTEM_DIAG.TEST_BYTE SYSTEM_DIAG.TEST_UNSIGNED_BYTE SYSTEM_DIAG.TEST_SHORT Emerson.com...
  • Page 43 Reference Manual Operation and maintenance 00809-0600-4410 December 2023 (continued) Table 5-1: Gateway specific SYSTEM_DIAG Registers SYSTEM_DIAG.TEST_UNSIGNED_SHORT SYSTEM_DIAG.TEST_INT SYSTEM_DIAG.TEST_UNSIGNED_INT SYSTEM_DIAG.TEST_FLOAT SYSTEM_DIAG.DEFAULT_PASSWORD Emerson 1410S/781S...
  • Page 44 Operation and maintenance Reference Manual December 2023 00809-0600-4410 Emerson.com...

  • Page 45: Chapter 6 Troubleshooting

    December 2023 6  Troubleshooting 6.1  Service support This section provides basic troubleshooting tips for the Emerson Smart Wireless Field Network. To receive technical support by phone: Global Service Center Software and Integration support United States - 1 800 833 8314 International - 63 2 702 1111...

  • Page 46: Initial Connection: Cannot Find Gateway After Changing Ip Address

    1. Verify the Security Setup Utility is installed on the same PC as AMS Wireless Configurator. 2. Setup a wireless network interface using the Network Configuration application. 3. Verify the wireless network interface is configured for secure Gateway communications. Emerson.com...

  • Page 47: Ams Wireless Configurator: Wireless Devices Do Not Appear Under The Gateway

    HART symbol ® Possible cause: Non-current device support files Recommended actions 1. Navigate to Emerson's AMS Device Manager product page. 2. Install latest device support files from AMS Wireless Configurator. 6.9  AMS Wireless Configurator: Device configuration items are grayed out...

  • Page 48: Wireless Field Devices: Wireless Device Does Not Appear On The Network

    Modbus Host settings. b) Log on to the Gateway and navigate to SETUP → MODBUS →  COMMUNICATIONS. 4. Verify the Modbus address for the Gateway. 5. Verify Modbus register mapping in the Gateway. a) Log on to the Gateway and navigate to SETUP →  MODBUS → MAPPING. Emerson.com...

  • Page 49: Modbus Communications: Cannot Communicate Using Modbus ® Tcp

    4. Verify the Modbus TCP communications settings in the Gateway. a) Log on to the Gateway. b) Navigate to SETUP →  MODBUS → COMMUNICATIONS. 5. Verify Modbus register mapping in the Gateway. a) Log on to the Gateway. b) Navigate to SETUP →  MODBUS → MAPPING. Emerson 1410S/781S...

  • Page 50: Opc Communications: Opc Application Cannot Find A Gateway Opc Server

    3. Check to ensure the OPC proxy is configured for secure or unsecure communications. 4. Verify secure/unsecure OPC protocol settings in the Gateway. a) Log on to the Gateway. b) Navigate to SETUP → SECURITY → PROTOCOLS. 5. Verify network firewall and port settings. Emerson.com...

  • Page 51: Ethernet/Ip ™ : Gateway Is Not Publishing The Parameters

    To expedite the return process outside of North America, contact your Emerson representative. Within the United States, call the Emerson Response Center toll-free number 1 800 654 7768. The center, which is available 24 hours a day, will assist you with any needed information or materials.
  • Page 52 Troubleshooting Reference Manual December 2023 00809-0600-4410 Emerson.com...

  • Page 53: Appendix A Reference Data

    December 2023 A  Reference data A.1  Ordering information, specifications, and drawings To view current Emerson 1410S and 781S ordering information, specifications, and drawings, follow these steps: Procedure 1. Navigate to the product page for Emerson 1410S and 781S. 2. Scroll as needed to the green menu bar and click Documents & Drawings.
  • Page 54 Reference data Reference Manual December 2023 00809-0600-4410 Emerson.com...

  • Page 55: Appendix B Redundant Gateway Systems

    B.1  Overview Redundancy for the Emerson Wireless 1410S Gateway increases the availability of the wireless field network by providing two sets of physical hardware which operate as a single Gateway system. This section covers setup and installation of a redundant Gateway system.
  • Page 56 Gateway on the left hand side and Gateway B will be the standby Gateway on the right. If significant configuration changes need to be downloaded to the standby Gateway, it may temporarily go offline shortly after the pair process is complete. This is expected behavior and does not represent instability in the system. Emerson.com...
  • Page 57 Reference Manual Redundant Gateway systems 00809-0600-4410 December 2023 Figure B-2: Redundant Pair Figure B-3: Pairing Gateways Emerson 1410S/781S...
  • Page 58 Mount the Emerson 1410S Gateway in a location allowing convenient access to the process control network while providing good coverage for the wireless field network. Mount the two Emerson 781S Smart Antennas at the same height and ensure they are spaced between 3–9 ft. (1–3 m) horizontally. This spacing ensures they provide identical coverage for the wireless field network and to help eliminate a coverage gap in the event of a switch over.

  • Page 59: Diagnostics

    Redundancy Status page as well as how they can be mapped as parameters in Modbus or OPC. Table B-1: Redundancy Diagnostics Parameter Description Data type REDUNDANT_HEALTHY Overall redundancy status indicating the system Boolean is ready for a switch-over Emerson 1410S/781S...
  • Page 60 Gateway should be set to the active Gateway. To configure network connectivity check: 1. Navigate to System Settings → Gateway → Ethernet Communication. 2. Enter the host system IP address in the Check Network Connectivity IP Address field. 3. Select Save Changes. Emerson.com...

  • Page 61: Gateway Replacement

    If the Gateway is new or has been set to default configuration, it will need to be paired to the current active Gateway. Navigate to System Settings → Gateway → Redundancy and follow the recommended actions on that page or follow Connect Gateways to pair Gateways and form a redundant system. Emerson 1410S/781S...
  • Page 62 Redundant Gateway systems Reference Manual December 2023 00809-0600-4410 Emerson.com...

  • Page 63: Appendix C Dual Mode (Wirelesshart ® And Iec 62734) Network Specifications

    Gateway has integrated intrinsically safe barriers. These barriers are intended for Emerson 781S Smart Antenna installation in Class 1 Div 1 or Zone 0 areas. If dual mode and this installation are required, purchasing separate intrinsically safe barriers to use with the dual mode Gateway is recommended.

  • Page 64: Iec 62734 Device Support

    If a device is considered a “router device” then it is communicating through it’s neighbors like a WirelessHART device. All published data from the device can also be viewed through this page. Emerson.com...
  • Page 65 Reference Manual Dual mode (WirelessHart and IEC 62734) network specifications ® 00809-0600-4410 December 2023 Figure C-3: Detailed Device Information Page Emerson 1410S/781S...
  • Page 66 Dual mode (WirelessHart and IEC 62734) network specifications Reference Manual ® December 2023 00809-0600-4410 Emerson.com...

  • Page 67: Appendix D Deltav ™ Ready

    ™ Version 10.3 or newer. Gateway DeltaV Ready option (Data Protocol option 5). Refer to the Ordering information available in the Emerson Wireless 1410S Gateway with 781S Smart Antenna Product Data Sheet. D.4  Mounting the Gateway Mount the DeltaV Ready Gateway in the same manner as a standard Gateway.

  • Page 68: Setup

    In the ™ DeltaV Explore application, the Gateway will automatically appear in the Decommissioned Nodes folder. D.5.1  Setup a wireless network Procedure 1. Commission the Gateway. 2. Assign wireless device tags. 3. Assign the Gateway to the controller and download. Emerson.com...
  • Page 69 2. Repeat this process for each wireless device until all have been assigned. 3. Selet OK to continue. D.5.4  Assign the gateway to a DeltaV controller ™ Procedure 1. Right click on the Gateway and select Assign... 2. Use the browse window and select the desired controller. Emerson 1410S/781S...
  • Page 70 Logging in to the Gateway is not possible using the default TCP/IP network setting. If the Gateway is decommissioned, use an IP address 10.5.255.254. If the Gateway is commissioned, right click on the Gateway in DeltaV Explore and select Wireless Gateway Web Interface. Emerson.com...

  • Page 71: Appendix E Dual Wirelesshart ® Feature Guide

    Gateway must be running Version 6.7.5 firmware or later. An option file enables the feature on the Gateway which must be purchased from the factory. Please reach out to your local Emerson representative for purchasing your option file. Gateway firmware upgrades are available free of charge on our...
  • Page 72 This can take some time depending on the network. If momentary loss of data from your network cannot be tolerated, please schedule this installation at a time that can tolerate a network restart. Emerson.com...
  • Page 73 Reference Manual Dual WirelessHART Feature Guide ® 00809-0600-4410 December 2023 Figure E-2: Upgrade Current Features Field for Installing an Option File Emerson 1410S/781S...

  • Page 74: Dual Wirelesshart ® Operation Guide

    Device tags must be unique between the two networks. The Gateway web interface will prompt if there are duplicate tags as shown in Figure E-5. When two devices have the same tag name, variable mapping can be unclear on which device is being mapped. Emerson.com...
  • Page 75 Network ID. The Gateway web interface will alert if the two networks have the same Network ID and will not save the configuration if the Network ID is not unique. Figure E-6: Network Settings Page for Network 1. Similar page can be found on Network 2 Emerson 1410S/781S...
  • Page 76 Ethernet port. In this configuration, both networks have unique IP addresses and port number assignments. For all other Ethernet communication protocols (e.g., Modbus TCP, Ethernet-IP, OPC-UA), both Network’s data will be communicated through a single port. Wireless HART Enabled Figure E-7: Protocols and Ports Page with Dual Emerson.com...
  • Page 77 Gateway name for Network 1 as the ethernet protocol hostname and adds a “1” to the end of the ethernet protocol hostname for Network 2. See the following figure for how the settings page and the ethernet protocol hostname box checked. Figure E-8: Gateway Name Set-Up Page Emerson 1410S/781S...
  • Page 78 Emerson Terms and Conditions of Sale are available upon request. The Emerson logo is a trademark and service mark of Emerson Electric Co. Rosemount is a mark of one of the Emerson family of companies. All other marks are the property of their respective owners.
